ZEB-H610M2 - LGA 1700 Socket

Sale price₹ 14,999
5.0

Product Type: Motherboards

Specifications


Supported CPU Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th & 13th generation series processor in LGA 1700

Chipset
Intel H610 Chipset

Memory Supported
2 no's DDR4 Memory slots
Memory up to 64GB
Supports  DDR4 2133/2666/3200 MHz memory

BIOS AMI BIOS

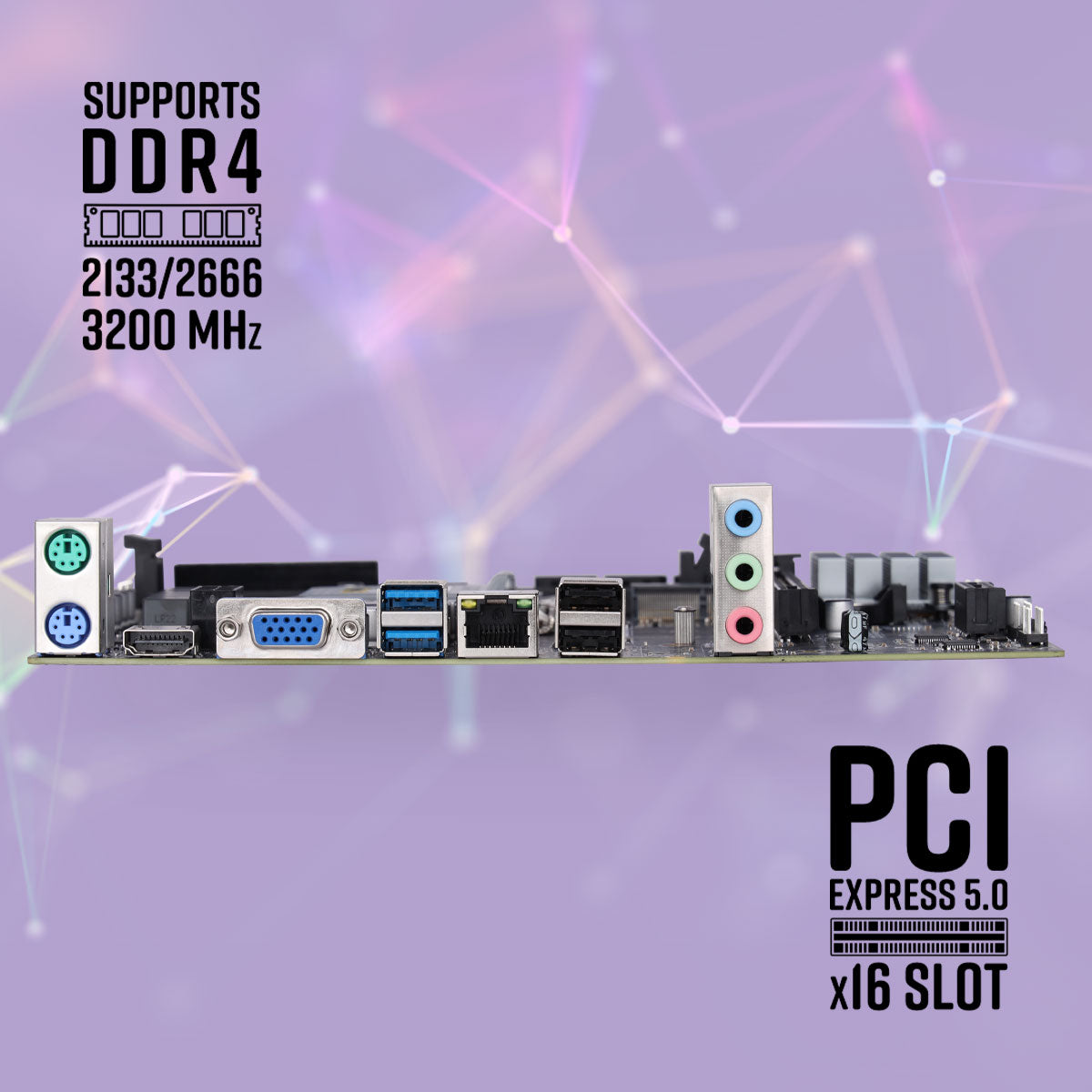

I/O Interface
1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port,
1 x RJ45 Port, 1 x 3-in-1 Audio - 5.1 audio, 1 x PS/2 keyboard port and
1 x PS/2 Mouse port

Onboard Interface 1x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector
1 x USB 3.0 header, 1 x USB 2.0 header,1 x Front Audio Connector
3 x SATA 3.0, 1 x COM pin, 1 x Front Panel connector
1 x 4 pins CPU FAN, 1 x 4 pins SYS FAN.

ntegrated Sound
With 5.1-Channel  Audio

Integrated LAN
Supports RTL8111G 10/100/1000 Mbps Ethernet LAN

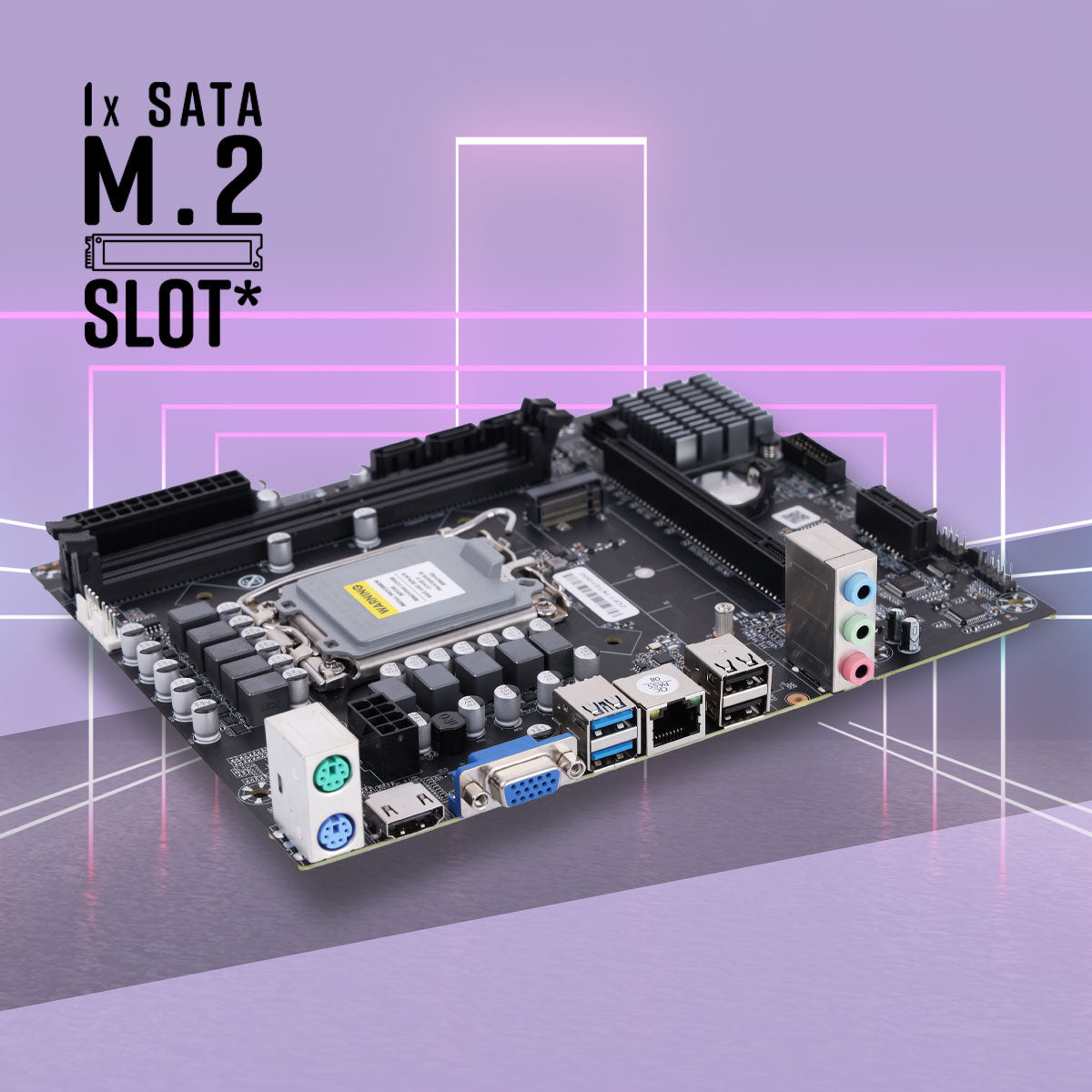

Expansion Slot 1 x PCI Express 5.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot, 1 x SATA M.2 Slot*

Form Factor Micro-ATX

Country of Origin People’s Republic of China


Package contents


ZEB-H610 Motherboard
1 U

SATA Cable
1 U

I/O Backplate
1 U

Driver Disc
1 U

User Manual
1 U




*not compatible with NVMe
