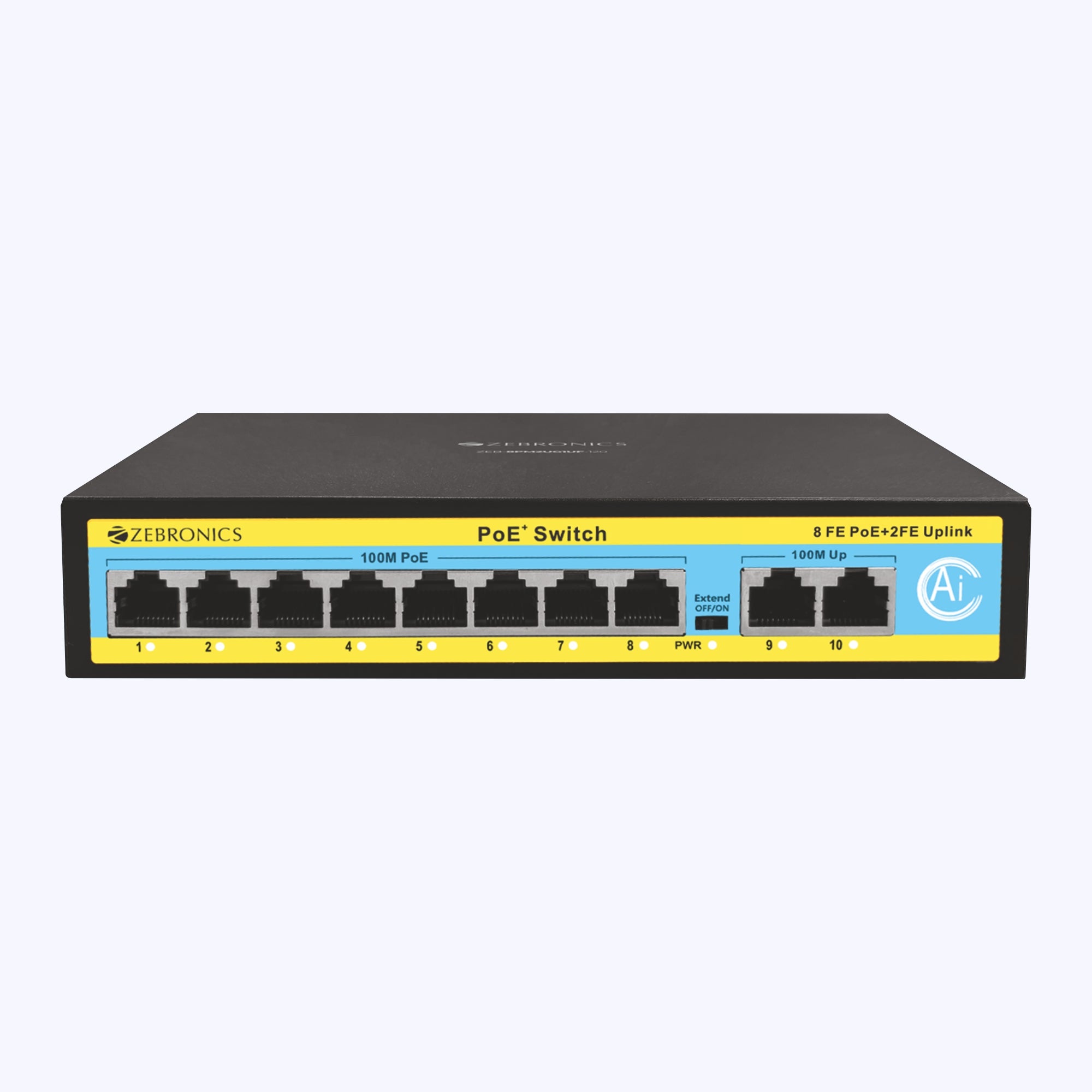

Zeb 8PM2UM 120 - 8 Port POE Switch
New
Inclusive of all taxes
- 8 Self Adaptive PoE Ports
- Dual Megabit Uplink Ports
- 120W Output (Max.)
- Upto 30W Per Port
- AI Watchdog Function
- High Data Rate
- Wide Compatibility
- Short Circuit Protection
- Anti Interference Capability
- Lightning and Surge Protection
- Dynamic Power Control
Product Type: Unmanaged POE
Zeb 8PM2UM 120 - 8 Port POE Switch
Sale price₹ 4,199.00
Features
| 8 Self Adaptive PoE Ports |
|
| Dual Megabit Uplink Ports |
|
| 120W Output (Max.) |
|
| Upto 30W Per Port |
|
| AI Watchdog Function |
|
| High Data Rate |
|
| Wide Compatibility |
|
| Short Circuit Protection | |
| Anti Interference Capability | |
| Lightning & Surge Protection | |
| Dynamic Power Control |
Specifications
| Connector Type | 8 Ports 100M PoE + 2 Ports 100M Ethernet Uplink | |
| Network Protocols | IEEE802.3/802.3u, IEEE802.3x | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| Network Media | 10BASE-T: <250 meters 100BASE-TX: <100 meters |
|
| Power Supply |
Input: AC100-240V, 50/60Hz Output: 30W Per Port Power Budget: 120W |
|
| Performance Specification |
Bandwidth: 2 Gbps MAC: 1K Packet Buffer Memory: 1Mbits 10M Packet Forwarding Rate: 14880pps/port 100M Packet Forwarding Rate: 148800pps/port |
|
| LED Indicator |
Power (Red): Lit - Powered, Unlit - No Power Ethernet (Green) : Flash - Data Transmit, Unlit - Disconnect |
|
| Working Environment |
Operating Temperature: -10°C ~ 55°C Storage Temperature: -20°C ~ 70°C Operating Humidity: Max 20 ~ 95% (Non-condensation) Storage Humidity: Max 20 ~ 95% (Non-condensation) |
|
| Physical Parameter | Product Dimension (W x D x H) : 19 x 12.5 x 3.8 cm Package Dimension: (W x D x H) : 20 x 19.6 x 4.8 cm Net. Weight: 595g |
|
| Transmission Distance | Data Transmission Distance: 250 (Max.) PoE distance upto 250 meters with 10M via Cat.6 |
|
| Port Surge Protection | 6KV | |
| Forwarding Mode |
Store and forward |
|
| Country of Origin | PRC | |
| Package Contents | ||
| Ethernet Switch |
1 U | |
| Power Cord |
1 U | |
| QR Code Guide |
1 U |
LEGAL METROLOGY PRODUCT INFORMATION
| Imported & Marketed by: | |
| Country of Origin: | |
| Generic Name: | Zebronics POE Switch |
| Package Contents: | Ethernet Switch - 1U, Power Cord - 1U, QR Code Guide - 1U |
| Customer Complaints: | Telephone - 044-4000 0004 | Email - enquiry@zebronics.com |
