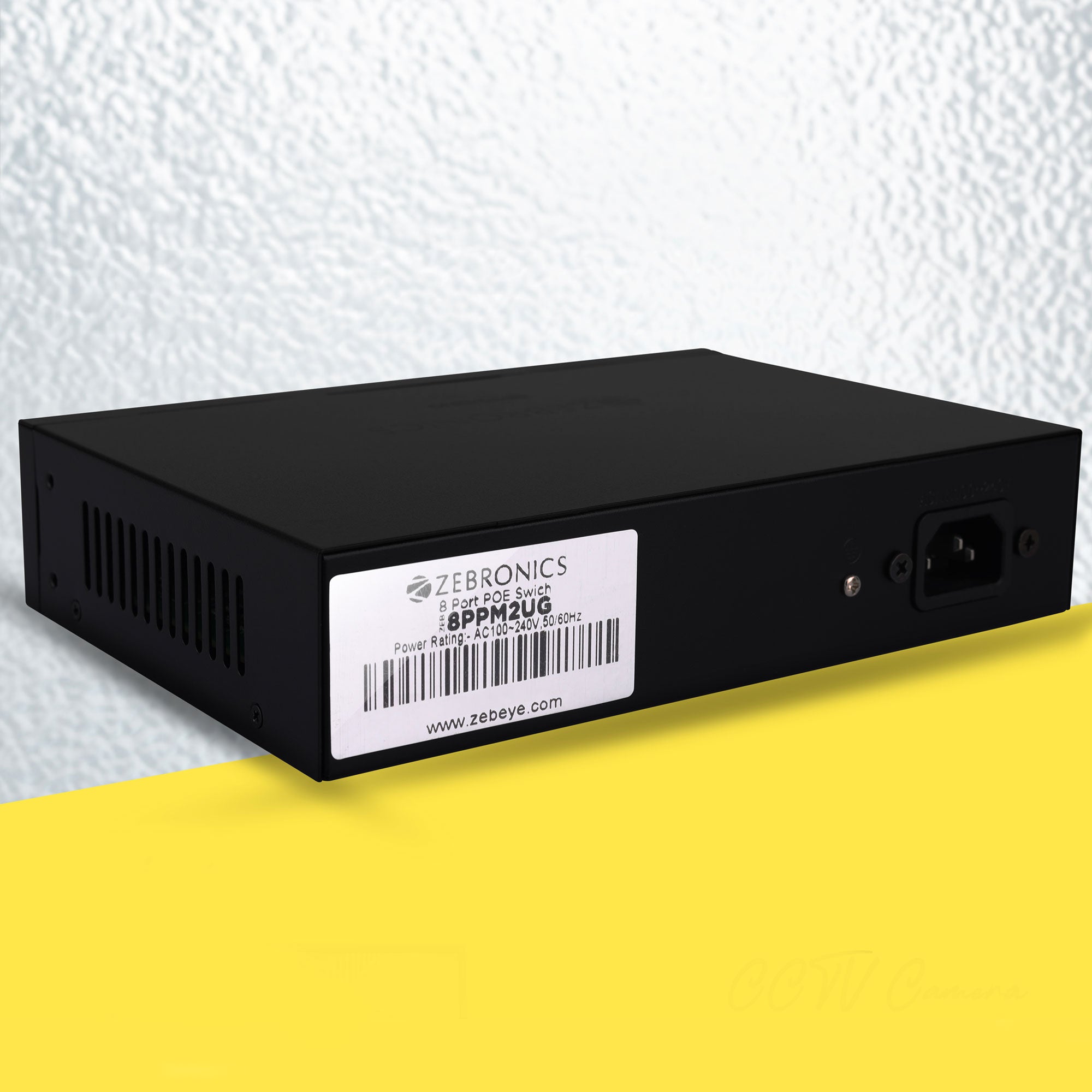

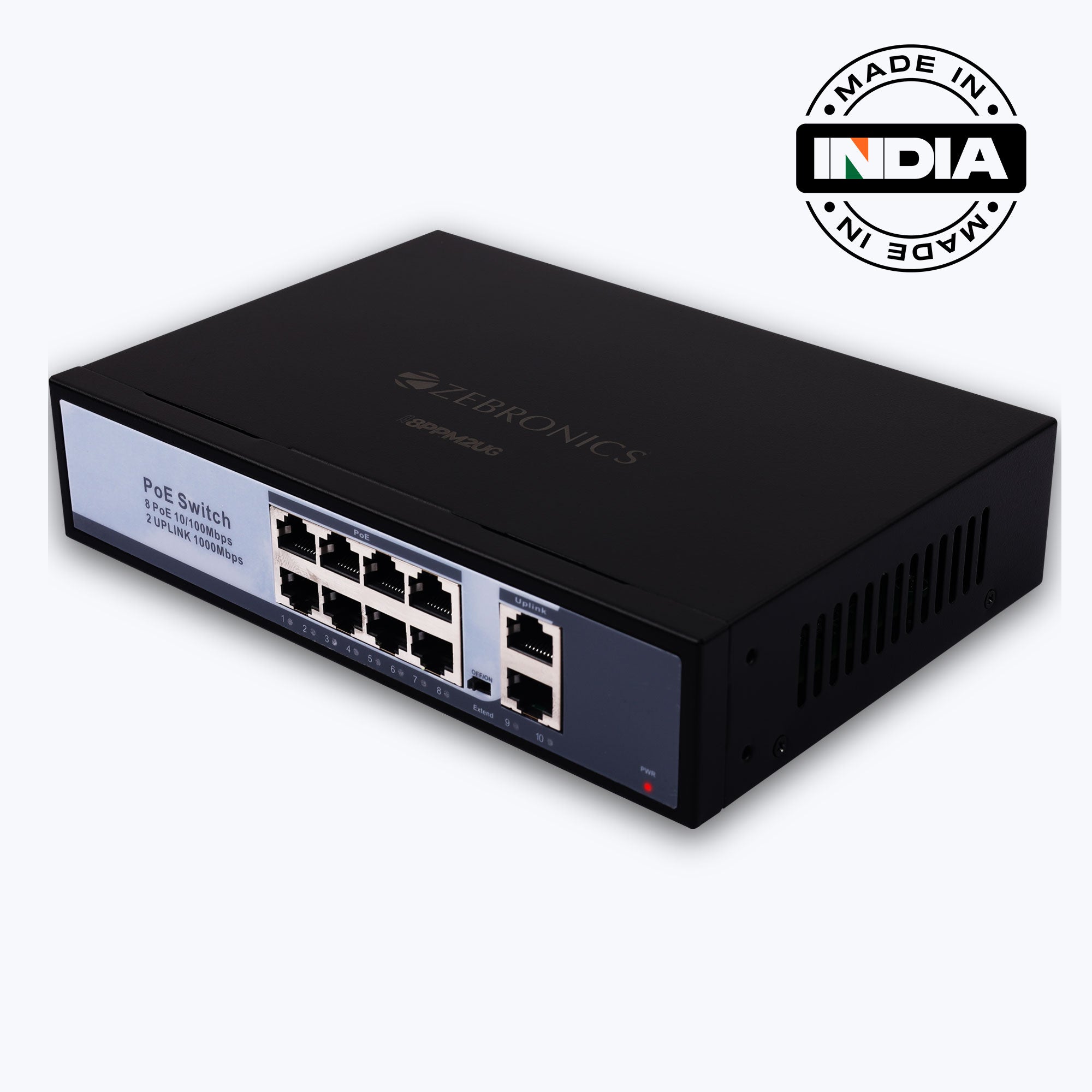

Zeb 8PPM2UG - 8 Port POE Switch

New
Sale price₹ 6,799.00

Inclusive of all taxes


  • Dual Gigabit Uplink Ports
  • 250m Extended Transmission (Max.)
  • 120W Output (Max.)
  • Upto 30W Per Port
  • Full Duplex
  • High Data Rate
  • Wide Compatibility
  • Flexible Mounting
  • Dynamic Power Control
  • Short Circuit Protection
  • Voltage Protection
  • Anti Interference Capability
  • Lightning Protection
Product Type: Unmanaged POE

Features



Dual Gigabit Uplink Ports

250m Extended Transmission (Max.)

120W Output (Max.)

Upto 30W Per Port

Full Duplex

High Data Rate

Wide Compatibility

Flexible Mounting

Dynamic Power Control

Short Circuit Protection

Voltage Protection

Anti Interference Capability

Lightning Protection



Specifications


Connector Type 8 Ports 10/100M PoE + 2 Ports 1000M Ethernet Uplink

Network Protocols IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

PoE Parameters PoE Standard: IEEE802.3af/at (15.4W) & IEEE802.3at (30W)
PoE Compatibility: IEEE802.3af/at Self Adaptive
Power Pin Assignment : MODE A   [1/2(+), 3/6(-)]

Network Media 10BASE-T: (<200 Meters)
100BASE-TX: (<100 Meters)

Power Supply
Input: AC110-240V, 50/60Hz
Output: 30W Per Port
Power Budget: 120W

Performance Specification
Bandwidth: 5.6Gbps
MAC: 2K
Packet Buffer Memory: 1 Mbits
10M Packet Forwarding Rate: 14880pps/port
100M Packet Forwarding Rate: 148800pps/port
1000M Packet Forwarding Rate: 148800pps/port

LED Indicator
Power (Red): Lit - Powered, Unlit - No Power
Ethernet : Flash - Data Transmit, Unlit - Disconnect

Working Environment
Operating Temperature: 25°C ~ 50°C
Storage Temperature: 20°C ~ 70°C
Operating Humidity: Max 15 ~ 90%, Non-Condensing
Storage Humidity: Max 10 ~ 95%, Non-Condensing

Physical Parameter Product Dimension (W x D x H) : 20.2 x 14 x 4.5 cm
Package Dimension: (W x D x H) : 23.5 x 20 x 7 cm
Net. Weight: 1.05 Kg

Transmission Distance Data Transmission Distance: 250 (Max.)
PoE distance upto 100 meters with 10m via Cat.6

Switching Capacity 2 Gbps

Port Surge Protection 6KV

Forwarding Mode
Store & Forward

Country of Origin India

Package Contents

Ethernet Switch
1U

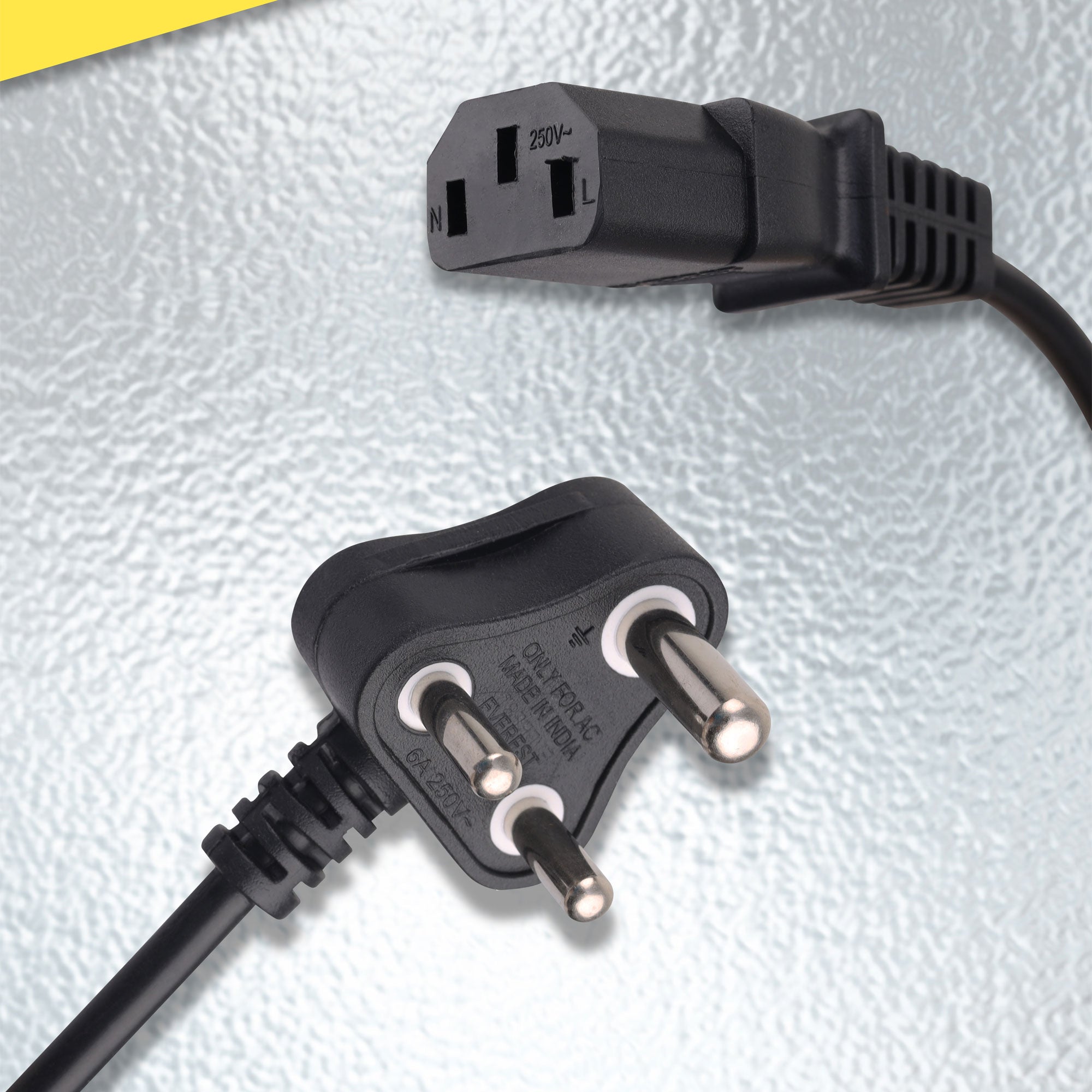

Power Cord
1U

QR Code Guide
1U
