Zeb 9PPM2UM
New
Inclusive of all taxes
- 9 Self Adaptive PoE Ports
- Dual 100M Uplink Ports
- 150W Output (Max.)
- Upto 30W Per Port
- Full Duplex
- High Data Rate
- Wide Compatibility
- Dynamic Power Control
- Short Circuit Protection
- Voltage Protection
- Anti Interference Capability
- Lightning Protection
- With Extender Switch
Product Type: Unmanaged POE
Zeb 9PPM2UM
Sale price₹ 5,999.00
eatures
| 9 Self Adaptive PoE Ports | |
| Dual 100M Uplink Ports | |
| 150W Output (Max.) | |
| Upto 30W Per Port | |
| Full Duplex | |
| High Data Rate | |
| Wide Compatibility | |
| Dynamic Power Control | |

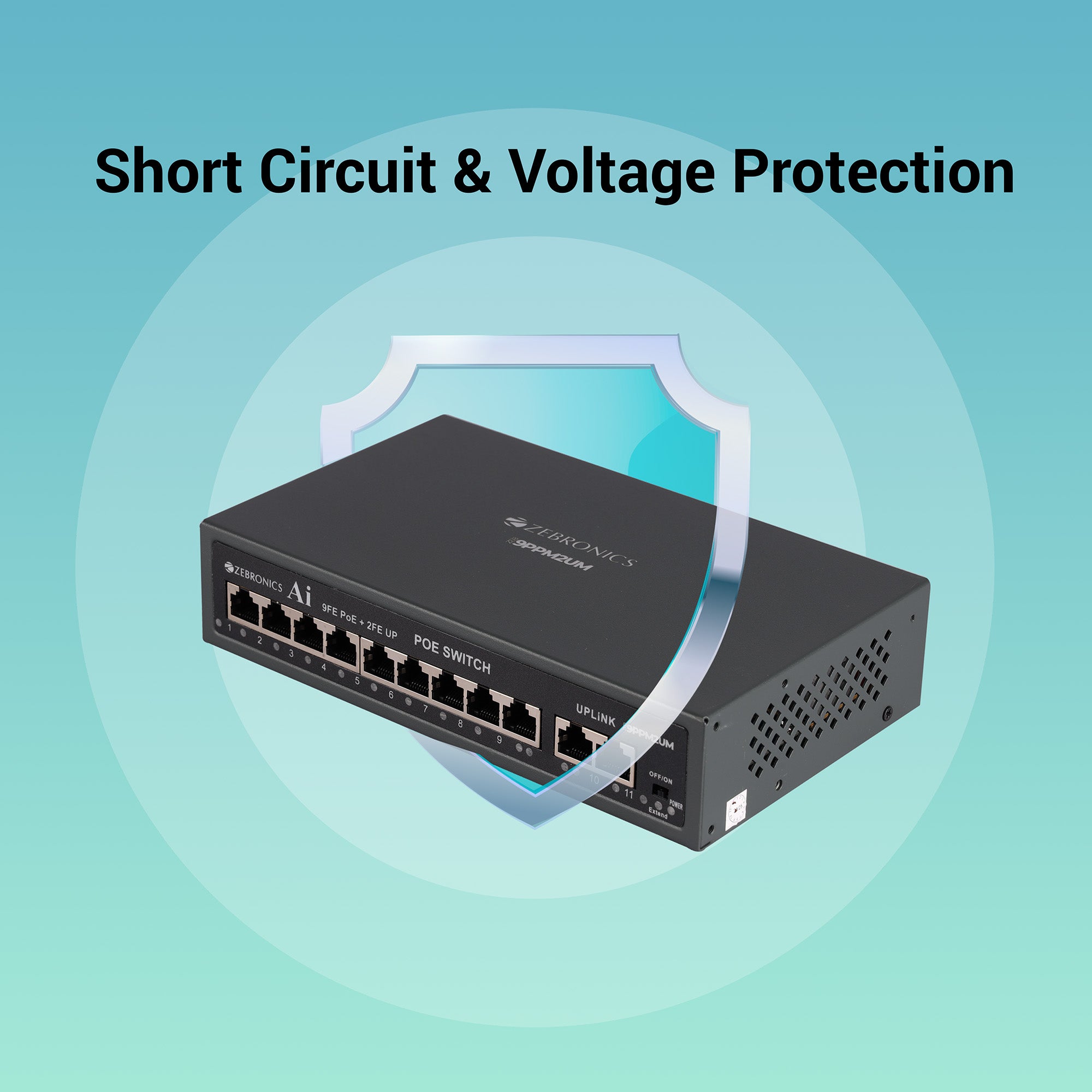

| Short Circuit Protection | |
| Voltage Protection | |
| Anti Interference Capability | |
| Lightning Protection | |
| With Extender Switch |
Specifications

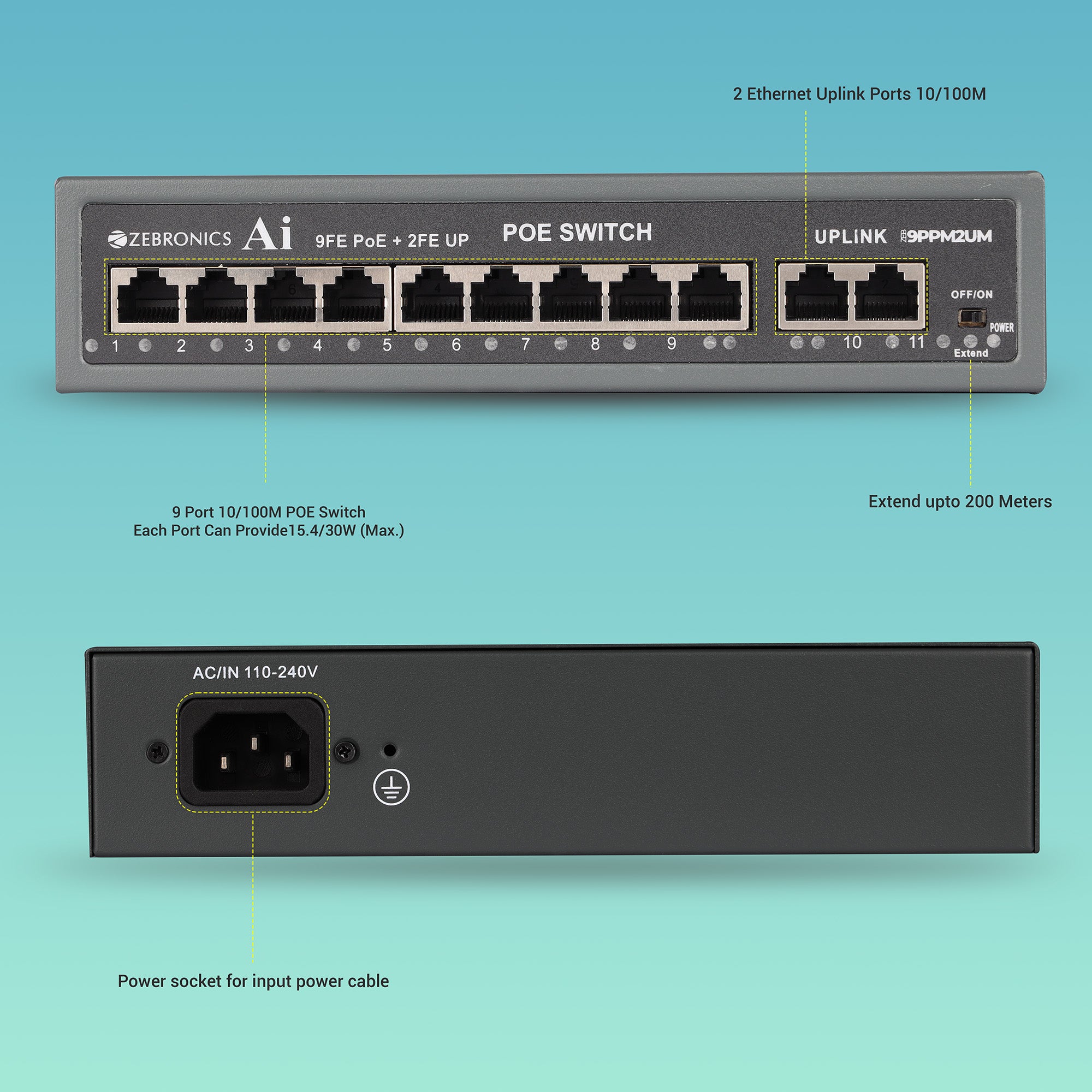

| Connector Type | 9 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive |
|
| Network Media | 10BASE-T: <200 Meters 100BASE-TX: <90 Meters |
|
| Power Supply | Input: AC100-240V, 50/60Hz Output: 30W Per Port Power Budget: 150W |
|
| Performance Specification | Bandwidth: 2Gbps MAC: 1K Packet Buffer Memory: Internal Cache - 448 Kbits 10M Packet Forwarding Rate: 14880pps/port 100M Packet Forwarding Rate: 148800pps/port |
|
| LED Indicator | Power (Red): Lit - Powered, Off - No Power Ethernet : Flash - Data Transmit, Off - Disconnect |
|
| Working Environment | Operating Temperature: -10°C ~ 55°C Storage Temperature: -40°C ~ 85°C Operating Humidity: Max 10 ~ 90%, Non-Condensing Storage Humidity: Max 5 ~ 95%, Non-Condensing |
|
| Physical Parameter | ||
| Product Dimension (W x D x H) |
20 x 11.8 x 4.5 cm | |
| Net. Weight |
680g | |
| Transmission Distance | Data Transmission Distance: 200m (Max.) PoE distance upto 200meters with 10M via Cat.6 |
|
| Switching Capacity |
2 Gbps | |
| Port Surge Protection | 6KV | |
| Forwarding Mode | Store-&-Forward Switching | |

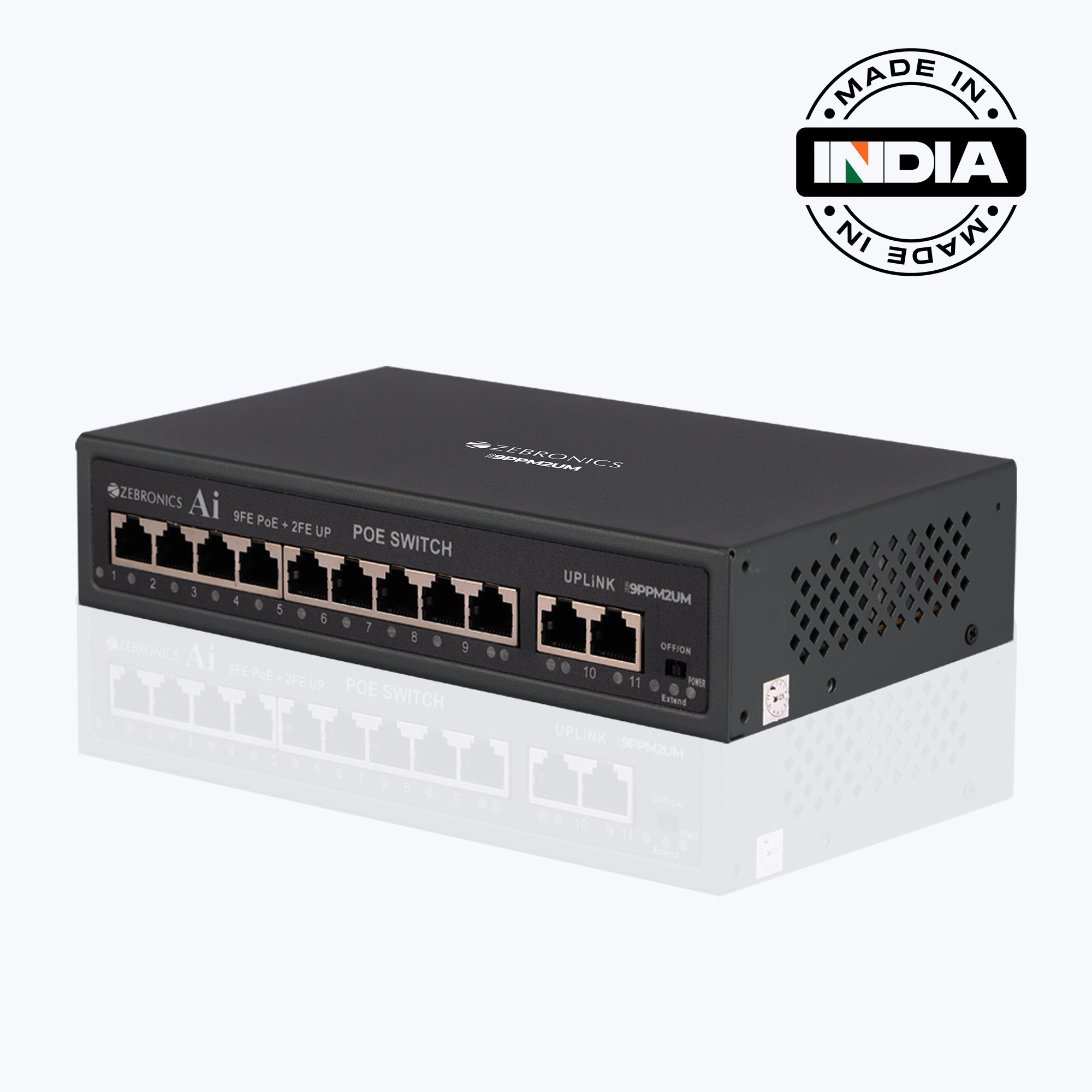

| Country of Origin | India |
|
| Package Contents | ||
| Ethernet Switch | 1U | |

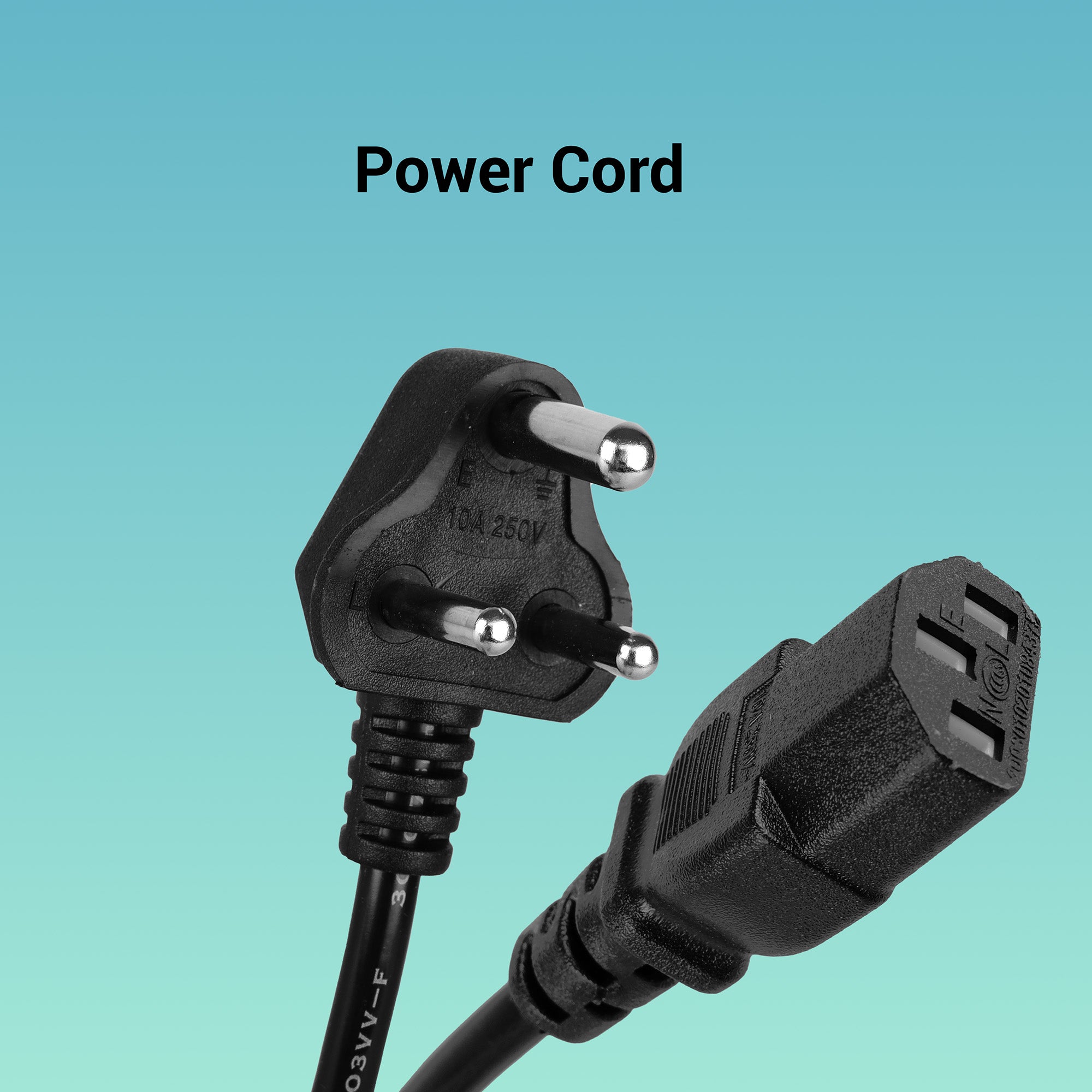

| Power Cord | 1U | |
| QR Code Guide |
1U |
LEGAL METROLOGY PRODUCT INFORMATION
| Manufactured & Marketed by: | |
| Country of Origin: | |
| Generic Name: | Zebronics POE Switch |
| Package Contents: | Ethernet Switch - 1U, Power Cord - 1U, QR Code Guide - 1U |
| Customer Complaints: | Telephone - 044-4000 0004 | Email - enquiry@zebronics.com |
