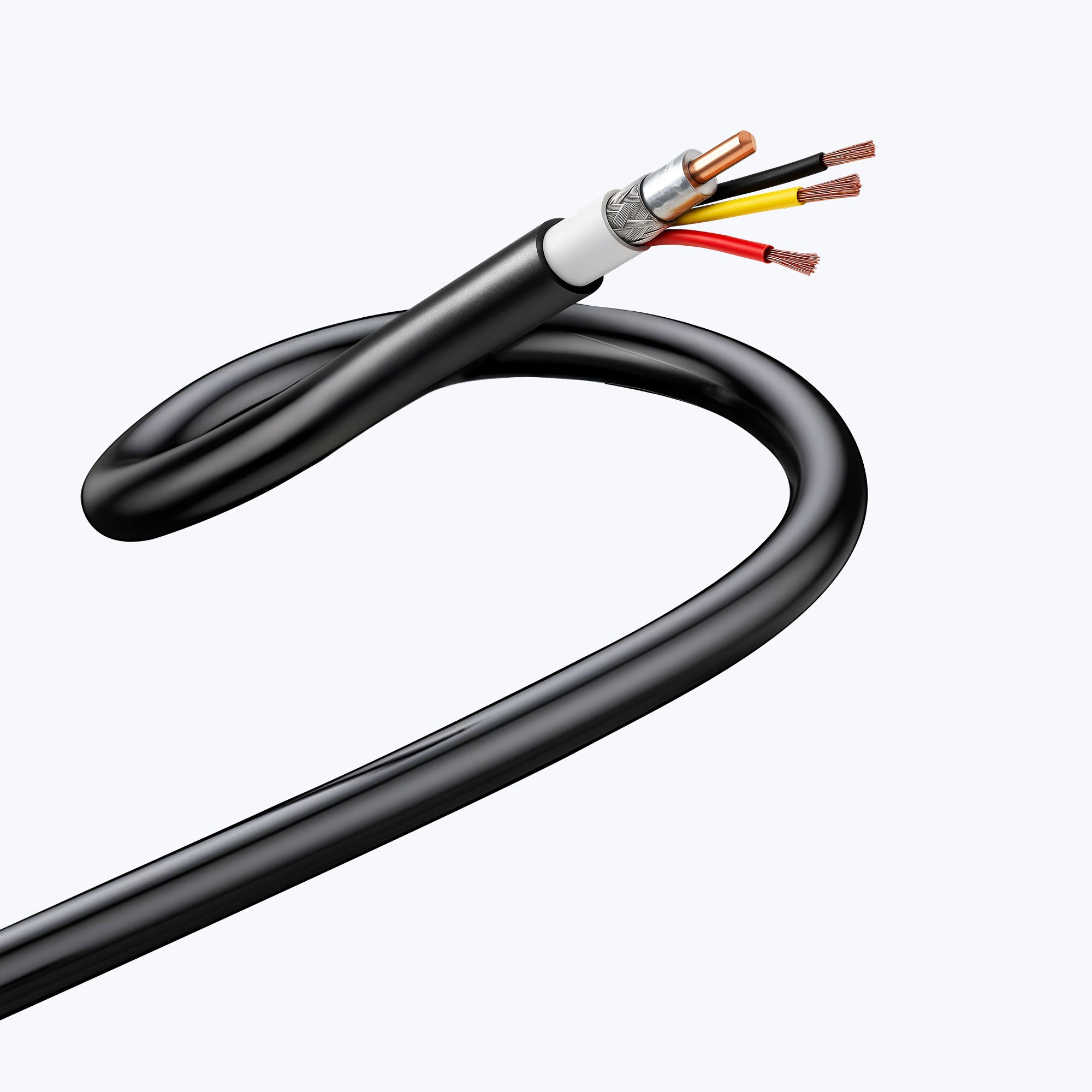

Zeb C3C1XAB-OD2-180M-PRIME
New
Inclusive of all taxes
- Heavy Duty cable
- 3+1
- 180 meter
- Solid Copper
- Double Jacket Design
- Outdoor Use
Product Type: CAT 6 Cables
Zeb C3C1XAB-OD2-180M-PRIME
Sale price₹ 4,299.00
Specifications
| Model Name | ZEB-C3C1XAB-OD2-180M-PRIME | |
| Length of the cable | 180M | |
| Inner cable (Single strand core) Material | SOLID COPPER | |
| Inner cable (Single strand core) Gauge as per AWG | 24 AWG | |
| Inner cable (Single strand core) dia in mm | 0.500MM±0.02mm | |
| Inner cable (Single strand core) Resistance per meter |
≈ 0.086 Ω/m | |
| Sleeve Conductor Material /COAXIAL BRAIDING | aluminium alloy | |
| Sleeve Conductor Resistance per meter | ≈ 0.079 Ω/m | |
| Shielding Used (Material)/ IN COAXIAL VIDEO | al. mylar tape | |
| Gauge of the combined strands of the 3 cores | ||
| Red | ≈ 0.0871 sqmm | |
| Black | ≈ 0.0871 sqmm | |
| Yellow | ≈0.0871 sqmm | |
| No. of strands of the 3 cores | ||
| Red | 14 | |
| Black | 14 | |
| Yellow | 14 | |
| Diameter of a single strand in the 3 cores | ||
| Red | 0.089mm±0.005mm | |
| Black | 0.089mm±0.005mm | |
| Yellow | 0.089mm±0.005mm | |
| Resistance per meter in the 3 cores | ||
| Red | ≈ 0.193 Ω/m | |
| Black | ≈ 0.193 Ω/m | |
| Yellow | ≈ 0.193 Ω/m | |
| Loop Resistance one power core 100 m | ≈ 39Ω | |
| Capacitance Between Inner & Outer Conductor of coaxial | ≈ 65-70 pF/m | |
| Operation temperature | -5°C to 65°C | |
| Storage Temperature | -10°C to 65°C | |
| Insulation material (power cores) | LDPE | |
| Inner Insulation Jacket/ sheath | PVC | |
| Outer Insulation Jacket/sheath | LDPE | |
| Package Contents | ||
| Cable | 180 Meter x 1 U |
LEGAL METROLOGY PRODUCT INFORMATION
| Manufactured & Marketed by: | |
| Country of Origin: | |
| Generic Name: | Zebronics CCTV Network Cable |
| Package Contents: | Cable - 180 Meter x 1 U |
| Customer Complaints: | Telephone - 044-4000 0004 | Email - enquiry@zebronics.com |
