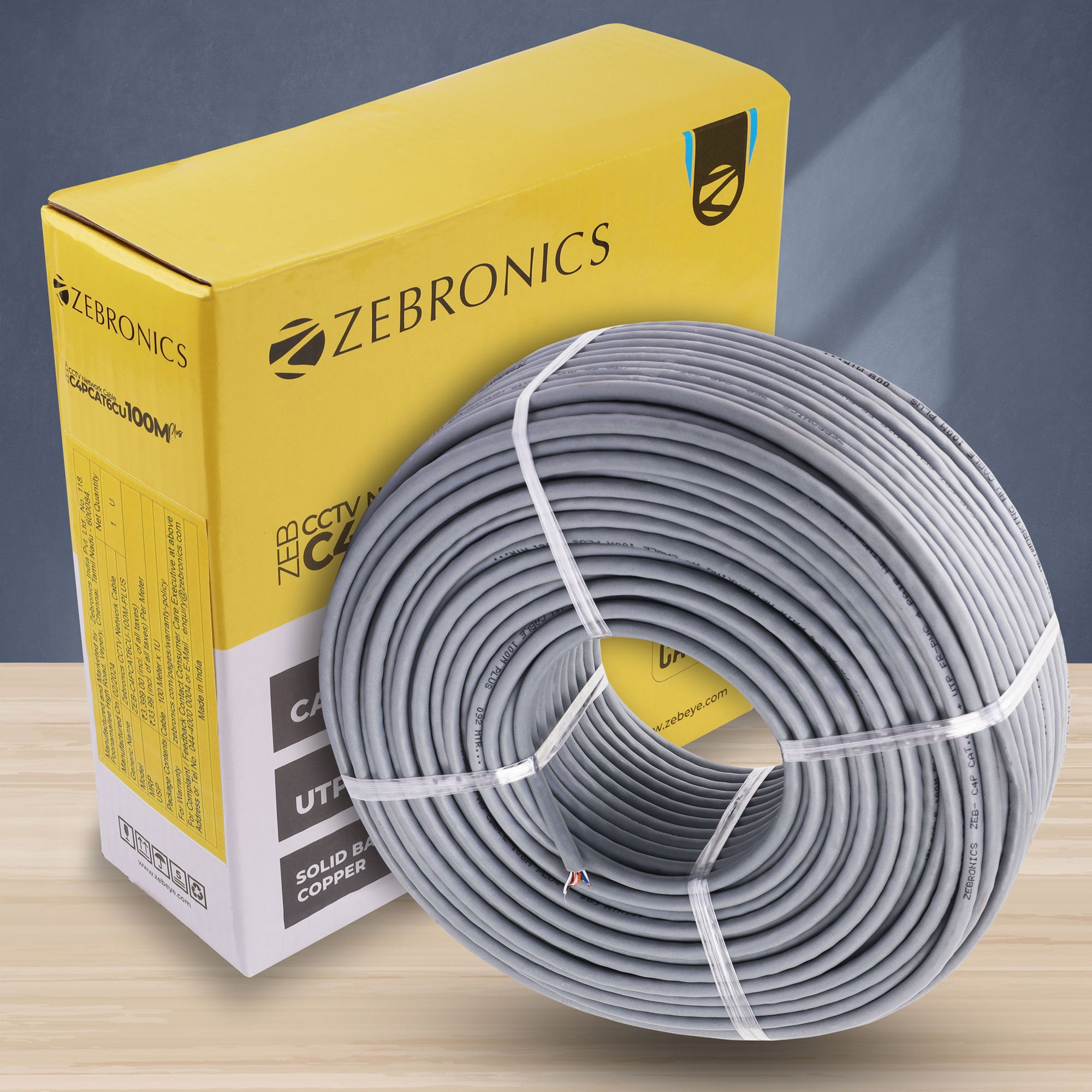

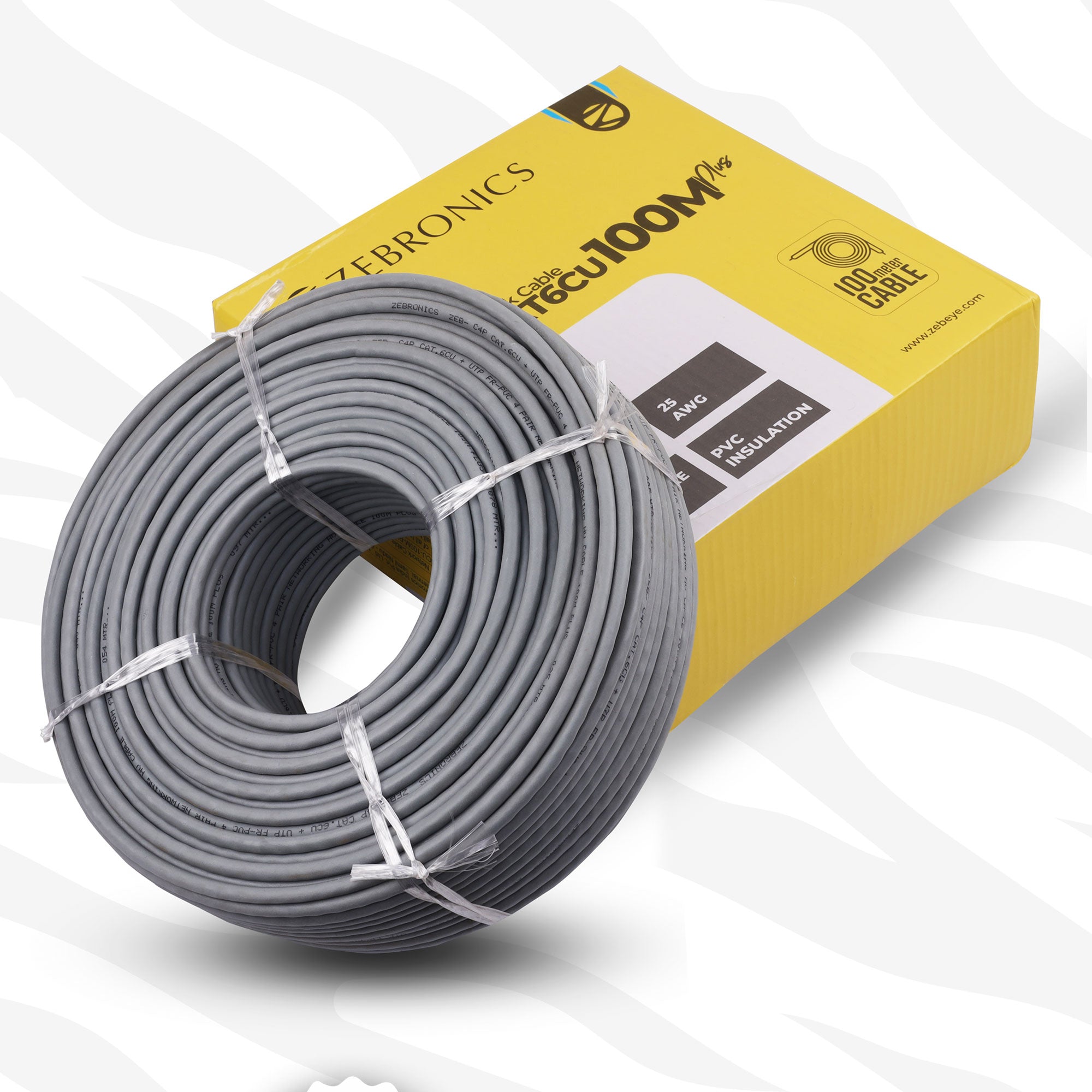

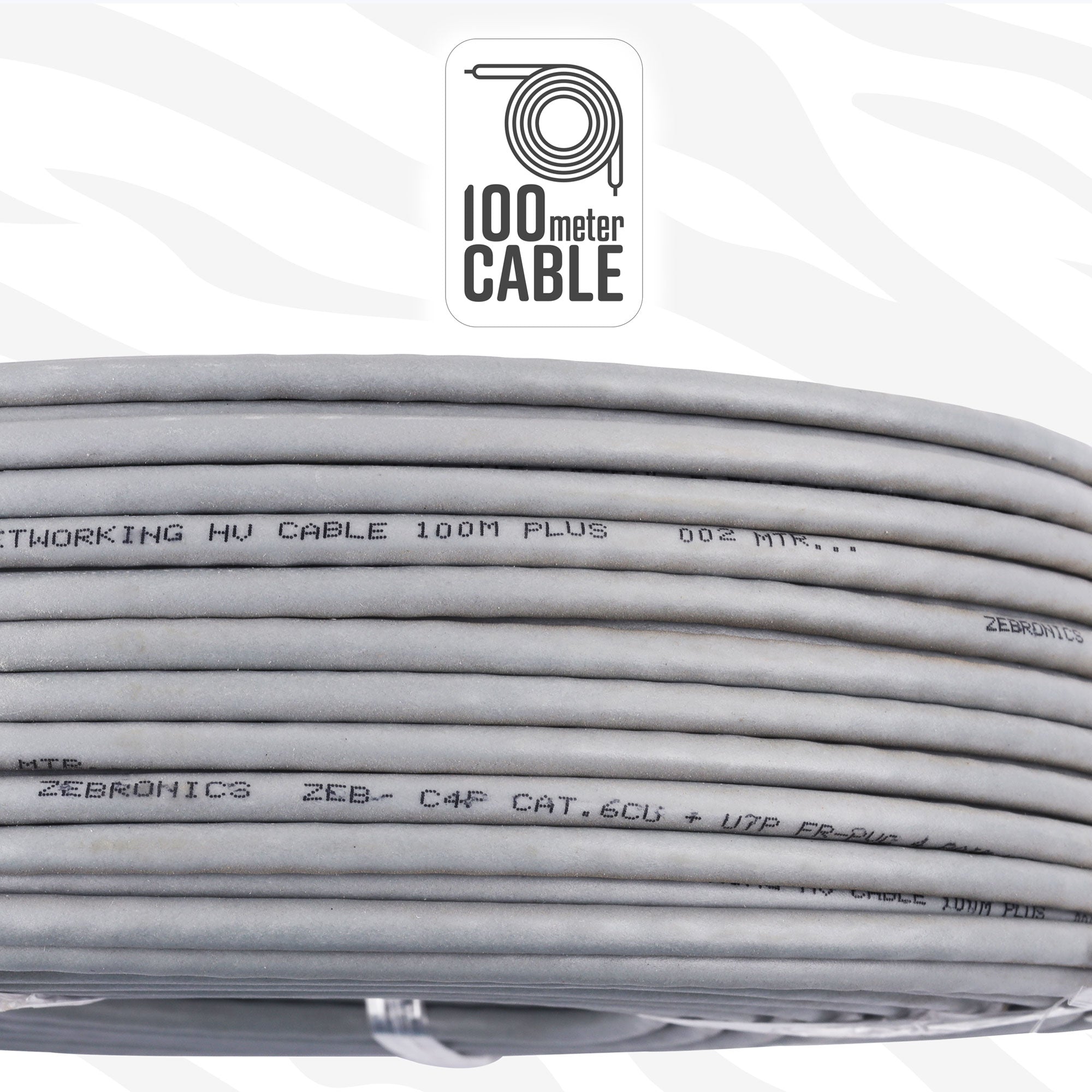

Zeb C4PCAT6CU-100M-PLUS
Inclusive of all taxes
Product Type: CAT 6 Cables
Zeb C4PCAT6CU-100M-PLUS
Sale price₹ 3,399.00
Specifications
| Model Name |
ZEB-C4PCAT6CU-100M-PLUS | |
| No. of wires |
4 pairs | |
| Cable length |
100 meter | |
| Conductor material |
25 AWG Solid Bare Copper | |
| Construction diameter |
0.45mm | |
| Insulation material |
High Density Polyethylene | |
| Insulation thickness |
0.2mm | |
| Insulation diameter |
0.90mm | |
| Jacket material |
PVC | |
| Jacket thickness |
0.2 mm | |
| Jacket diameter |
6.1mm | |
| Jacket color |
Gray | |
| Separator |
PE Central cross separator | |
| Conductor resistance |
<93.8Ω/km at 20°C | |
| Weight |
4.3 Kg | |
| Country of Origin |
India | |
| Mechanical Properties | ||
| Operation Temperature |
-10°C to +60°C | |
| Storage Temperature |
0°C to +50°C | |
| Bending Radius |
<25.4 mm at -20°C to ±1°C | |
| Pulling Force | 10.5 Kgs | |
|
Package contents |
||
| Cable |
: 100 Meter x 1U |
