  • Zeb C4PCAT6CU-100M-PRIME

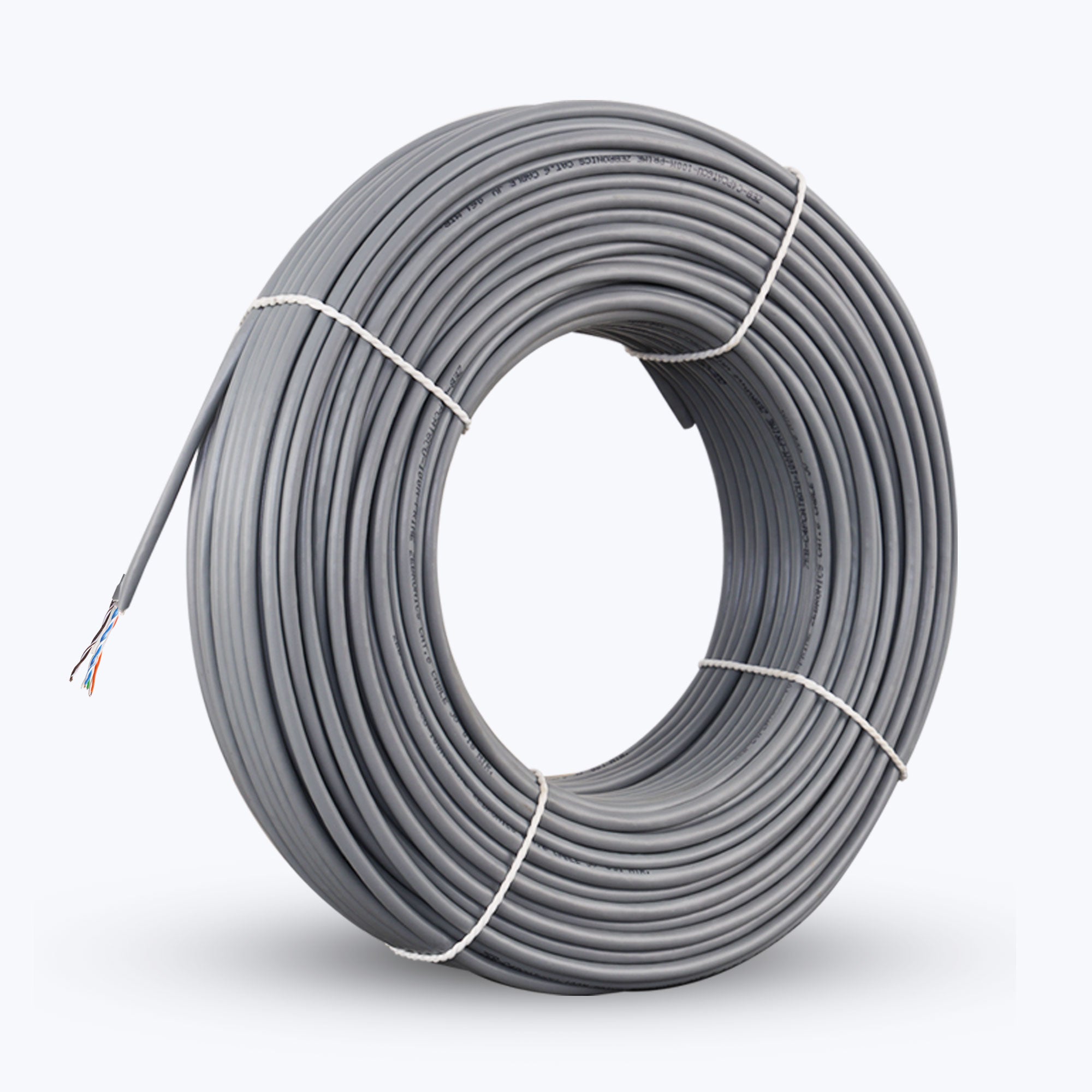

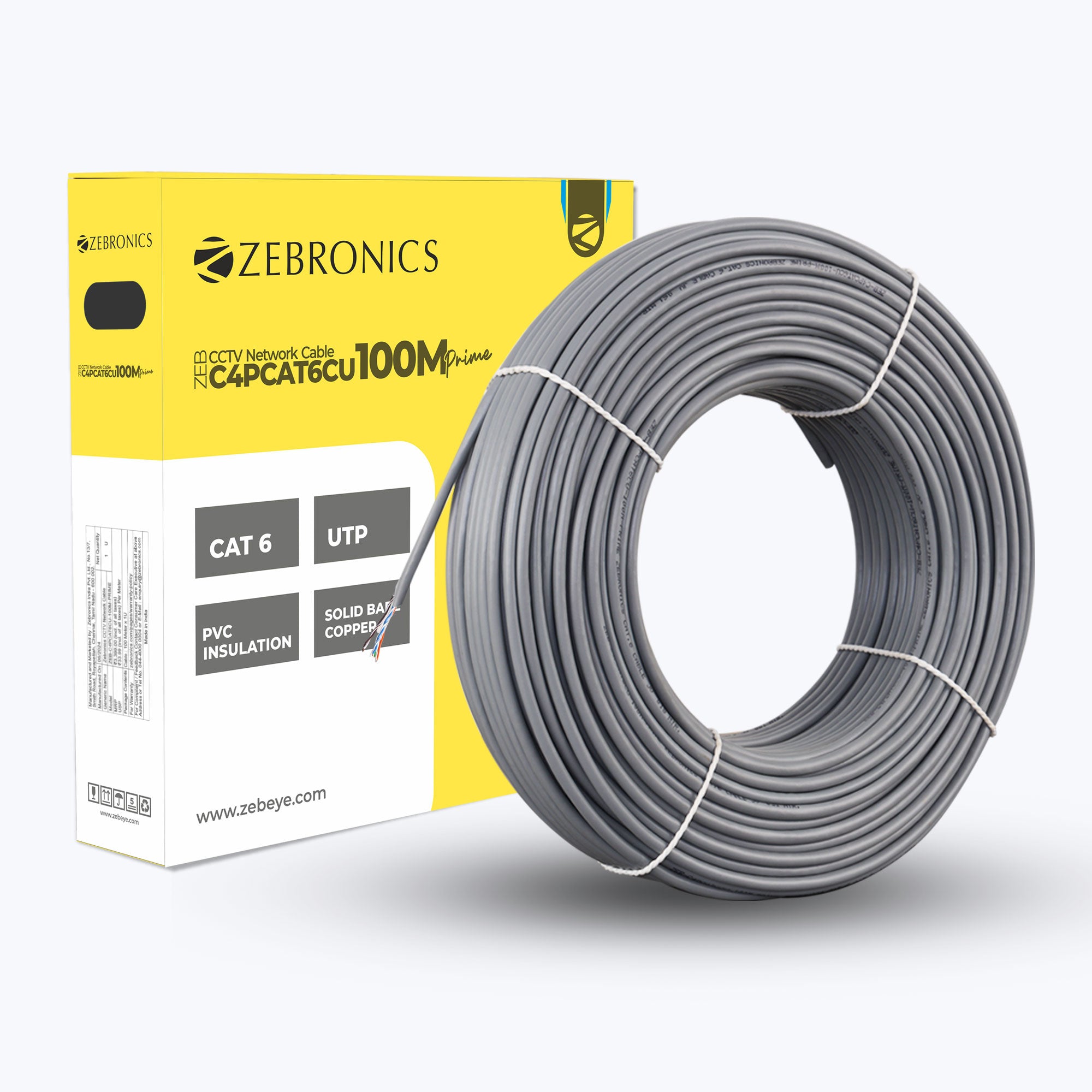

Zeb C4PCAT6CU-100M-PRIME

New
Sale price₹ 3,399.00

Inclusive of all taxes


Product Type: CAT 6 Cables

Features

  CAT 6

UTP

100 meter

Solid Bare Copper

PVC Insulation




Specifications


Model Name
ZEB-C4PCAT6CU-100M-PRIME

No. of wires
4 pairs

Cable length
100 meter

Conductor material
Solid Bare Copper

Construction diameter
0.45mm

Insulation material
High Density Polyethylene

Insulation thickness
0.2mm

Insulation diameter
0.90mm

Jacket material
PVC

Jacket thickness
0.2 mm

Jacket diameter
6.1mm

Jacket color
Gray

Separator
PE Central cross separator

Conductor resistance
<9.38Ω/km at 20°C

Weight
3.45 Kg

Country of Origin
India

Mechanical Properties

Operation Temperature
-10°C to +70°C

Storage Temperature
0°C to +50°C

Bending Radius
<25.4 mm at -20°C to ±1°C

Pulling Force 11.5 Kgs

Package contents


Cable
100 Meter x 1U
