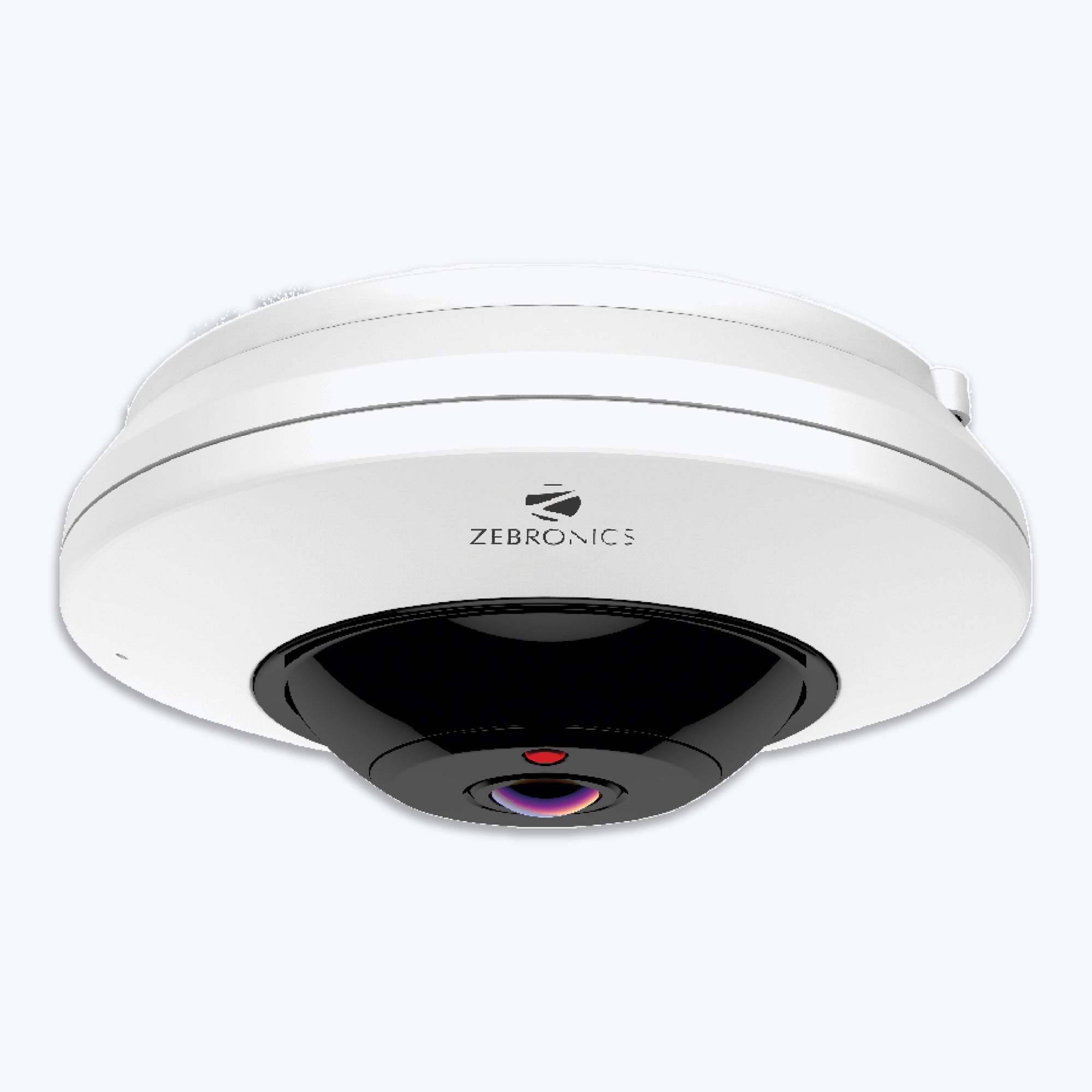

ZEB FE6MD3L20M
Product Type: Fish Eye Camera
ZEB FE6MD3L20M
Sale price₹ 11,250
Regular price (/)
Features
| ICR / AGC / BLC / AWB / HLC | |
| UTC / WDR / DNR / DWDR | |
| 2 IR Array LED | |
| 5 Mega Pixels | |
| 20M IR Range (Max.) | |
| CMOS Image Sensor | |
| Low Illumination | |
| Night Vision with Color |
Specifications
| Wireless | |||
| Antenna | 3dbi | ||
| WiFi Range | No obstacles 300m Max | ||
| Camera | |||
| Compression | H.264 / H.265 / JPEG / AVI / MJPEG | ||
| Electronic Shutter Time | Auto : PAL 1/25 ~ 1/10000 Sec; NTSC 1/25-1/ 10000 Sec | ||
| Resolution | 6MP | ||
| Image Sensor | 1/2.9 SONY Low illumination CMOS Sensor | ||
| Effective Pixels | 3096 (H) x 2202 (V) | ||
| TV System | PAL / NTSC | ||
| Video Output | Network, CVBS | ||
| S/N Ratio | ≥52dB | ||
| Scanning System | Progressive | ||
| Lens | |||
| Focus Length | Board lens 1.05 mm | ||
| Focus Control | Fixed | ||
| Lens Type | Fixed | ||
| Pixels | 5MP | ||
| Night Vision | |||
| Infrared LED | 42μ x 3PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux by CDS | ||
| IR Power On | CDS Auto Control | ||
| Network | |||
| Ethernet | RJ-45 (10/100 Base-T) | ||
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP | ||
| Onvif function | Supports ONVIF 2.4 | ||
| P2P | Yes, Support QR Code | ||
| Main Stream | 2048 x2048 @ 15fps, 1520 x 1520 @ 20 fps, 1024 x 1024 @ fps | ||
| Video Delay | 0.3S (Within the Lan) | ||
| Sub stream | 720 x 720 @ 15 fps, 720 x 720 @ fps | ||
| IE Browser | IE8-11, Google Chrome (IE Tab), Firefox (IE Tab) | ||
| Tri Stream | 512 x 512 @ 15 fps, 512 x 512 @ fps | ||
| Smartphone | iPhone, iPad, Android, Android Pad | ||
| POE | Internal POE, Support IEEE 802.3af | ||
| WiFi | Wi-Fi (IEEE802.11b/g/n | ||
| Camera Features | |||
| Privacy Masking | 3 Rectangular Zone | ||
| Day/Night | Color / B & W (IR - CUT) | ||
| Image Configuration | Saturation / Brightness / Contrast / Sharpness Mirrorm 3D NR, White Balance, FLK (Flicker Control) | ||
| Motion Detection | Support | ||
| Recording Mode | NVR / NAS / VMS / Web | ||
| WDR | Support | ||
| BLC | Support | ||
| Defog mode | Support | ||
| Interfaces | |||
| Audio | 2 way audio | ||
| Alarm | 1 Channel input / Output | ||
| SD Card Slot | Support 64G Micro SD | ||
| General | |||
| Anti-cut Bracket | No | ||
| Housing | Body : Metal, Bracket : Plastic | ||
| IR cut filter | Yes | ||
| Power Source | DC12V±10%, 950mA | ||
| Dimension | (Dia) 20 x 49 (H) mm | ||
| Weight | 500 g | ||
| Operation Temperature | -20°C ~ +60°C RH95% Max | ||
| Country of Origin | China |
