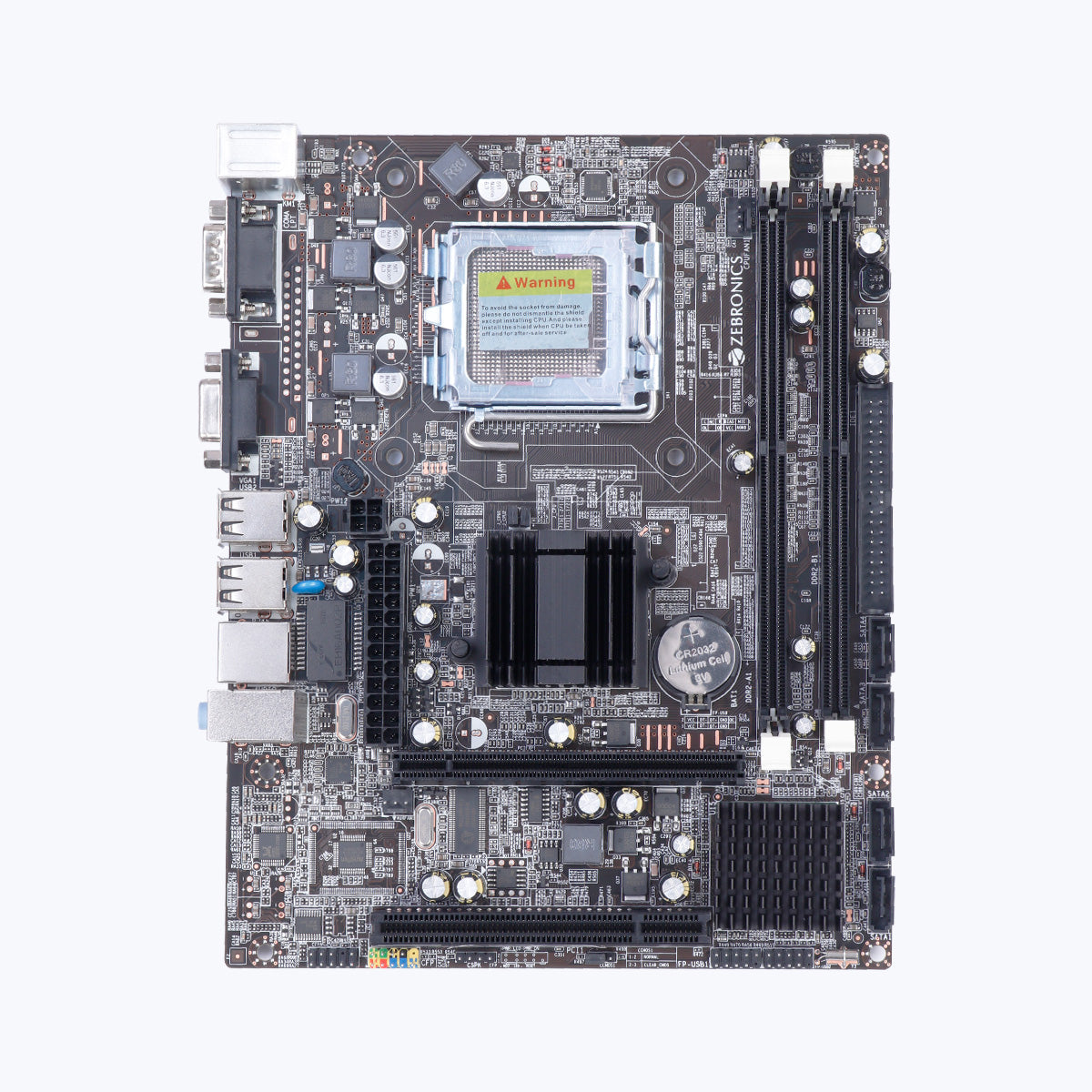

Zeb G31, LGA 775 Socket
Inclusive of all taxes
Product Type: Motherboards
Zeb G31, LGA 775 Socket
Sale price₹ 3,199.00
SPECIFICATION
| CPU | |||
|
LGA775 for Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, Pentium® D, Pentium® 4,
Celeron® (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors. |
|||
| Compatible with all 1333/1066/800/533 MHz FSB CPUs | |||
| Supports Hyper-Threading Technology | |||
| Chipset | |||
| Intel® Q33 + ICH7 | |||
| Super I/O: Winbond W83627DHG chip | |||
| Memory | |||
| Dual Channel DDR2 memory technology | |||
| 2 x DDR2 DIMM slots | |||
| Supports DDR2 800/667 non-ECC, un-buffered memory | |||
| Max. capacity of system memory 4GB | |||
| BIOS | |||
| Supports "Plug and Play" | |||
| Advanced power management | |||
| Graphics | |||
| Intel® Graphics Media Accelerator 3100 | |||
| Pixel Shader 2.0, DirectX 9.0 | |||
| Audio | |||
| Realtek ALC883 | |||
| 5.1 Channel | |||
| LAN | |||
| Realtek® RT8105S Ethernet Controller (10/100Mbit) | |||
| Expansion Slots | |||
| 1 x PCI Express x16 slot | |||
| 2 x 2.2 PCI slots | |||
| Connector | |||
| 1 x 24-pin ATX power connector | |||
| 1 x 4-pin ATX 12V power connector | |||
| 1 x floppy connector | |||
| 1 x IDE connector (for 2 PATA devices) | |||
| 4 x SATA 3Gb/s connectors | |||
| 1 x CPU fan connector | |||
| 1 x system fan connector | |||
| 1 x front panel connector | |||
| 1 x front audio connector | |||
| 1 x USB 2.0 header for additional 2 USB 2.0 ports (by cables) | |||

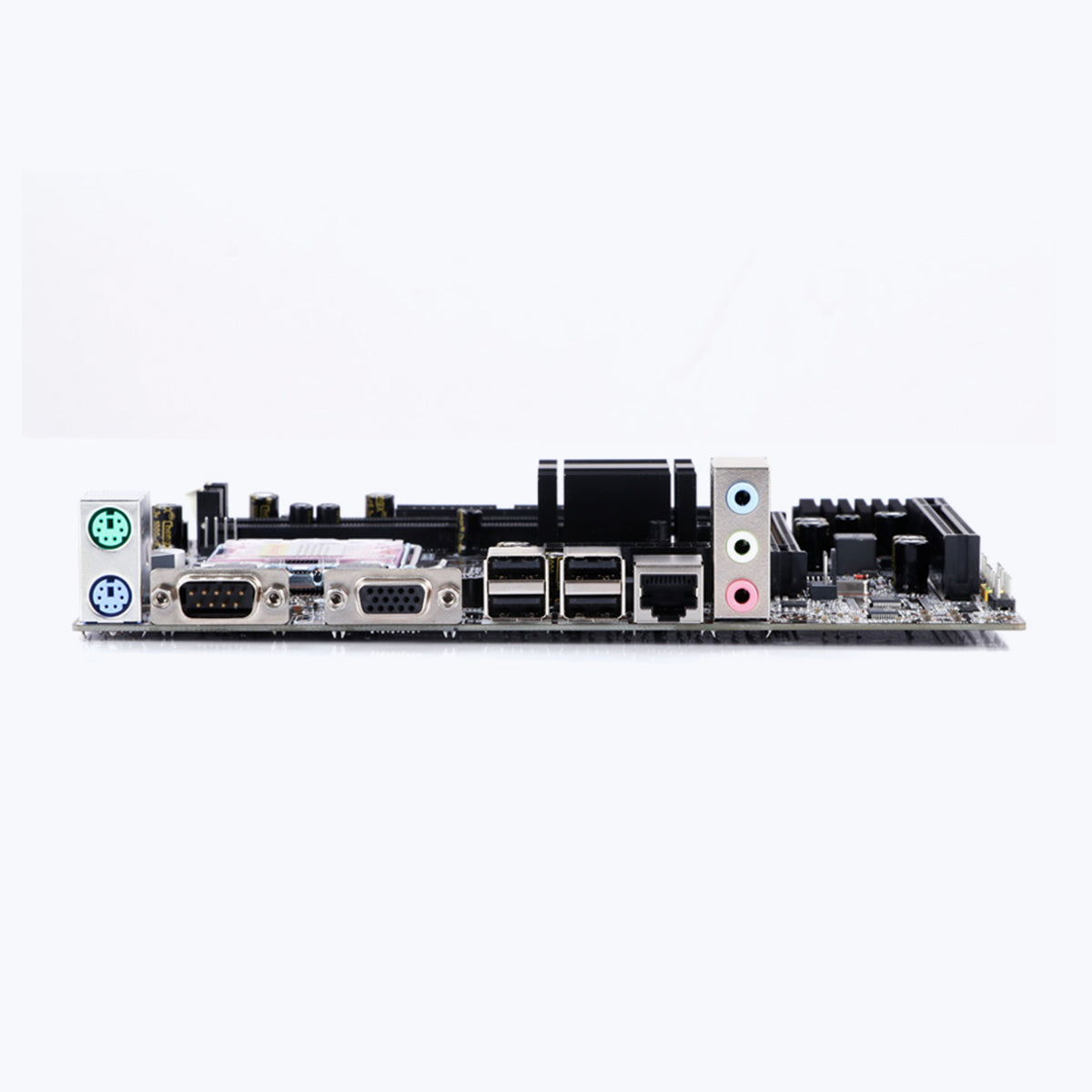

| Rear Panel I/O | |||
| 1 x PS/2 Mouse Port | |||
| 1 x PS/2 Keyboard Port | |||
| 1 x Serial Port | |||
| 1 x Parallel Port | |||
| 1 x VGA Port | |||
| 4 x Ready-to-Use USB 2.0 Ports | |||
| 1 x RJ-45 LAN Port | |||
| HD Audio Jack: Line in / Front Speaker / Microphone | |||
| Support CD | |||
| Drivers | |||
| Accessories | |||
| Quick Installation Guide, I/O Shield | |||
| 1 x ATA 100 Cable | |||
| 1 x SATA Data Cable | |||
| Country of Origin : China | |||
