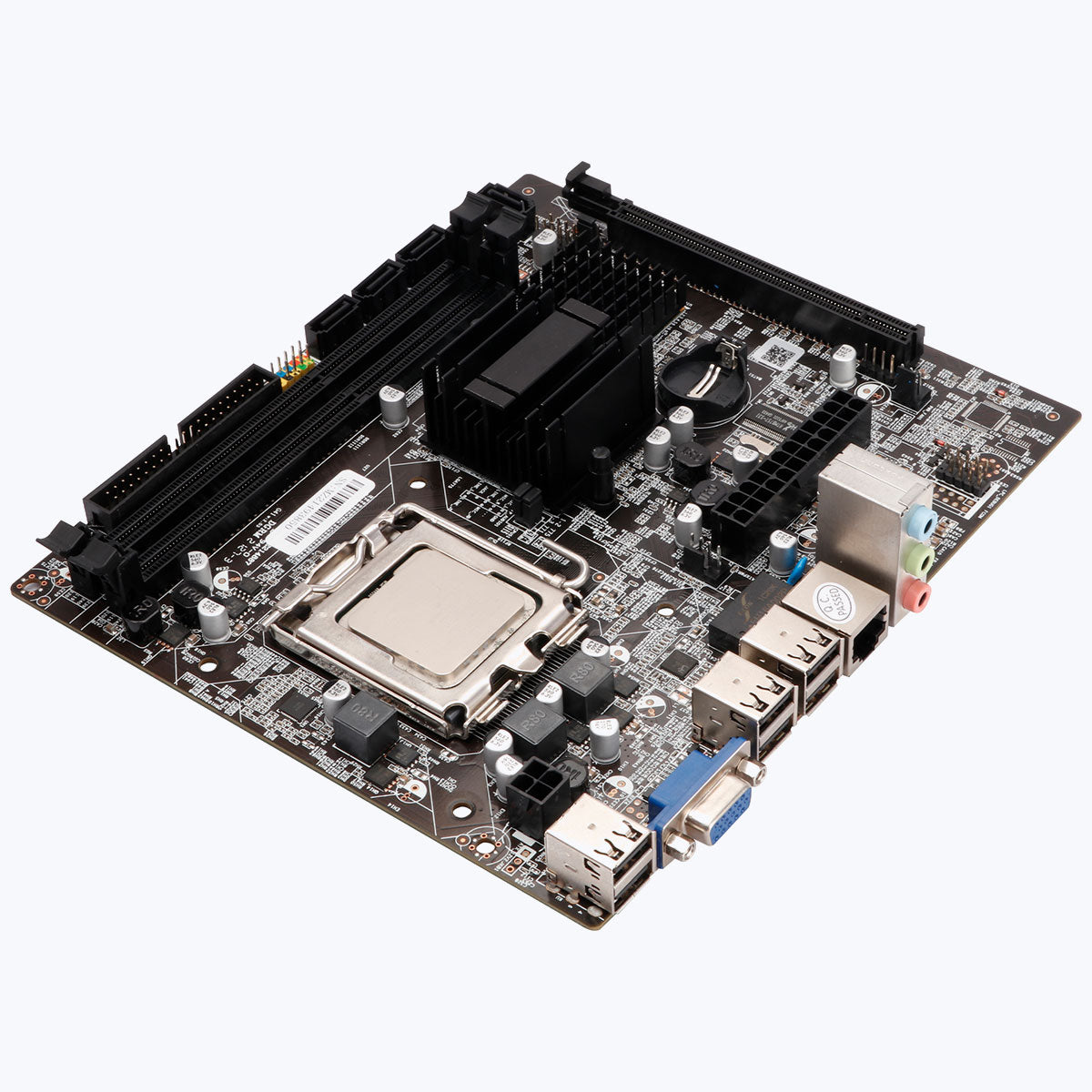

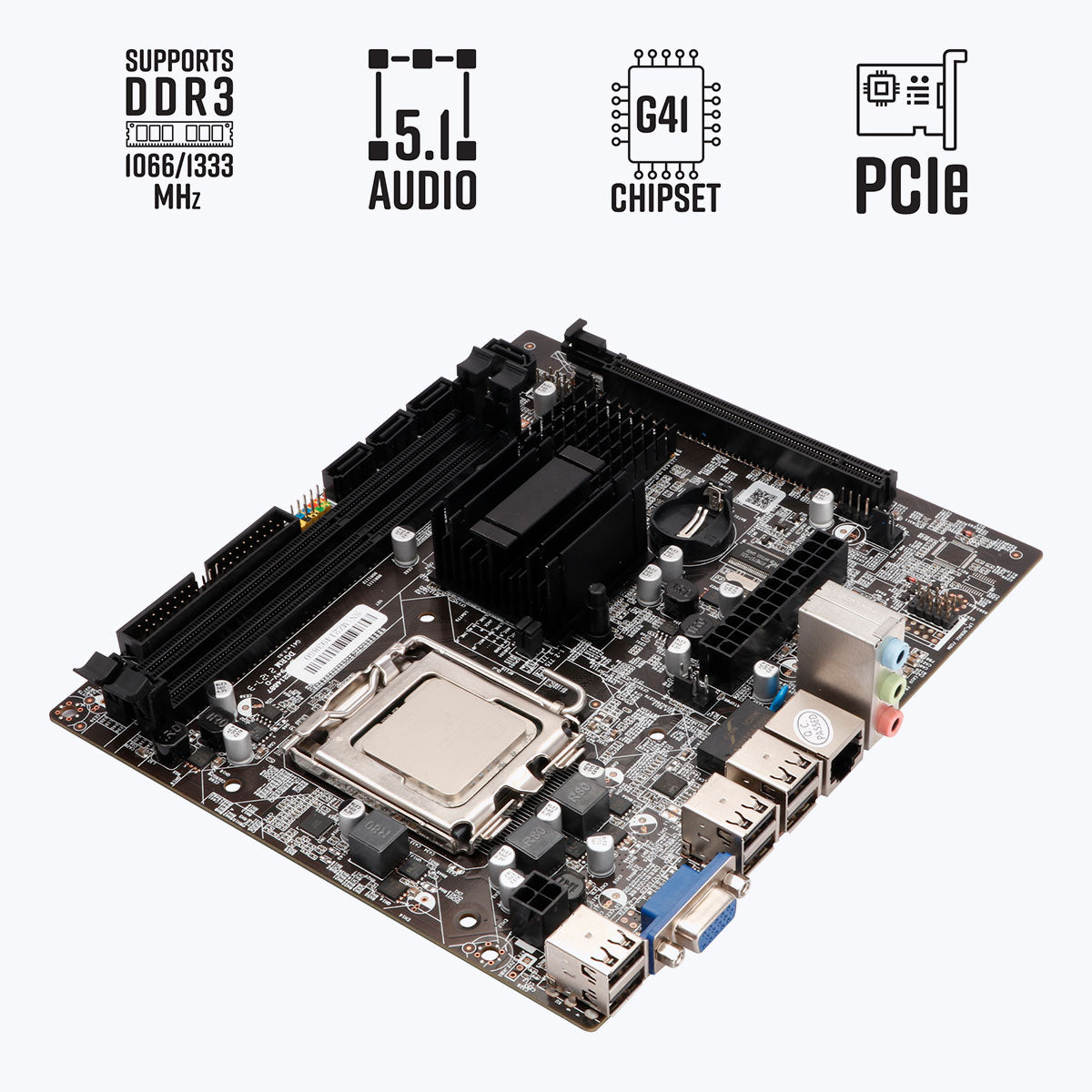

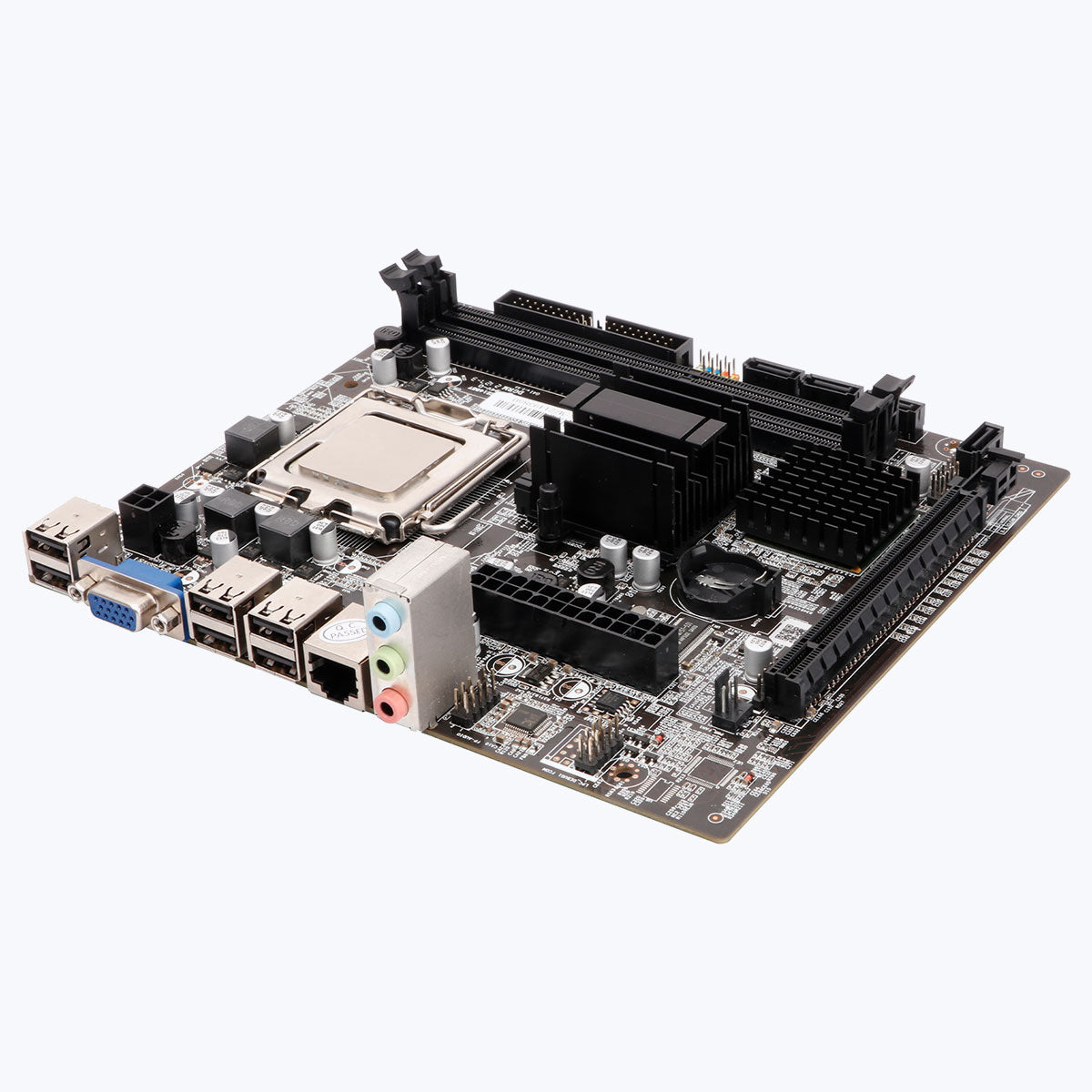

Zeb-G41-D3S - LGA 775 Socket

Sale price₹ 4,199
4.0

Product Type: Motherboards

Specifications


Supported CPU Socket 775 Intel Core 2 Quad / Core 2 Duo / Pentium Series / Celeron Series Processor

Chipset North Bridge - Intel G41
South Bridge - Intel ICH7 Chipset

Memory supported 2 DDR3 dual-channel RAM slots,
Memory up to 8GB,
Supports DDR3 1066/1333 MHz memory, 2 x DIMM Slots

BIOS AMI BIOS

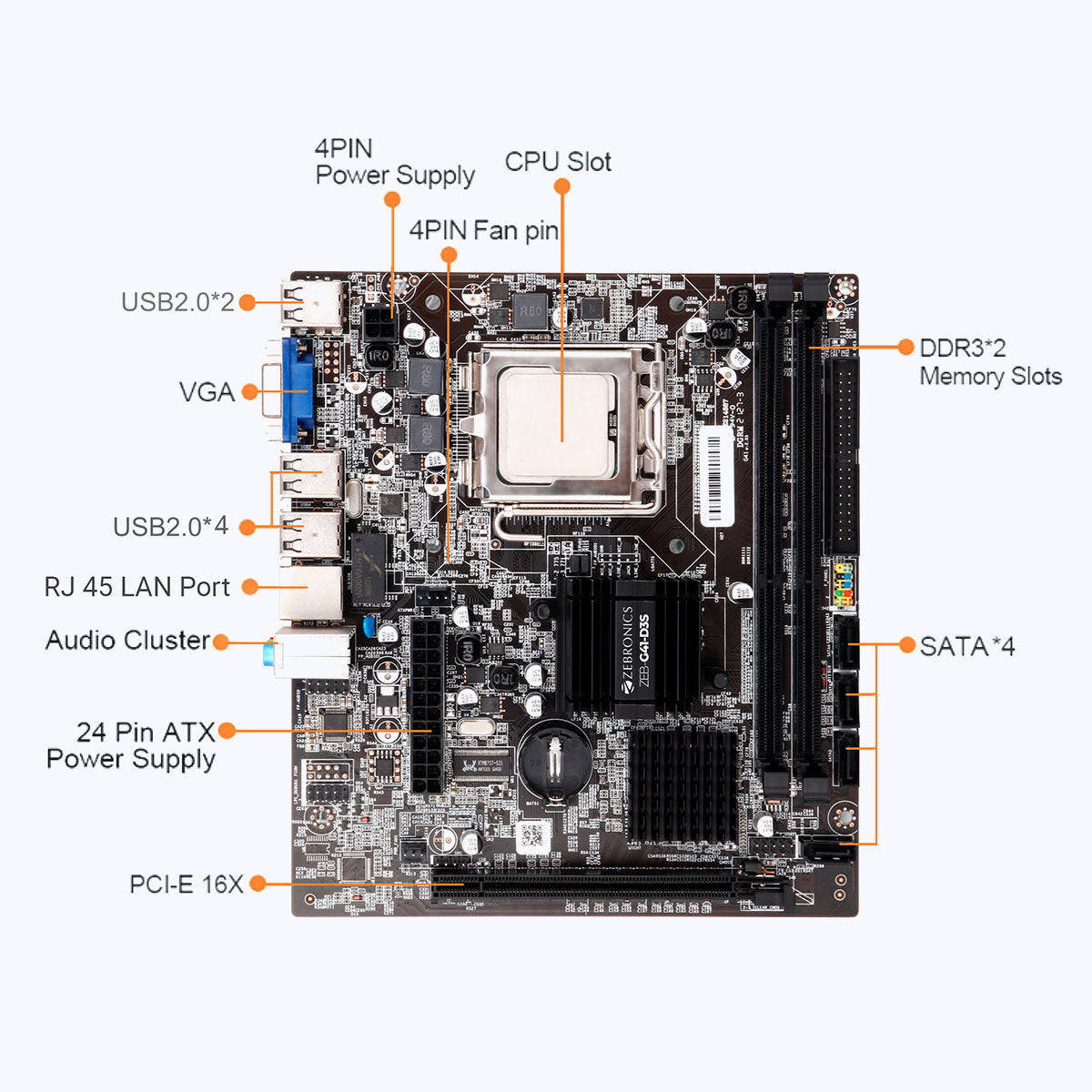

I/O Interface 1 x VGA Port, 6 x USB 2.0 ports, RJ45 LAN port,
1 x 3-in-1 audio jacks

Onboard interface

1 x Front panel connector,1 x Front audio connector,
1 x USB 2.0 Connector, 4 x SATA Ports, 1 x IDE slot,1 x 4 pin CPU fan connector, 1 x 24-pin ATX power connector,
1 x SYS Fan Connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header, 1 x Speaker Connector


Integrated LAN Supports RTL8106E10/100 Mbps Ethernet LAN

Expansion slot 1 x PCI Express x16 slot

Form factor Micro-ATX

Integrated Sound With 5.1-Channel HD Audio

Product Dimension (W x D x H)
19 x 16.7 x 3.6cm

Country of Origin People's Republic of China

Package contents

ZEB-G41-D3S Motherboard
1 U

I/O Backplate 1 U

SATA Cable
1 U

Driver Disc
1 U

User Manual
1 U
