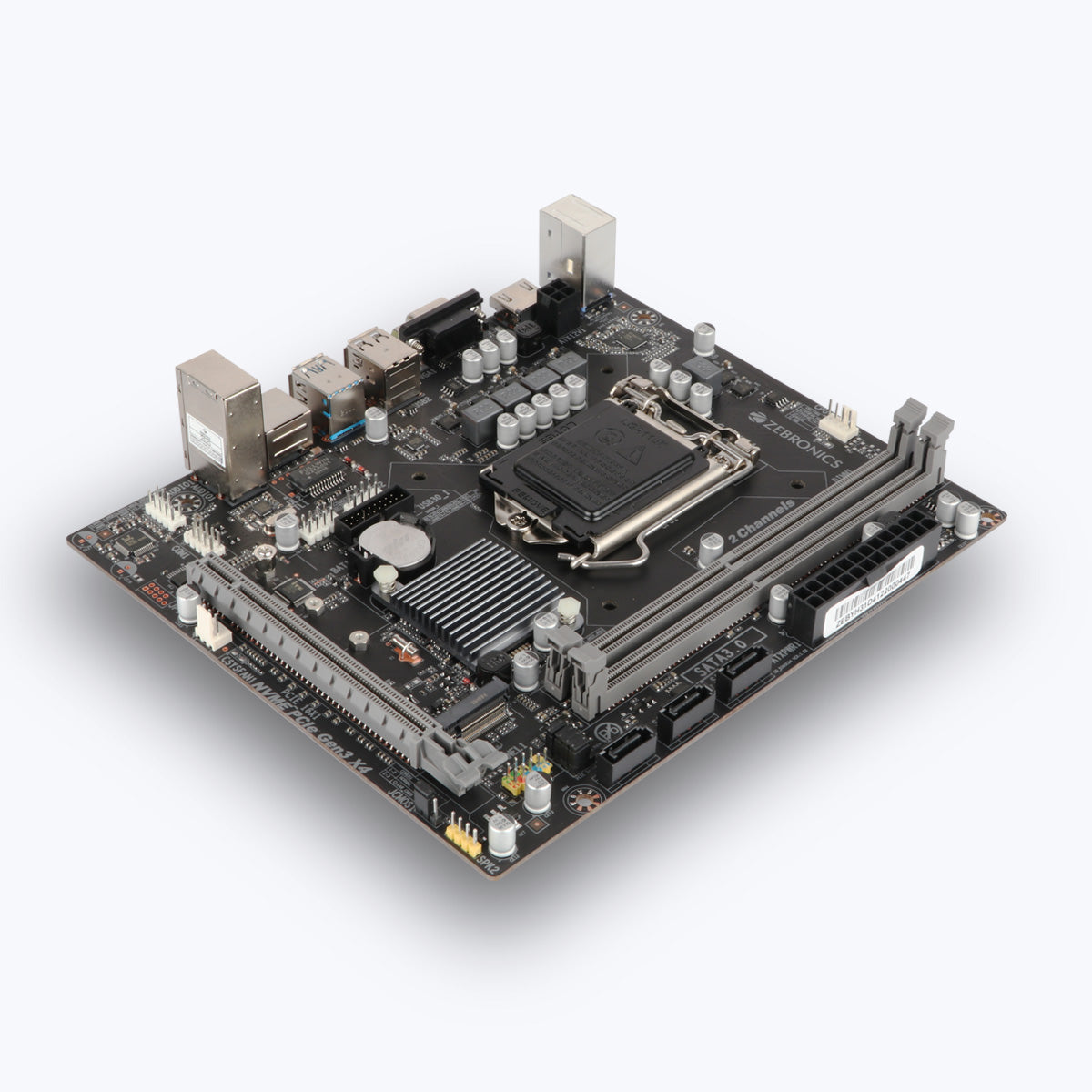

Zeb-H310-D4 - LGA 1151 Socket

Rs. 9,999.00
  • Supports DDR4 2133/2400/2666 MHz memory
  • 5.1 Audio
  • LAN 100/1000 Mbps
  • LGA 1151
DESCRIPTION


Specifications



Supported CPU

Intel i3/i5/i7/Celeron/Pentium 6th,7th,8th & 9th
generation series processor in LGA 1151

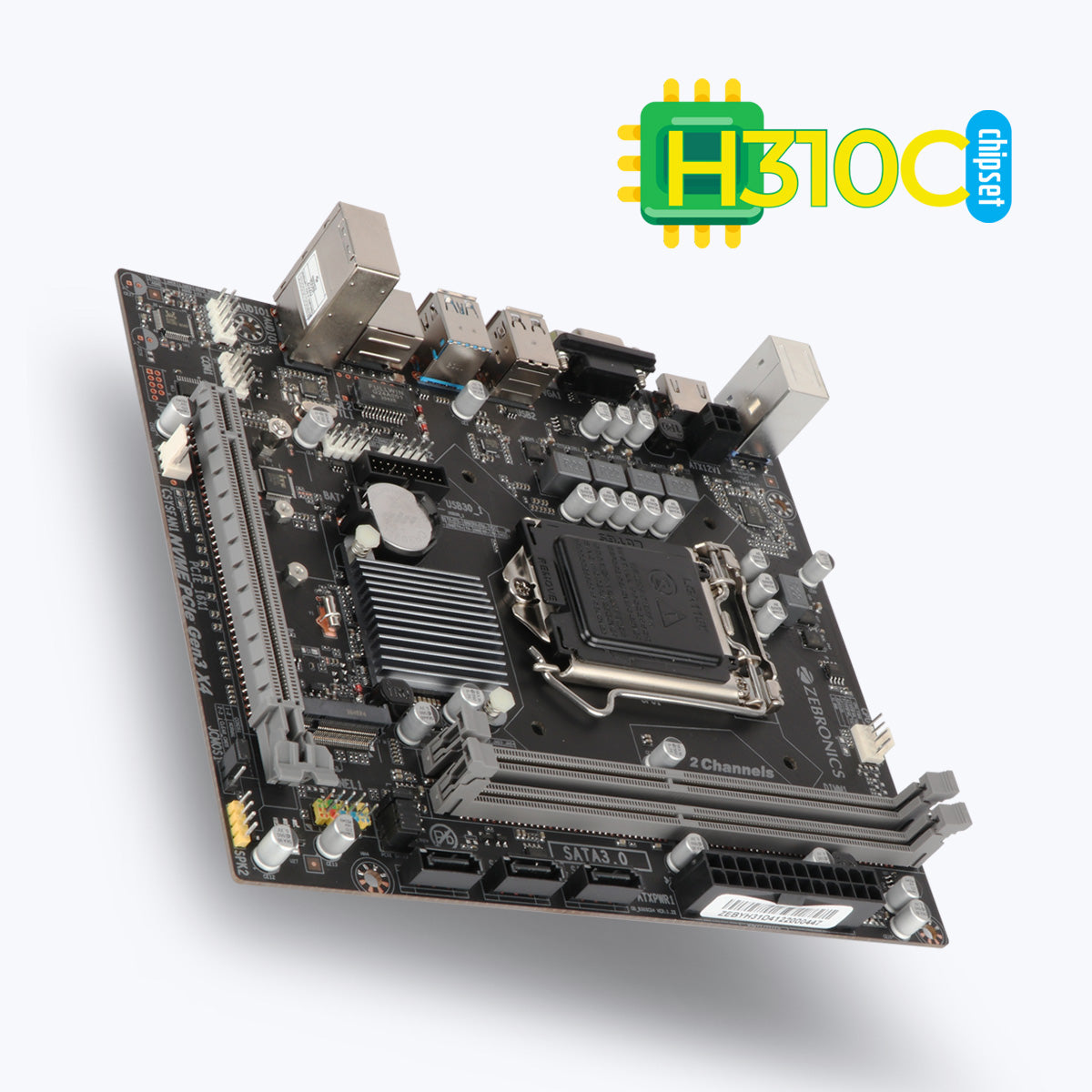

Chipset
Intel H310

Memory Supported

2 DDR4 DIMM Memory Slots, Memory up to 32GB
Supports DDR4 2133/2400/2666 MHz memory

BIOS
AMI EFI BIOS

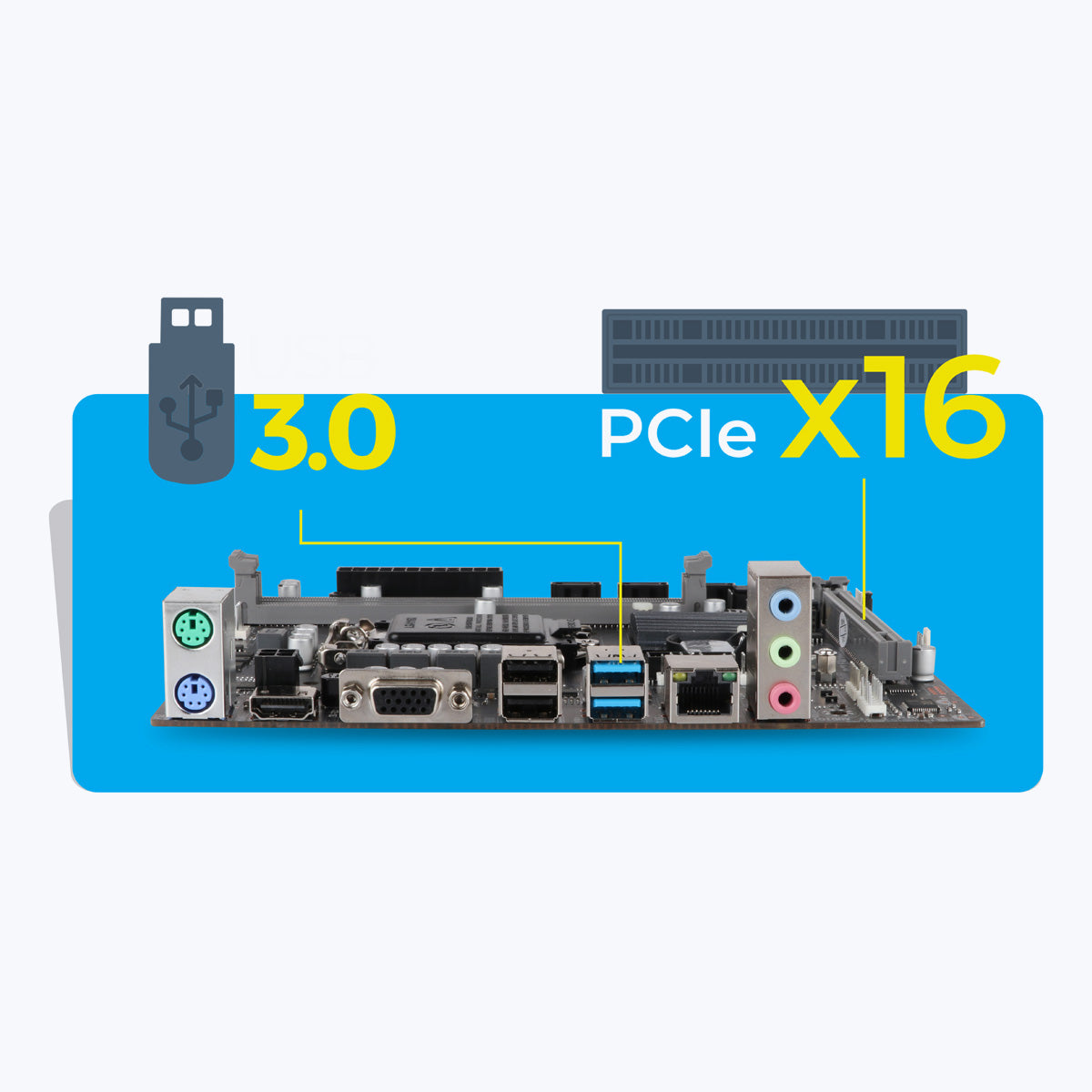

I/O Interface 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port,2 x USB 3.0 Port, 1 x RJ45 Port,
1 x 3-in-1 Audio ,1 x PS/2 keyboard port, 1 x PS/2 mouse port
Onboard Interface< 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector
1 x Front Panel, connector, 1x Front Audio Connector, 1 x Speaker Connector
2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector
1x SYS Fan Connector, 1 x COM Connector,1 x clear CMOS Connector, 3 x SATA 3.0

Integrated LAN
Supports RTL8111H 100/1000 Mbps Ethernet LAN
Expansion Slot 1 x PCI Express x16 slot, 1 x M.2 slot

Form Factor
Micro-ATX
Country of Origin China


Package Contents


ZEB-H310 Motherboard

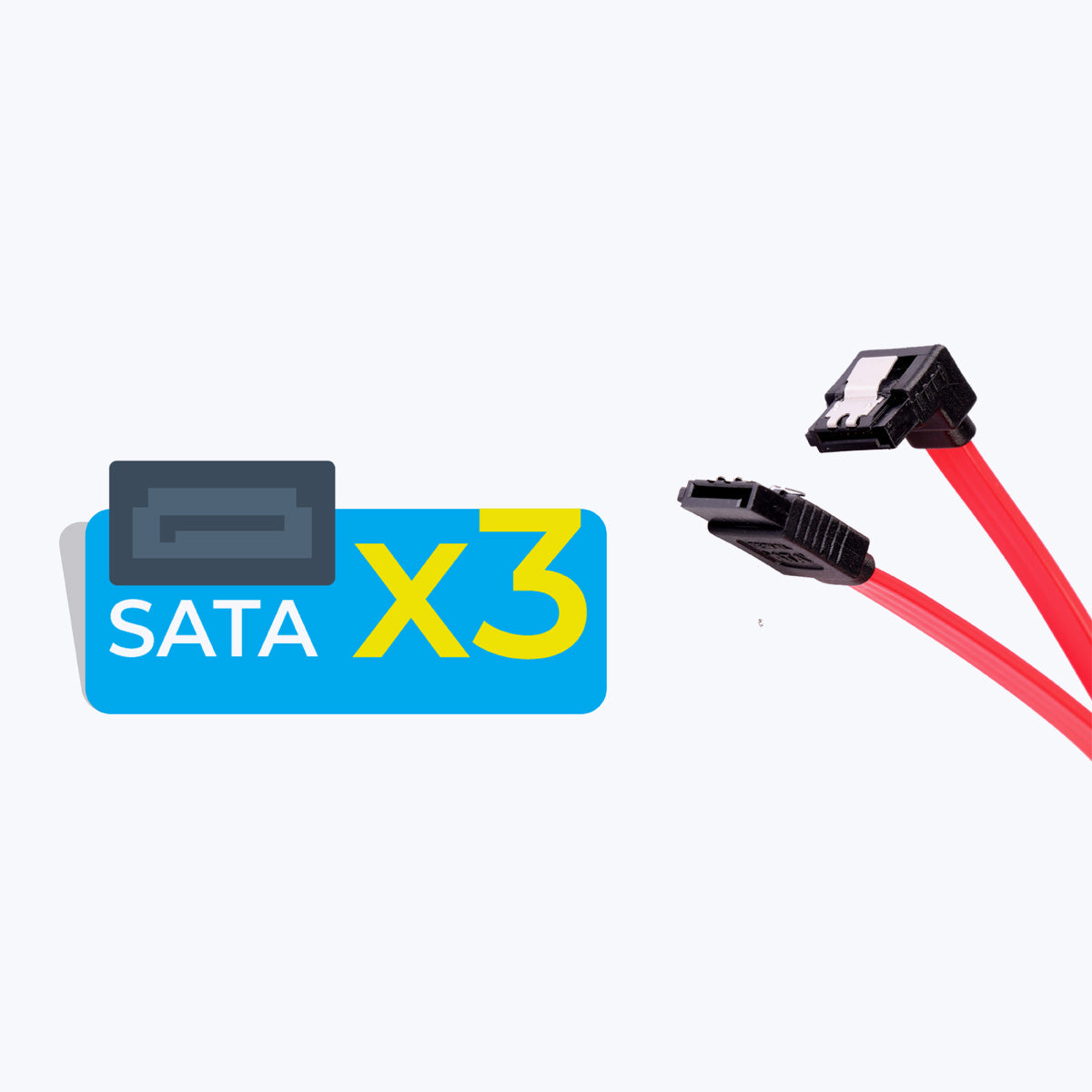

SATA cable
1 Unit

I/O Backplate
1 Unit

Driver disc
1 Unit

User manual
1 Unit
