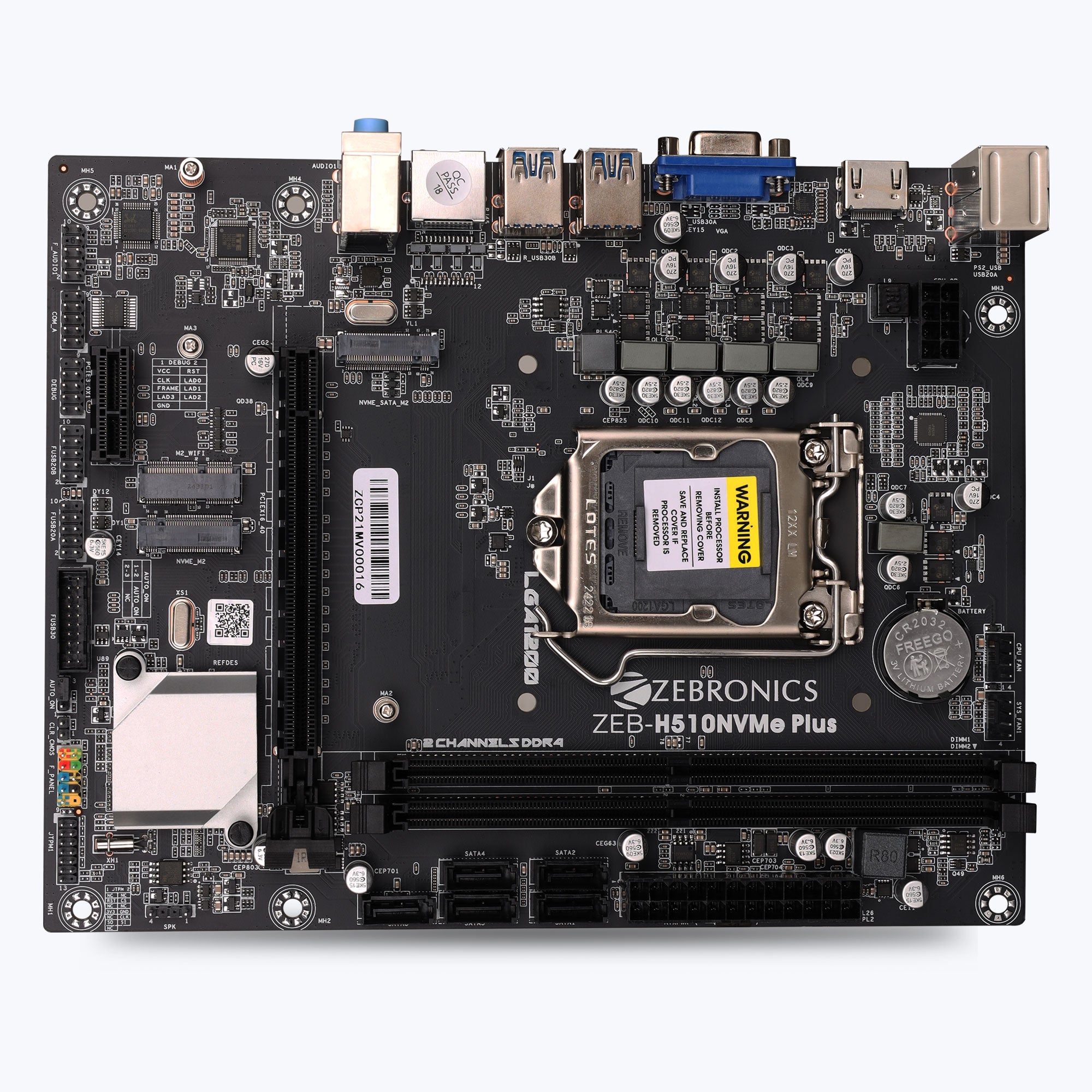

ZEB H510NVMe Plus - LGA1200 Socket
Inclusive of all taxes
Product Type: Motherboards
ZEB H510NVMe Plus - LGA1200 Socket
Sale price₹ 14,999.00
Specifications
| Supported CPU |
Intel i3/i5/i7/Celeron/Pentium 10th & 11th generation series processor in LGA 1200 |
|
| Memory Supported |

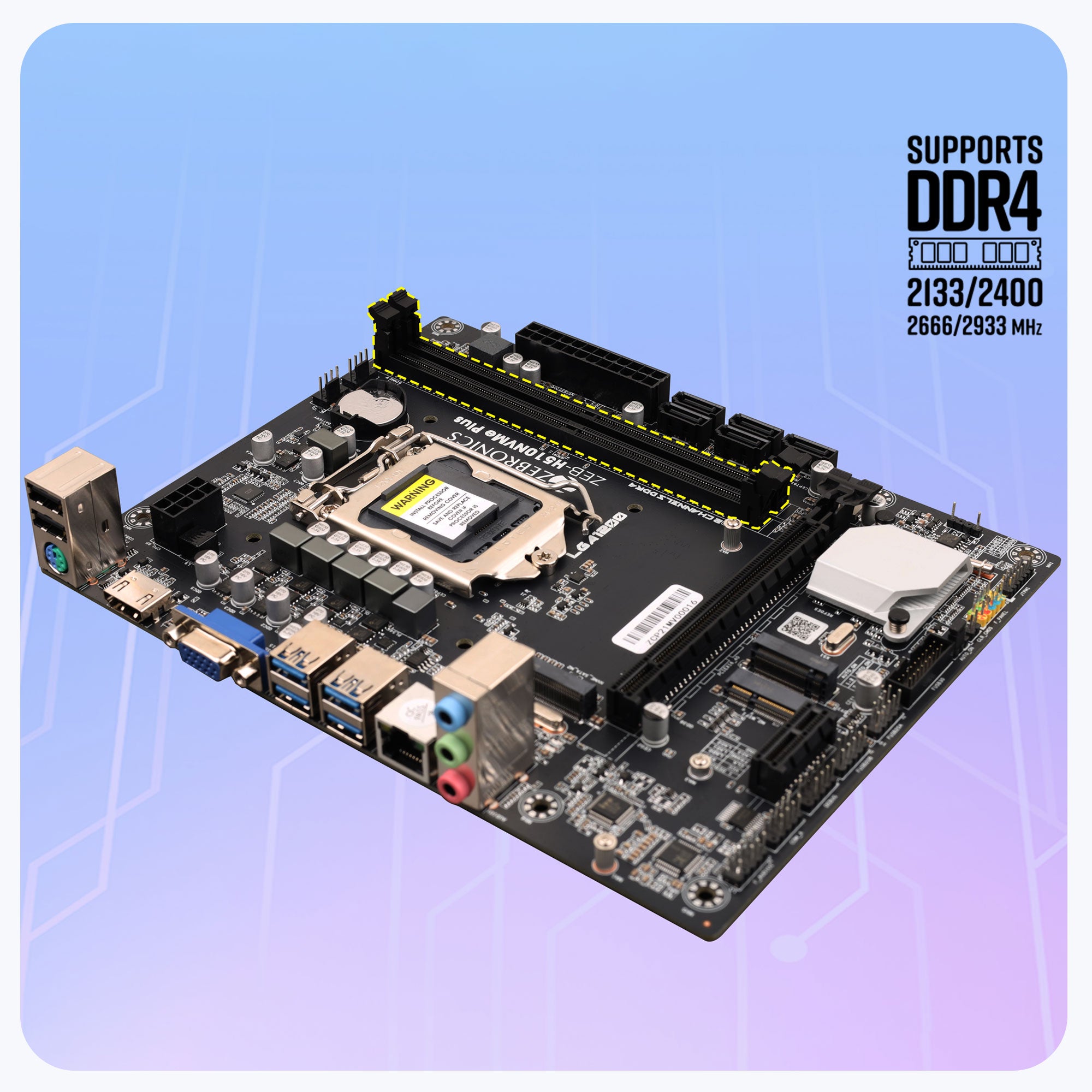

2 No.s DDR4 DIMM Memory Slots Memory up to 64GB Supports DDR4 2133/2400/2666/2933 MHz memory |
|
| BIOS |
AMI BIOS | |
| I/O Interface |

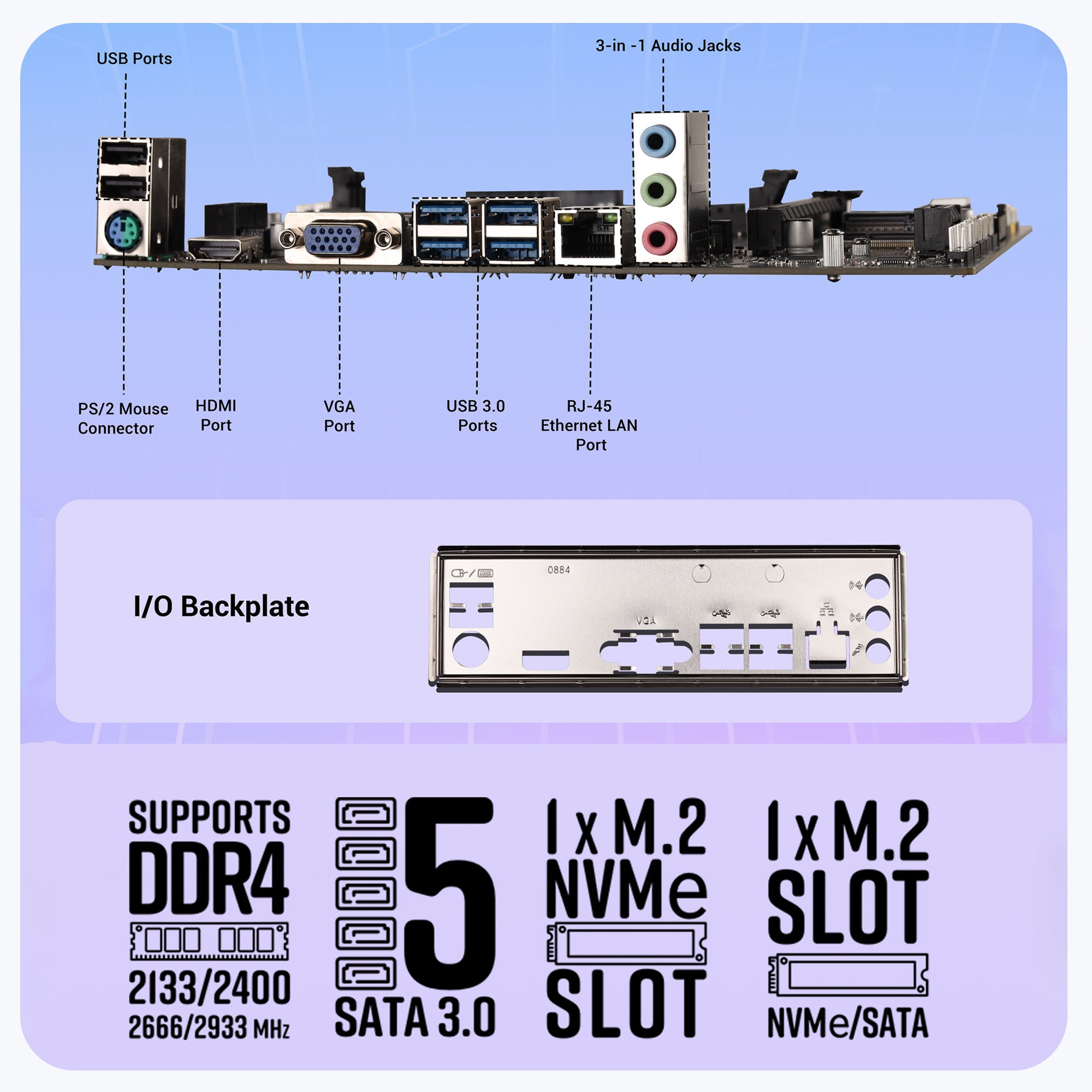

1 x HDMI Port, 1 x VGA Port, 4 x USB 3.0 Port, 2 x USB 2.0 Port, 1 x RJ45 LAN Port, 1 x 3-in-1 Audio Jacks, 1 x PS/2 2-in-1 Port |
|
| Onboard Interface | 1 x 4 Pin CPU Fan Connector, 1 x 4 Pin SYS Fan Connector, 1 x Front Audio Connector, 1 x USB 3.0 Connector, 2 x USB 2.0 Connector, 1 x COM Connector, 1 x Front Control Panel Connector, 1 x Debug Card Connector, 1 x Speaker Connector, 1 x CMOS Connector，1 x 24pin ATX Connector, 1 x 8 Pin 12V Connector， 1 x TPM Connector, 5 x SATA 3.0 |
|
| Integrated LAN | Supports RTL8111H 10/100/1000 Mbps Ethernet LAN | |

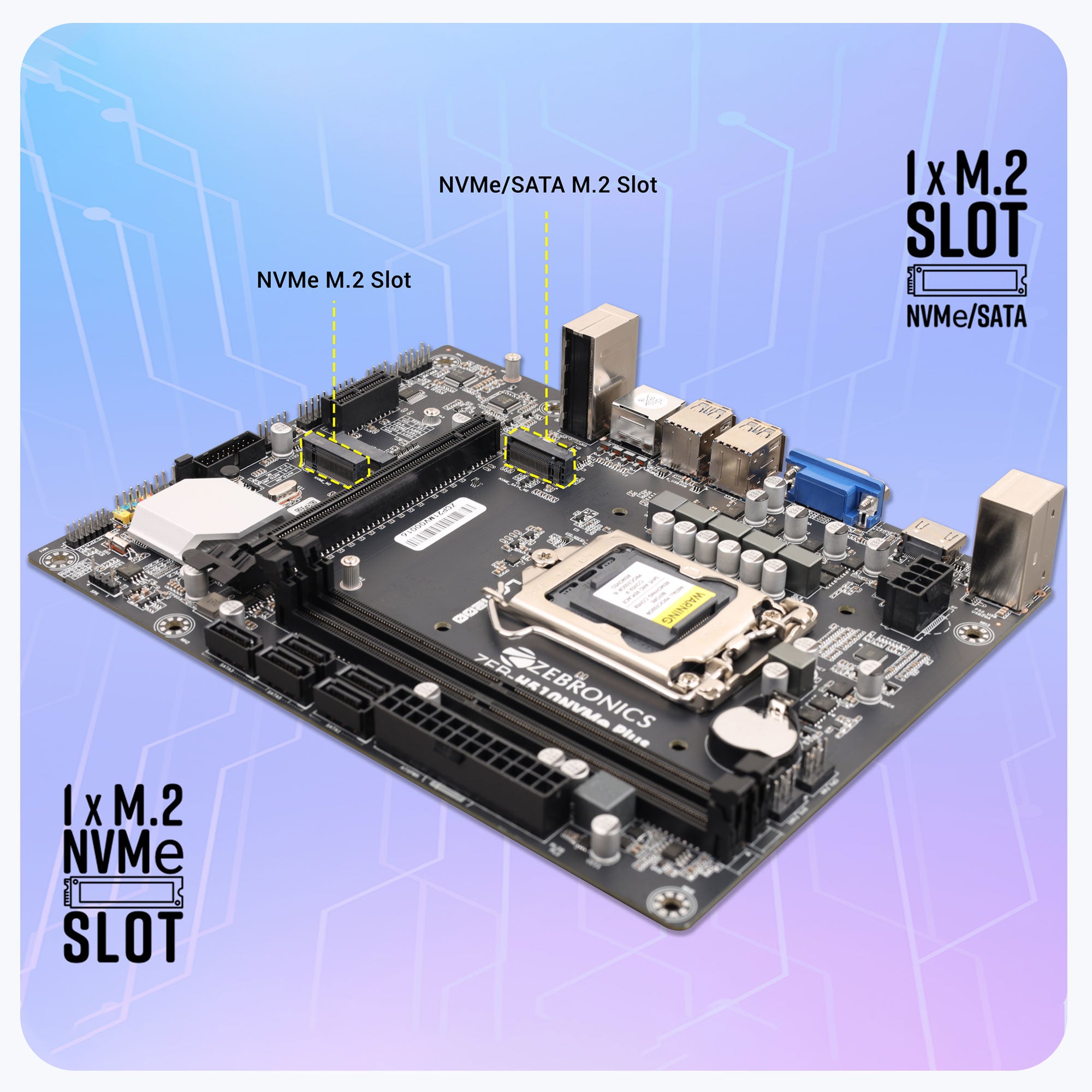

| Expansion Slot | 1 x PCI Express 4.0/3.0 x16 Slot*，1 x PCI Express 3.0 x1 Slot, 1 x M.2 for WIFI module, 1 x M.2 NVMe Slot, 1 x M.2 (NVMe/SATA) Slot |
|
| Form Factor | Micro-ATX | |
| Net Dimension (W x D x H) | 21.8 cm x 17 cm x 3.7 cm | |
| Country of Origin | PRC | |
| Package contents | ||
| Motherboard | 1 U | |

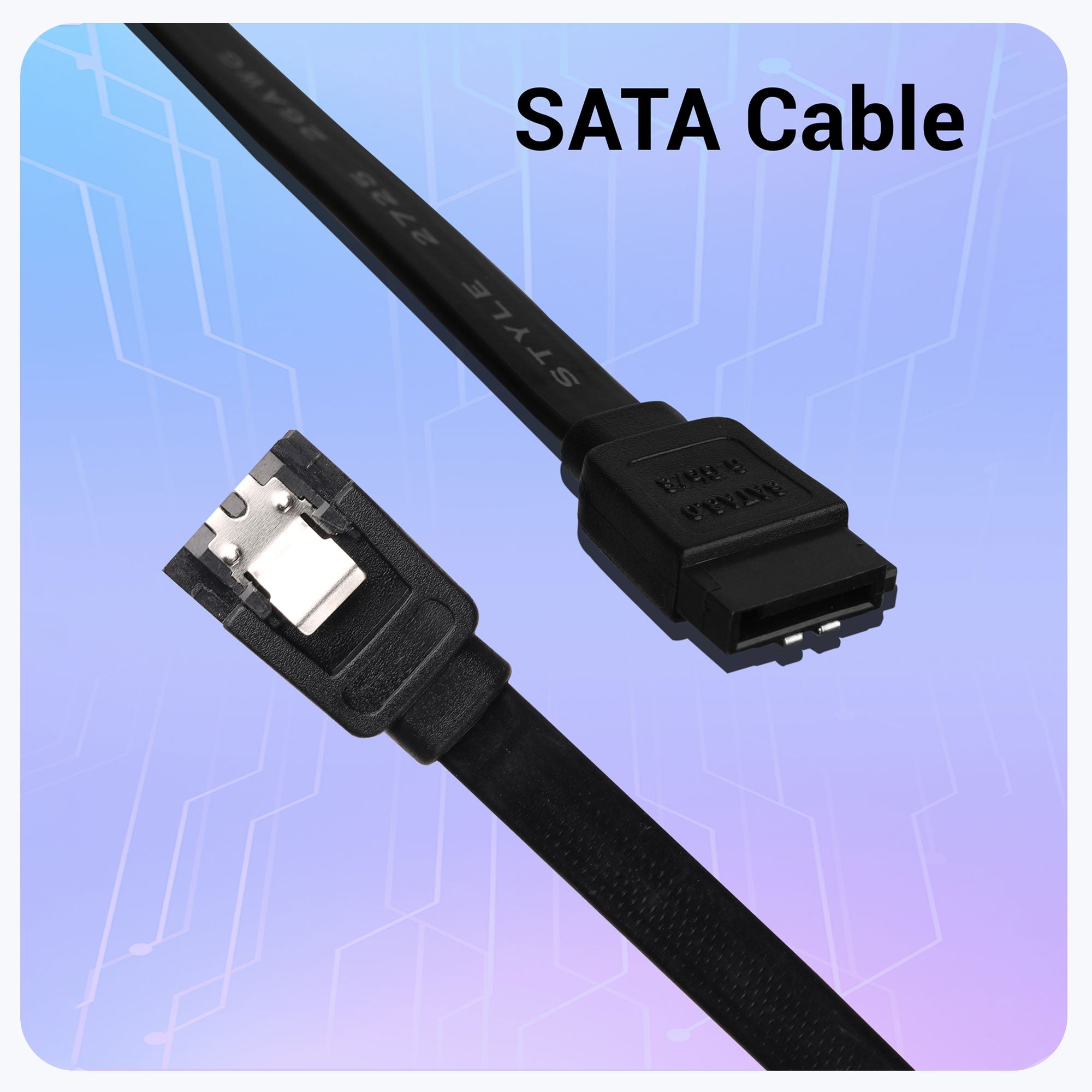

| SATA Cable | 1 U | |
| I/O Backplate |
1 U | |

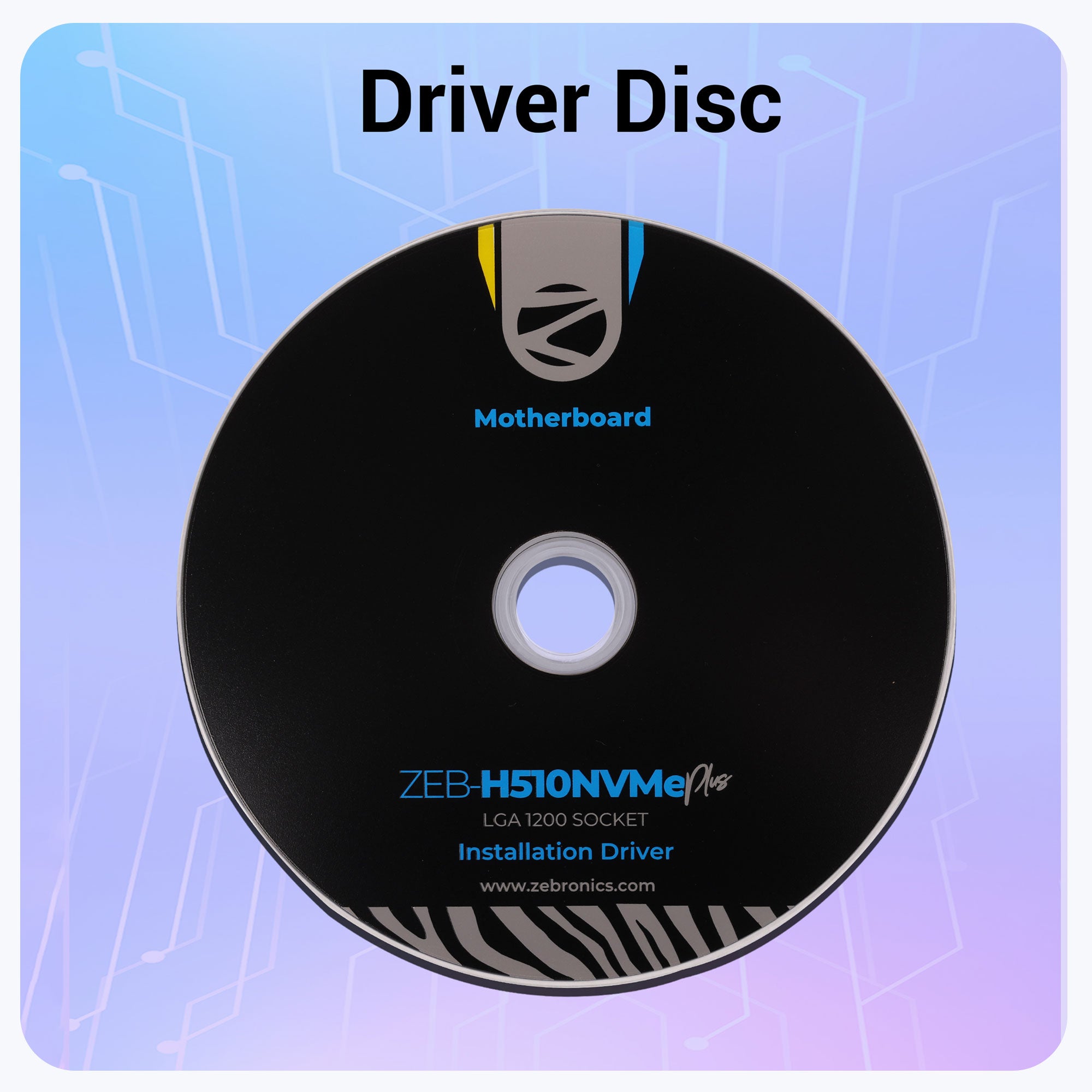

| Driver Disc | 1 U | |
| User Manual |
1 U |
Intel 11th Gen processors support PCle 4.0 x16
