Zeb-H61NVMe - LGA 1155 Socket
New
- Intel H61/H67 Chipset
- Supports dual channel DDR3 1066/1333/1600MHz memory
- AMI BIOS
- Micro-ATX
- Memory up to 16GB
- M.2 slot
- 1 x PCI Express 3.0 x16 size slot
Product Type: Motherboards
Zeb-H61NVMe - LGA 1155 Socket
Sale priceRs. 4,999.00
Regular price (/)
Specifications
| Supported CPU | Socket 1155 Intel Pentium/Celeron Series Processors/ i7 / i5 / i3 series CPU |
|
| Chipset |
Intel H61/H67 Chipset | |
| Memory Supported |
2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory |
|
| BIOS | AMI BIOS | |

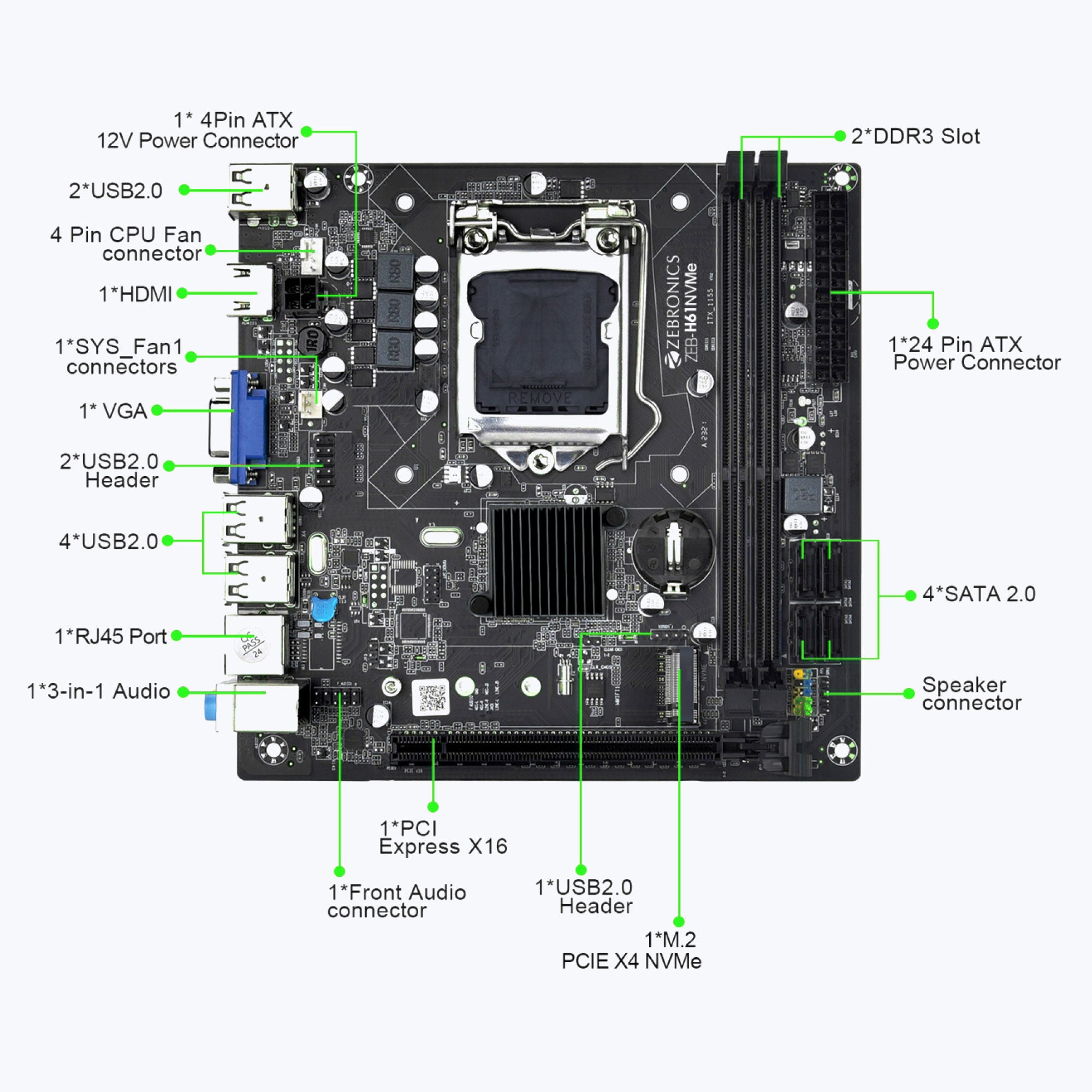

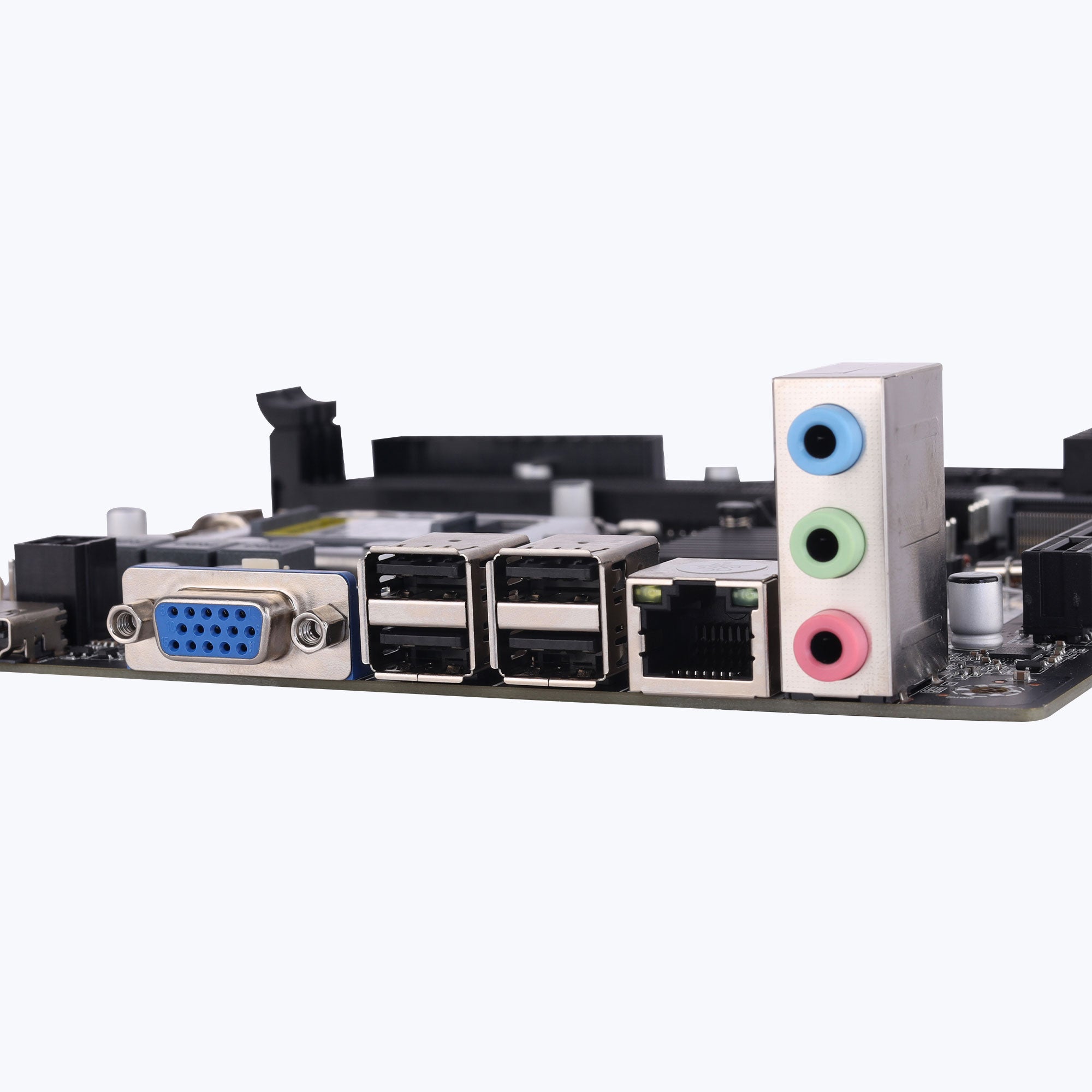

| I/O Interface |
1 x HD port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio |
|
| Onboard Interface | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 4 x SATA II Ports, 1 x USB 2.0 Header, 1 x 2pin CMOS Header, 1 x Debug Card Header, 1 x M.2 Slot |
|
| Integrated Sound |
Stereo Audio | |
| Integrated LAN |
Supports Realtek 8106E 10/100 Mbps | |
| Expansion Slot | 1 x PCI Express 3.0 x16 size slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China | |

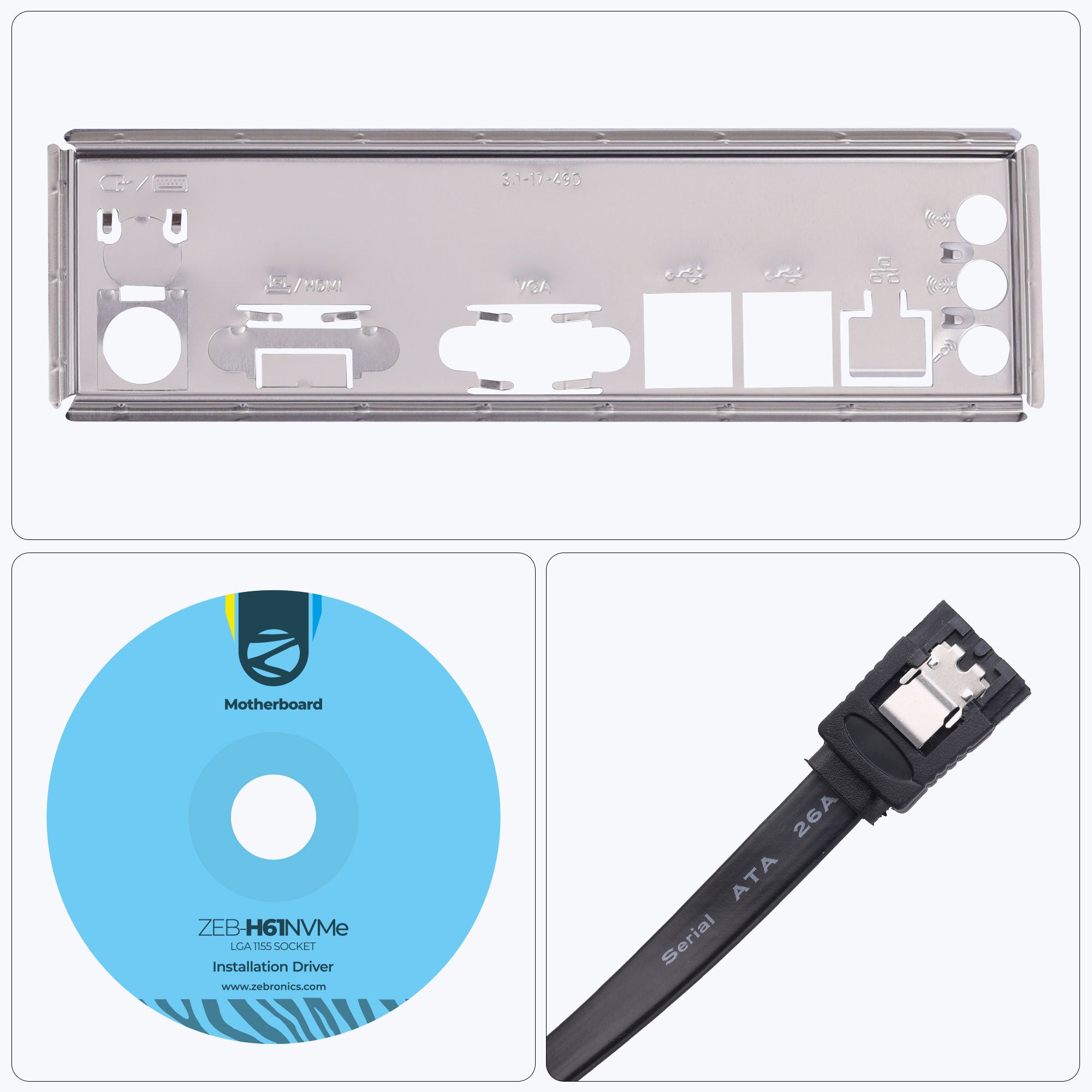

| Package contents | ||
| Motherboard |
1 U |
|
| SATA Cable |
1 U | |
| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U |
