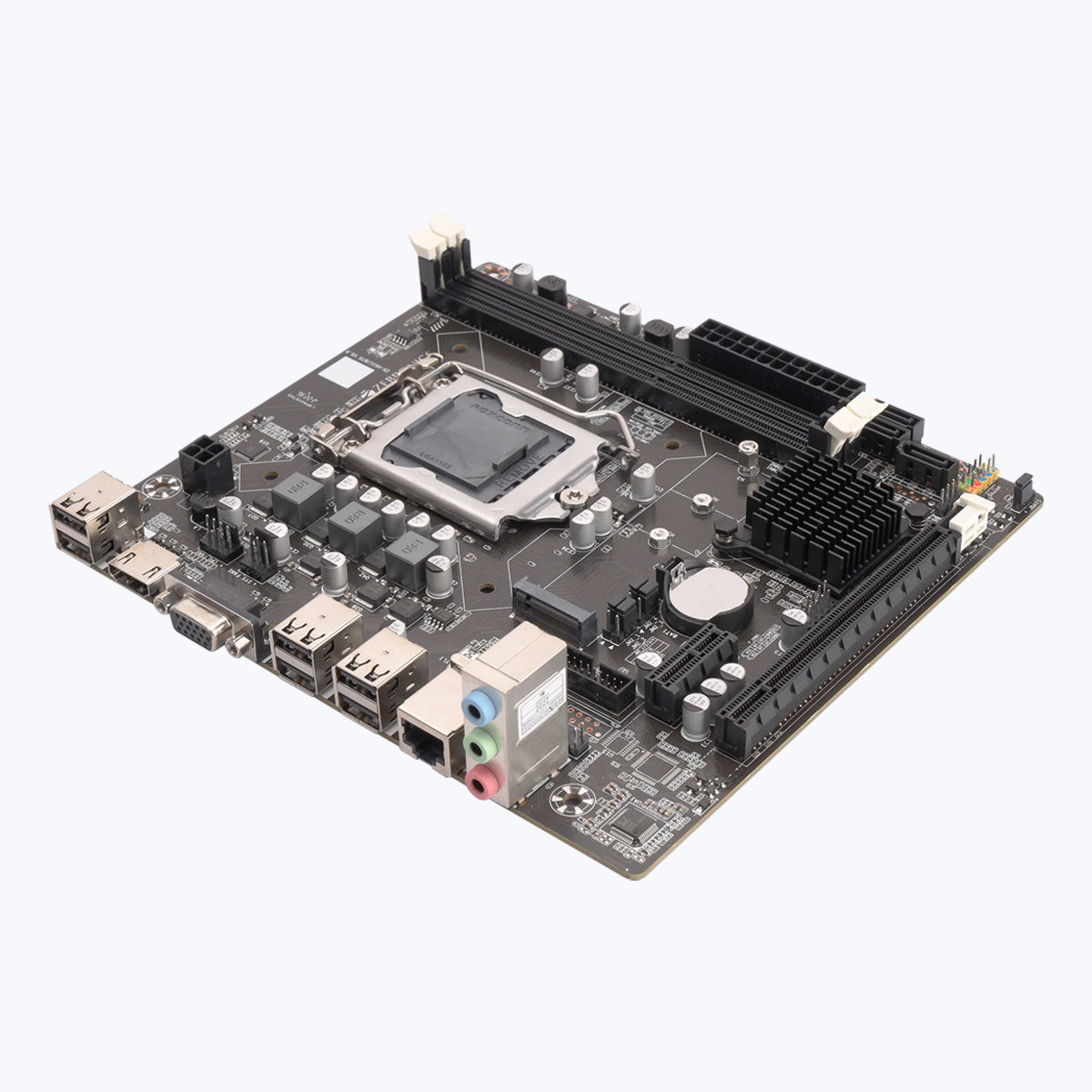

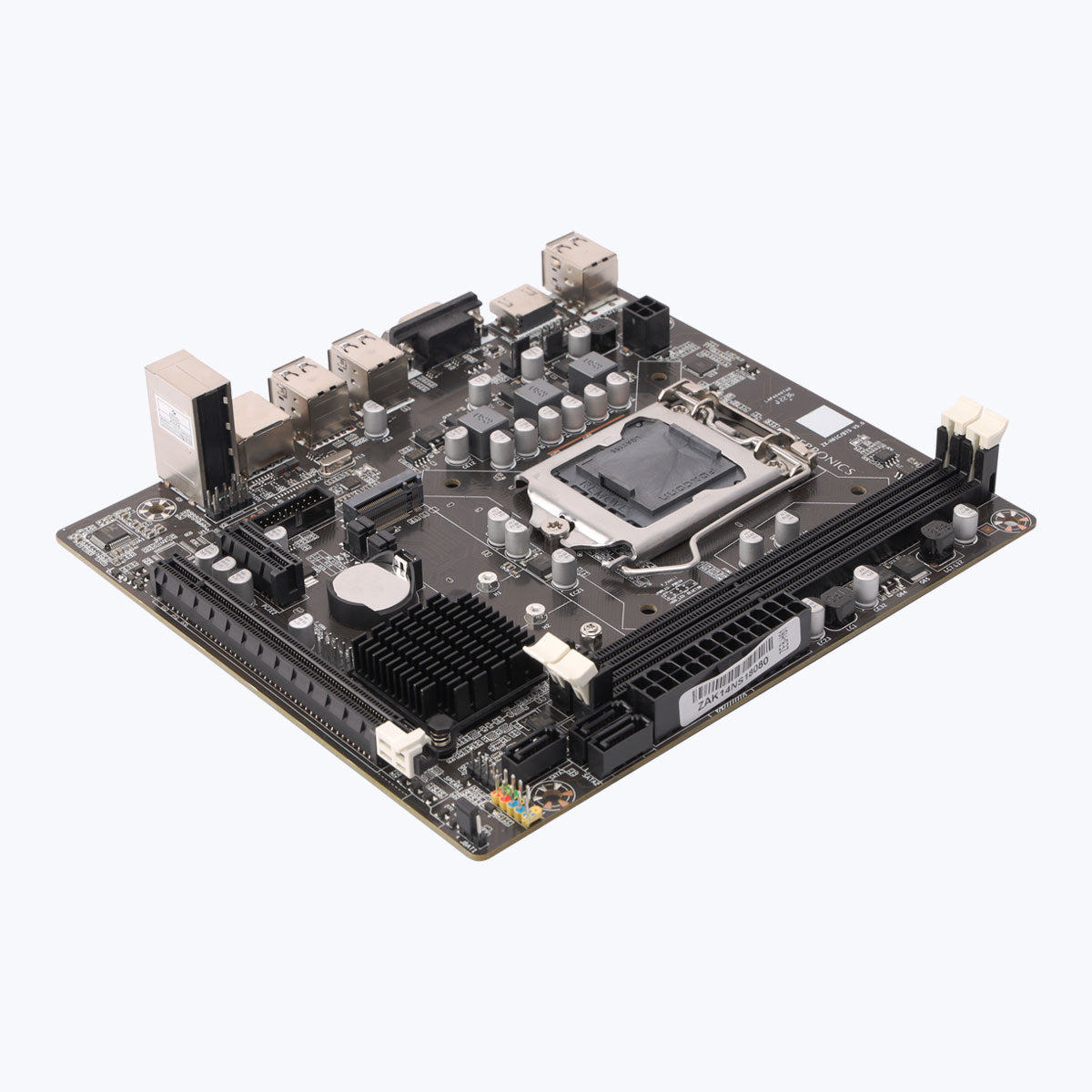

Zeb-H61M2 - LGA 1155 Socket

Sale priceRs. 4,999.00
5.0

Product Type: Motherboards

Specifications


Supported CPU
Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155

Chipset
Intel H61/H67

Memory Supported
2nos DDR3 Dual channel RAM slots
Memory up to 16GB
Supports dual channel DDR3 1066/1333/1600MHz memory

BIOS
AMI BIOS

I/O Interface

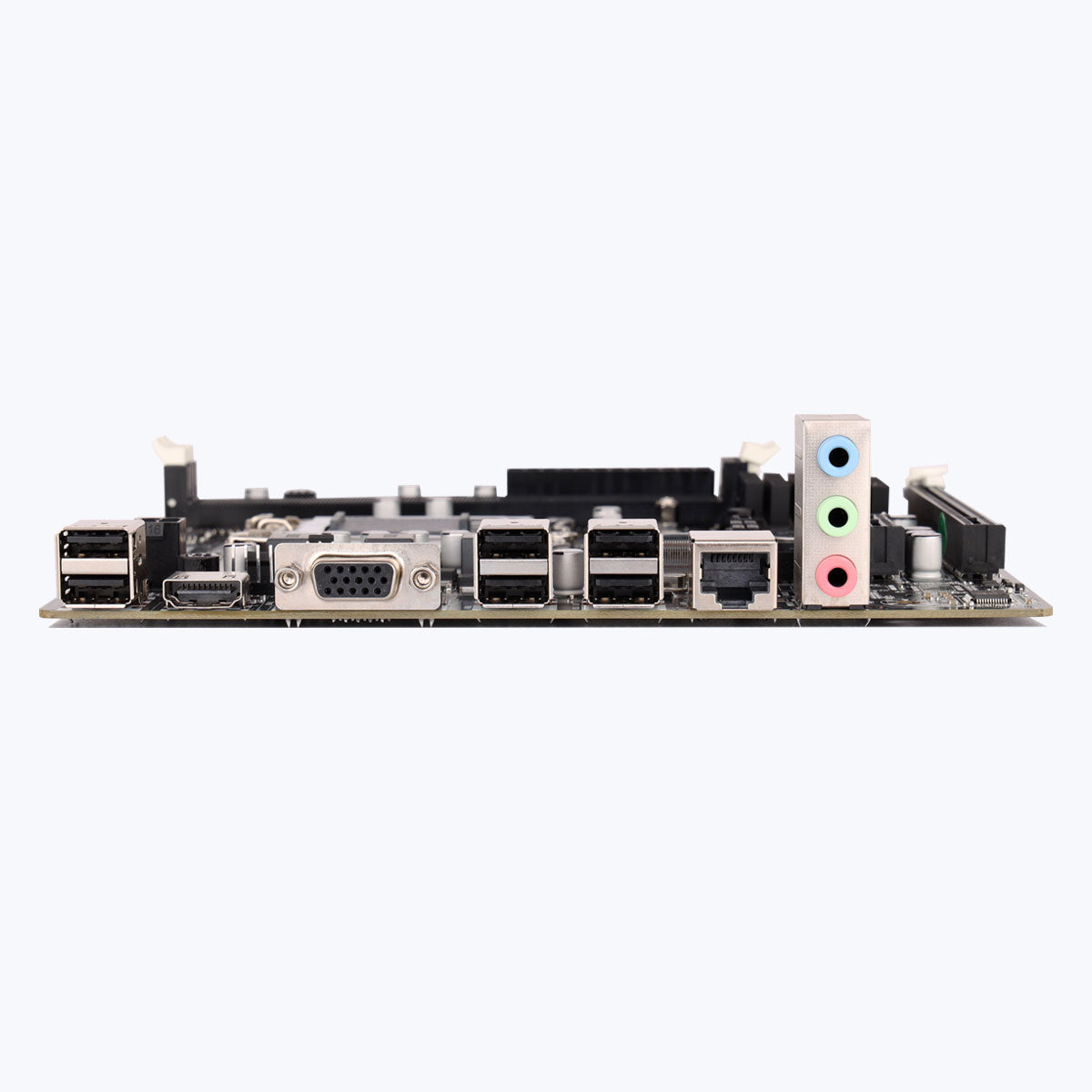

1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio

Onboard Interface
1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,
6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector,
1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports,
1 x 3pin CMOS Header, m.2 Slot

Integrated Sound
With 6-Channel HD Audio Codec onboard

Integrated LAN
Supports Realtek 8106E 10/100 Mbps
Expansion Slot
1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot
Form Factor
Micro-ATX

Country of Origin People's Republic of China
