Zeb HDTVI D5
New
Inclusive of all taxes
- ICR / AGC / BLC / AWB
- UTC / WDR / DNR / DWDR
- AHD / CVI / TVI / CVBS

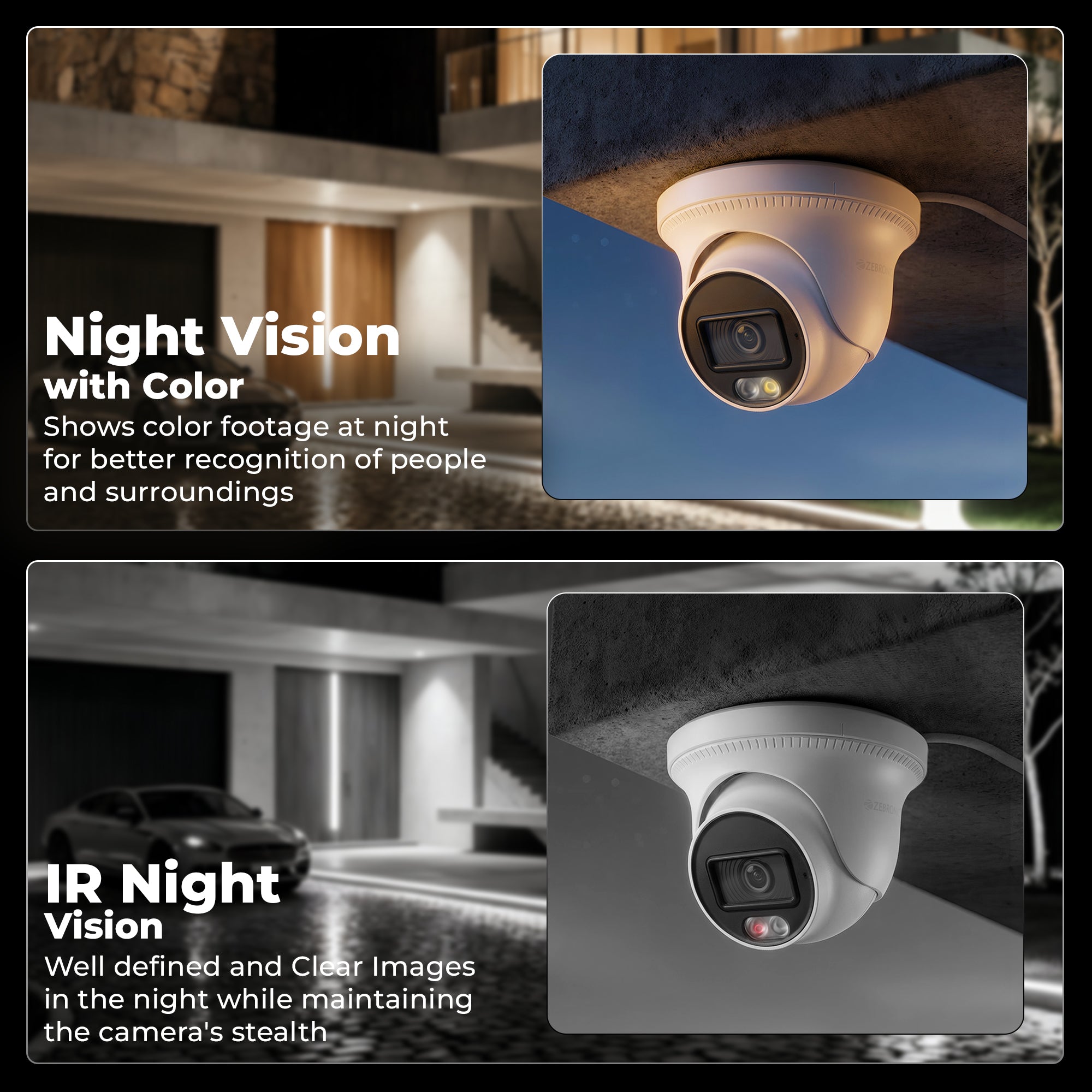

- 1 IR + 1 Warmlight LED

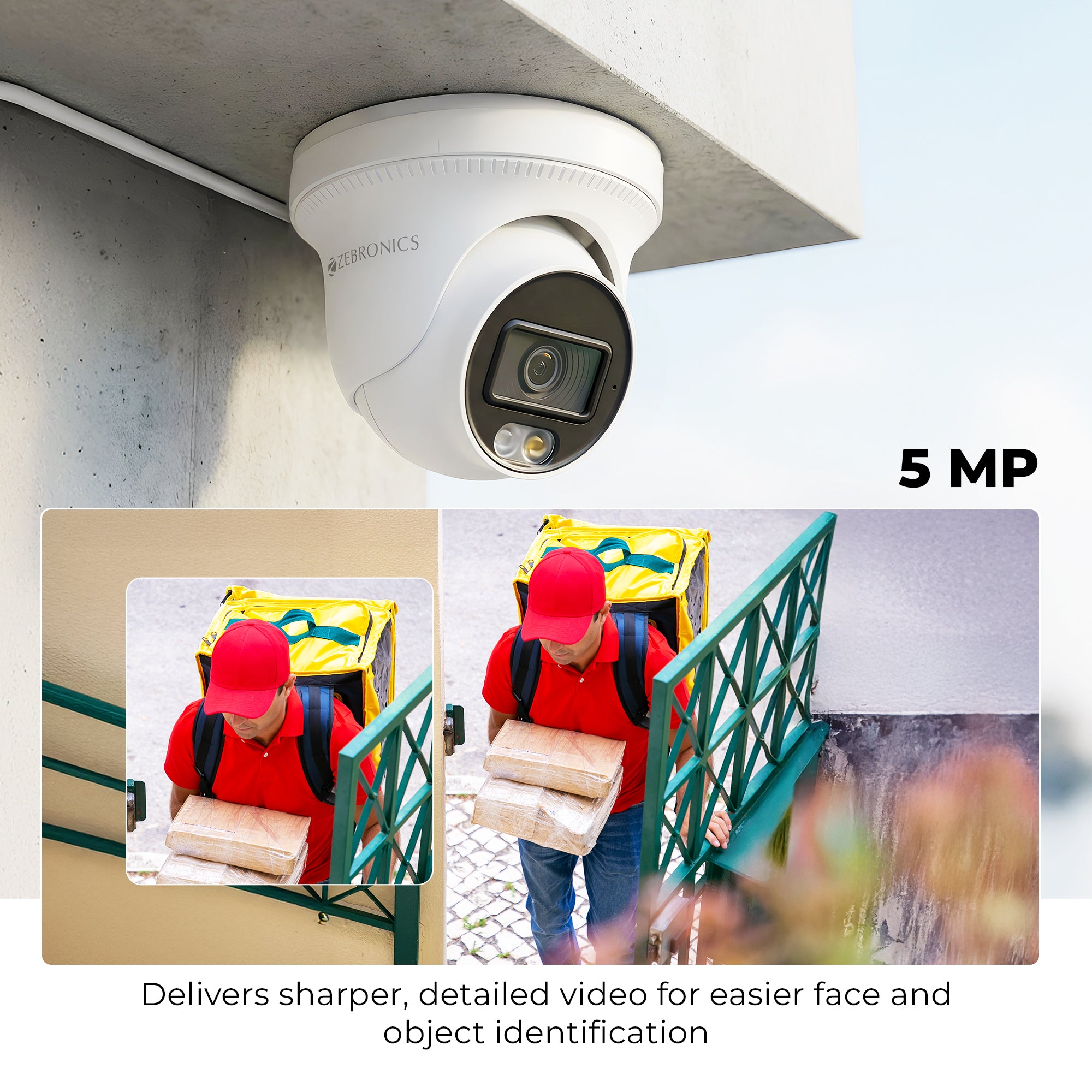

- 5 Megapixels

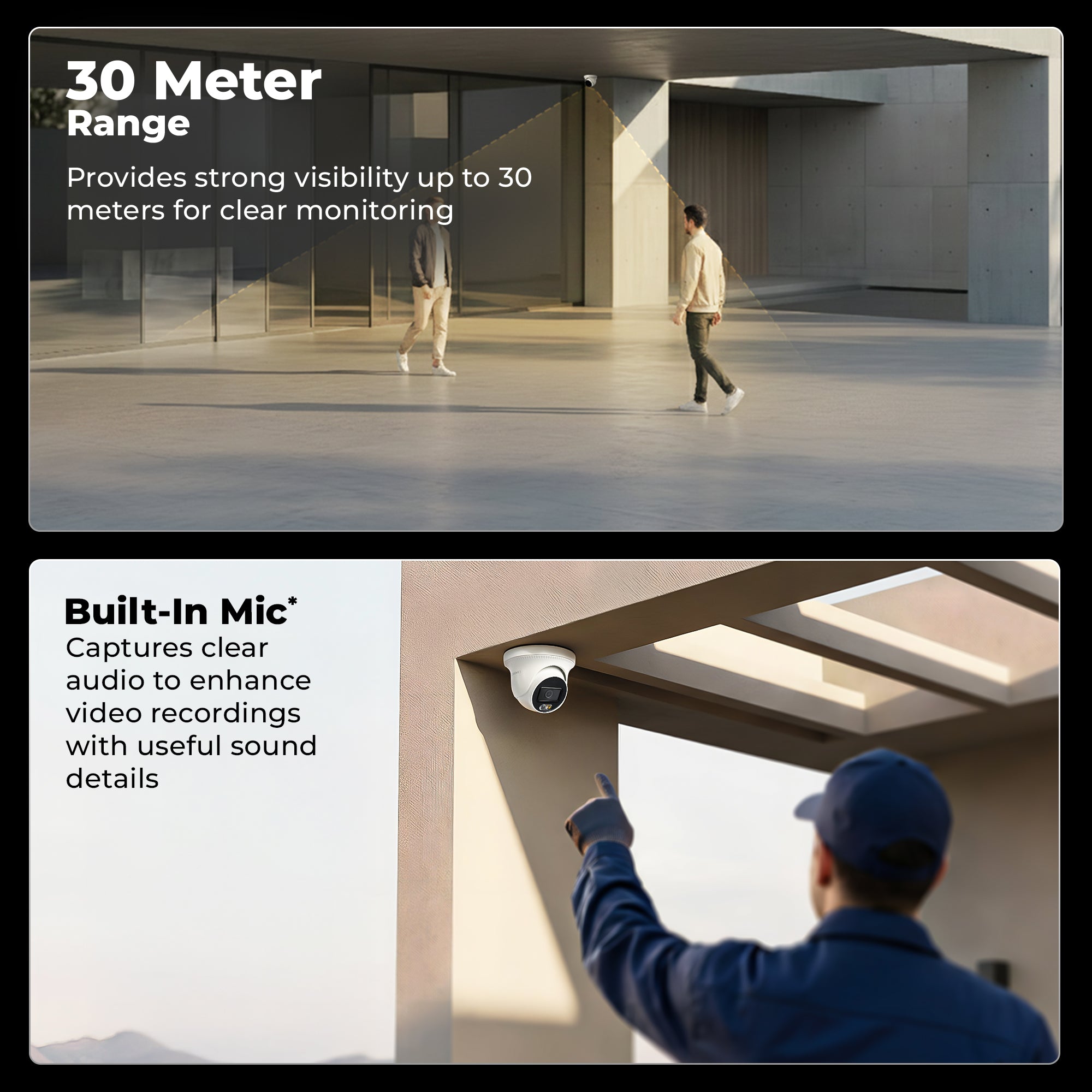

- 30M IR Range (Max.)
- Weather Proof
- Progressive Image Scanning
- Low Illumination

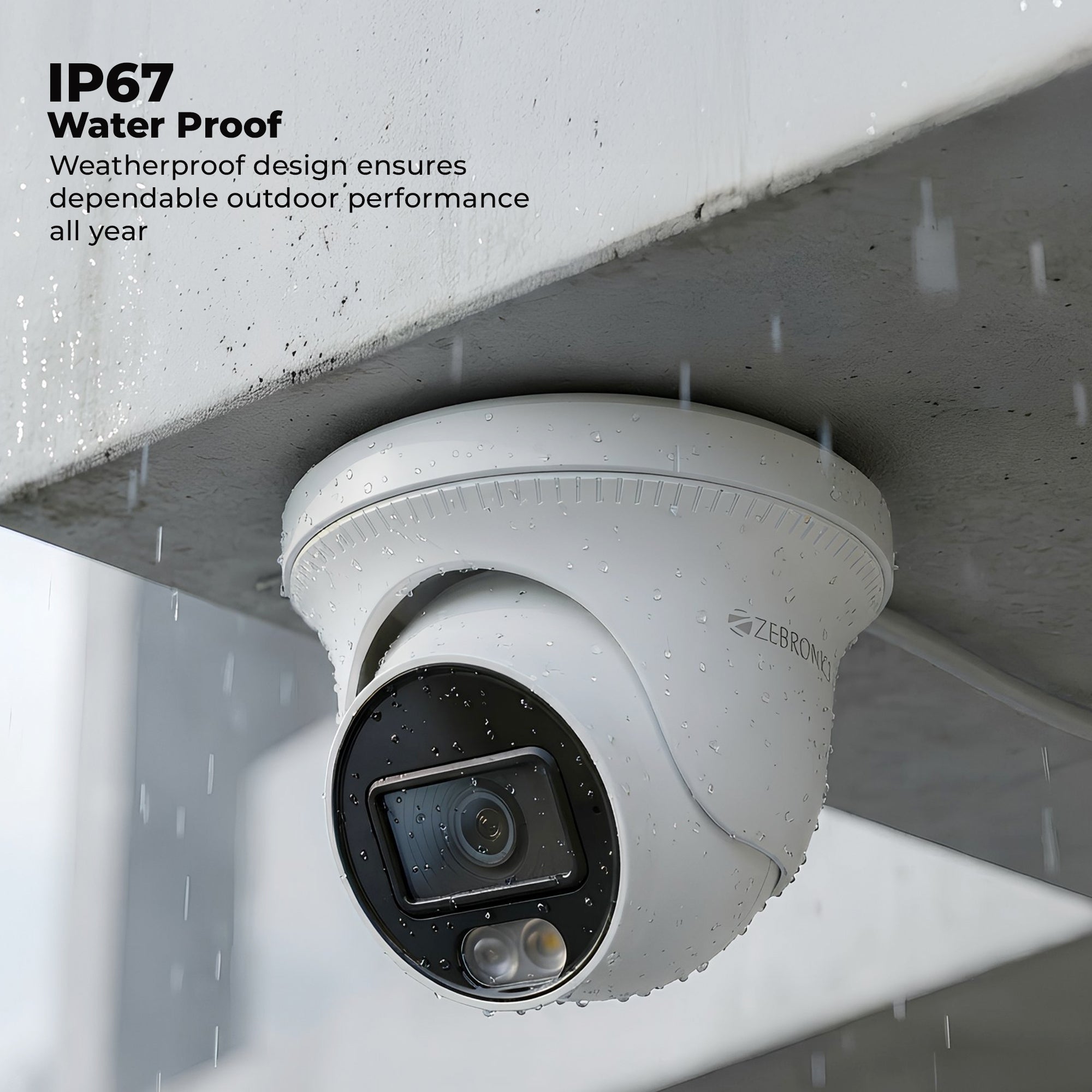

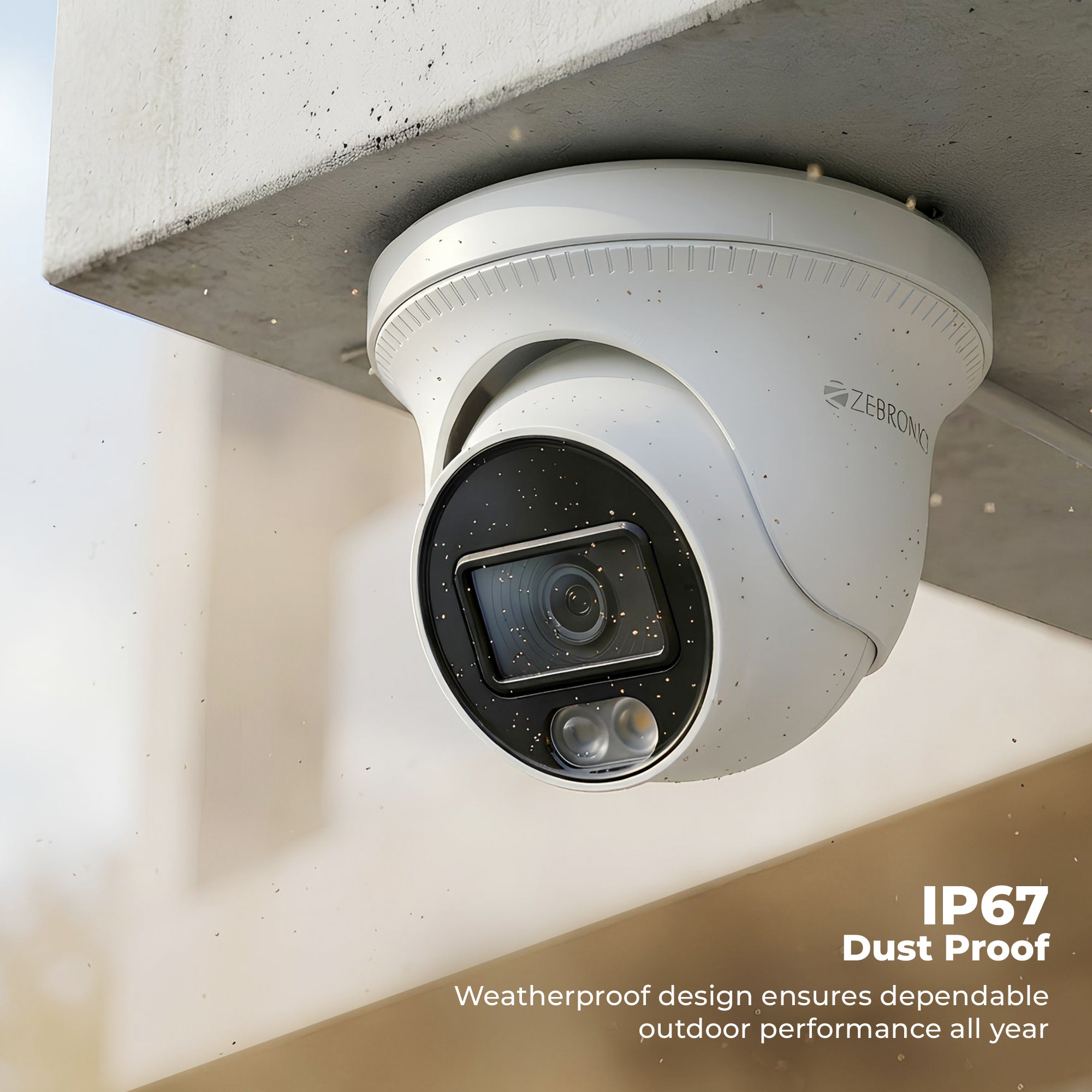

- IP67 Water and Dustproof

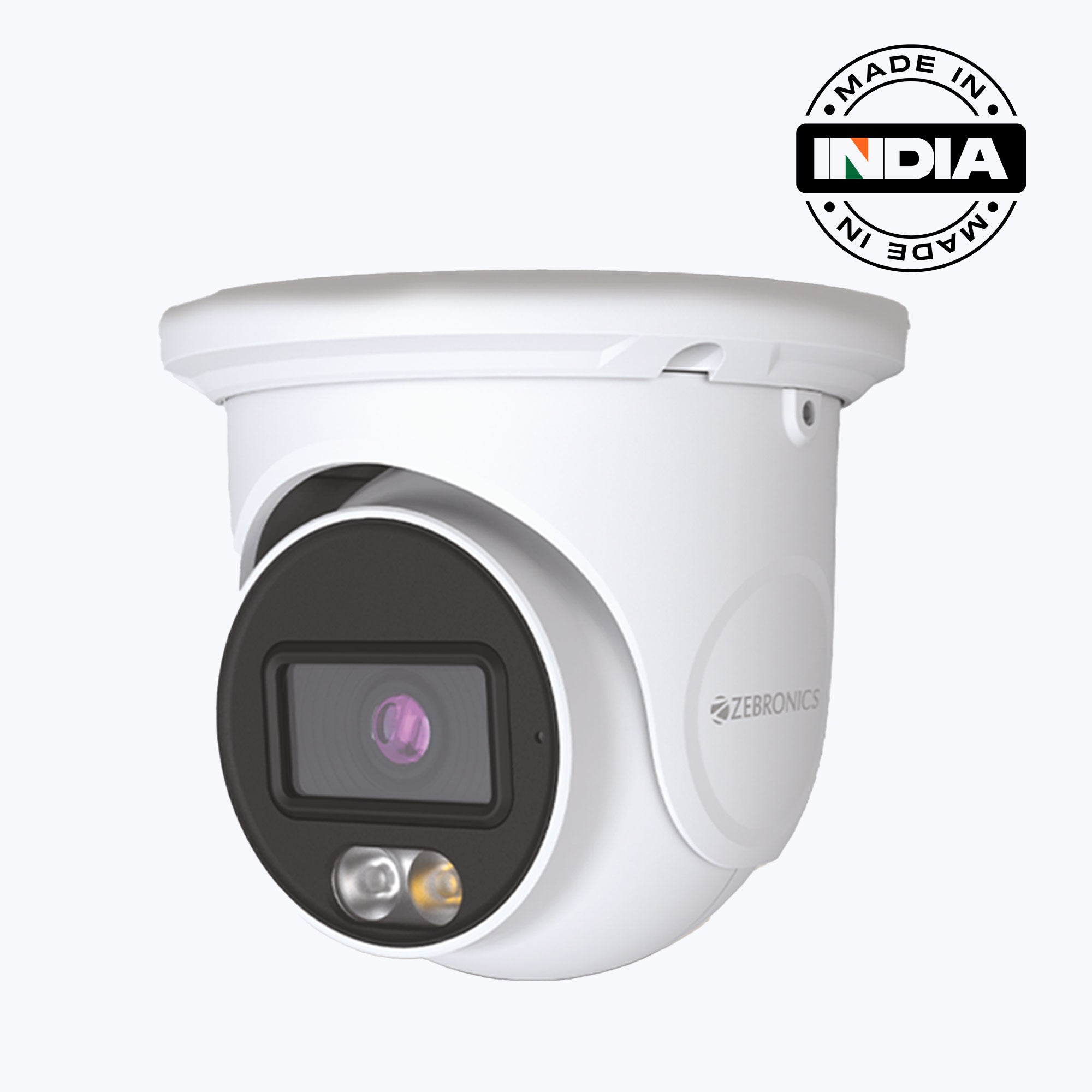

Product Type: HD Dome
Zeb HDTVI D5
Sale price₹ 5,999.00
Features
| ICR | AGC | BLC | AWB | |
| WDR | DNR | DWDR | |
| AHD | CVI | TVI | CVBS | |
| 1 IR + 1 Warmlight LED | |
| 5 Megapixels | |
| 30M IR Range (Max.) | |
| Weather Proof | |
| Progressive Image Scanning | |
| Low Illumination | |
| IP67 Water and Dustproof |
Specifications
| Camera | ||
| Minimum illumination | 0.005lux @F1.2, AGC ON; 0 lux ( LED ON) | |
| Image Sensor |
1/2.5" CMOS sensor | |
| Shutter speed |
1/50(1/60) to 1/100,000 seconds | |
| Angle of view |
2.8mm: Horizontal: 96°; Vertical: 53°; Diagonal: 112° | |
| Scanning system |
PAL/NTSC | |
| Lens | ||
| Focus Length |
2.8mm (Fixed) | |
| Mount Type / Lens | M12 | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Lens | 2.8mm | |
| Max. Aperture | F1.6 | |
| Night Vision | ||
| IR Cut filter | Yes | |
| IR Range | 20-30m | |
| IR Power On | Auto Control | |
| Camera Features | ||
| OSD Support | Yes | |
| No of IR LEDs | 1 IR LED | |
| Day/Night | Yes | |
| Noise Reduction |
Yes | |
| Picture Adjustment | Yes | |
| WDR | Yes (D-WDR) | |
| White Balance | Automatic | |
| AGC (Gain Control) | Yes | |
| ICR (Infrared Cut Removable Filter) | Auto(ICR)/Color/B/W | |
| Back Light Compensation | Yes | |
| Video output |
TVI:2944×1656@20fps, 2560×1440@25/30fps AHD:2944×1656@20fps, 2560×1440@25/30fps CVI:2560×1440@25/30fps CVBS:PAL/NSTC |
|
| Weatherproof Standard | IP67 | |
| S/N Ratio | >52dB (AGC OFF) | |
| General | ||
| Power Consumption | DC12V±10% | |
| Operating Temperature |
-10°C~40°C/ Less than 90%RH | |
| Weight | 300g | |
| Body type | Metal & Plastic | |
| Dimension (Dia x H) |
11.3 x 8.4 cm | |
| Package Dimension(W x D x H) | 13.5 x 13.5 x 11.5 cm | |
| Country of Origin | India | |
| Package Contents | ||
| CCTV Camera | 1 U | |
| Mounting Kit | 1 U | |
| QR Code User Manual | 1 U |
LEGAL METROLOGY PRODUCT INFORMATION
| Manufactured by: | |
| Marketed by: | |
| Country of Origin: | |
| Generic Name: | Zebronics CCTV Dome Camera |
| Package Contents: | CCTV Camera - 1 U, Mounting Kit - 1 U, QR Code User Manual - 1 U |
| Customer Complaints: | Telephone - 044-4000 0004 | Email - enquiry@zebronics.com |
