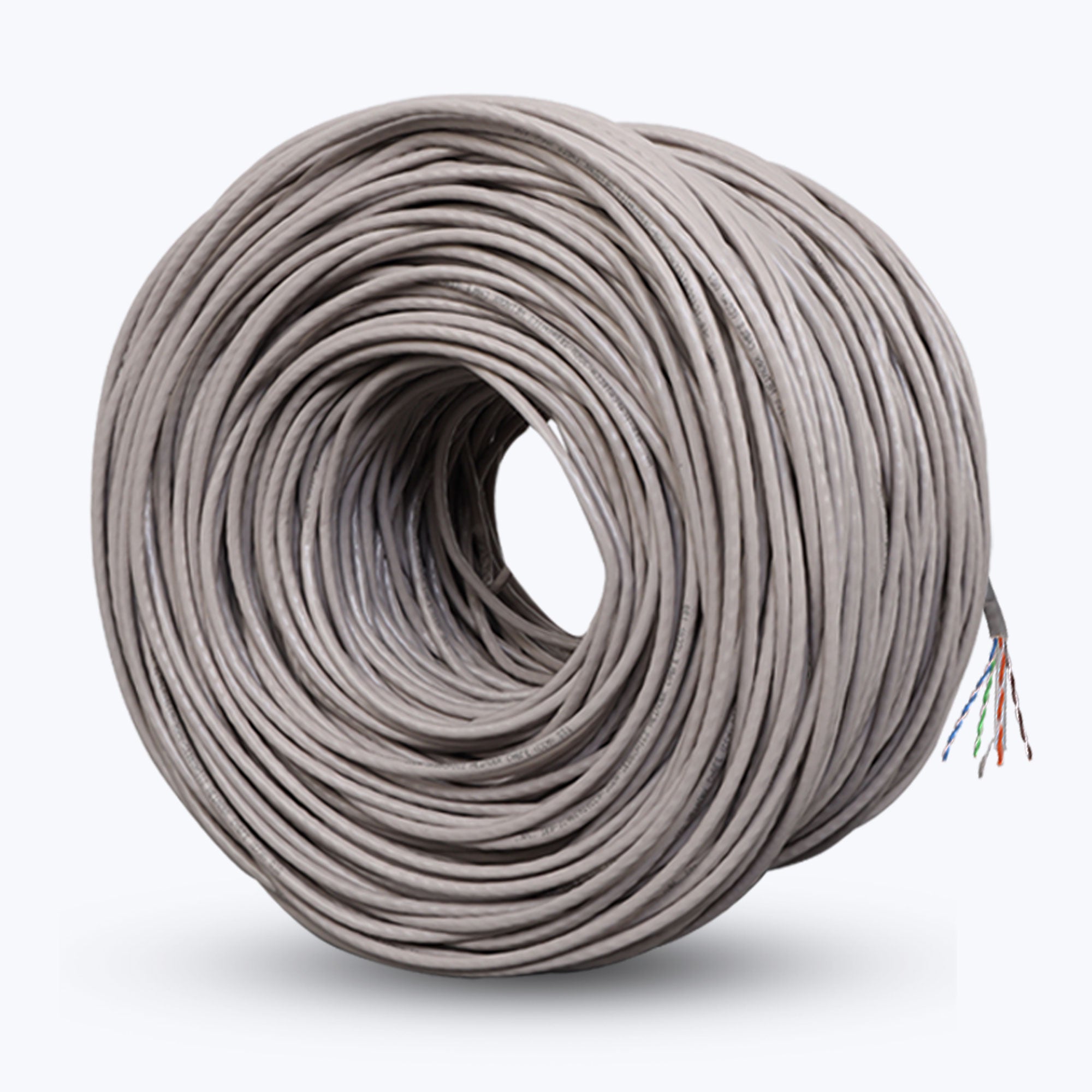

ZEB-IC4PCAT6CCA 305M
New
Inclusive of all taxes
- CAT 6
- UTP
- 305 meter
- CCA
- PVC Insulation
Product Type: CAT 6 Cables
ZEB-IC4PCAT6CCA 305M
Sale price₹ 7,320.00
Features
| CAT 6 | |
| UTP | |
| 305 meter | |
| CCA | |
| PVC Insulation |
Specifications
| Model Name | ZEB-IC4PCAT6CCA-305M | |
| No. of wires | 4 pairs | |
| Cable length |
305 meter | |
| Conductor material |
24 AWG CCA | |
| Construction diameter |
0.5mm ±0.01 mm | |
| Insulation material |
High Density Polyethylene | |
| Insulation thickness |
0.02mm | |
| Insulation diameter |
0.92mm ±0.01 mm | |
| Jacket material |
PVC |
|
| Jacket thickness |
0.66 mm |
|
| Jacket diameter |
6.0mm ±0.02 mm | |
| Jacket color |
Gray | |
| Separator |
PE Central cross separator | |
| Conductor resistance |
<9.38Ω/km at 20°C | |
| Weight | 7.1 Kg | |
| Package dimension (W x D x H) |
38 x 38.4 x 22.2 cm | |
| Country of Origin |
PRC | |
| Mechanical Properties | ||
| Operation Temperature |
-20°C to +70°C |
|
| Storage Temperature |
-40°C to +50°C |
|
| Bending Radius |
<25.4 mm at -20°C to ±1°C |
|
| Pulling Force | 11.5 Kgs | |
| Package Content | ||
| Cable | 305 Meter x 1U |
