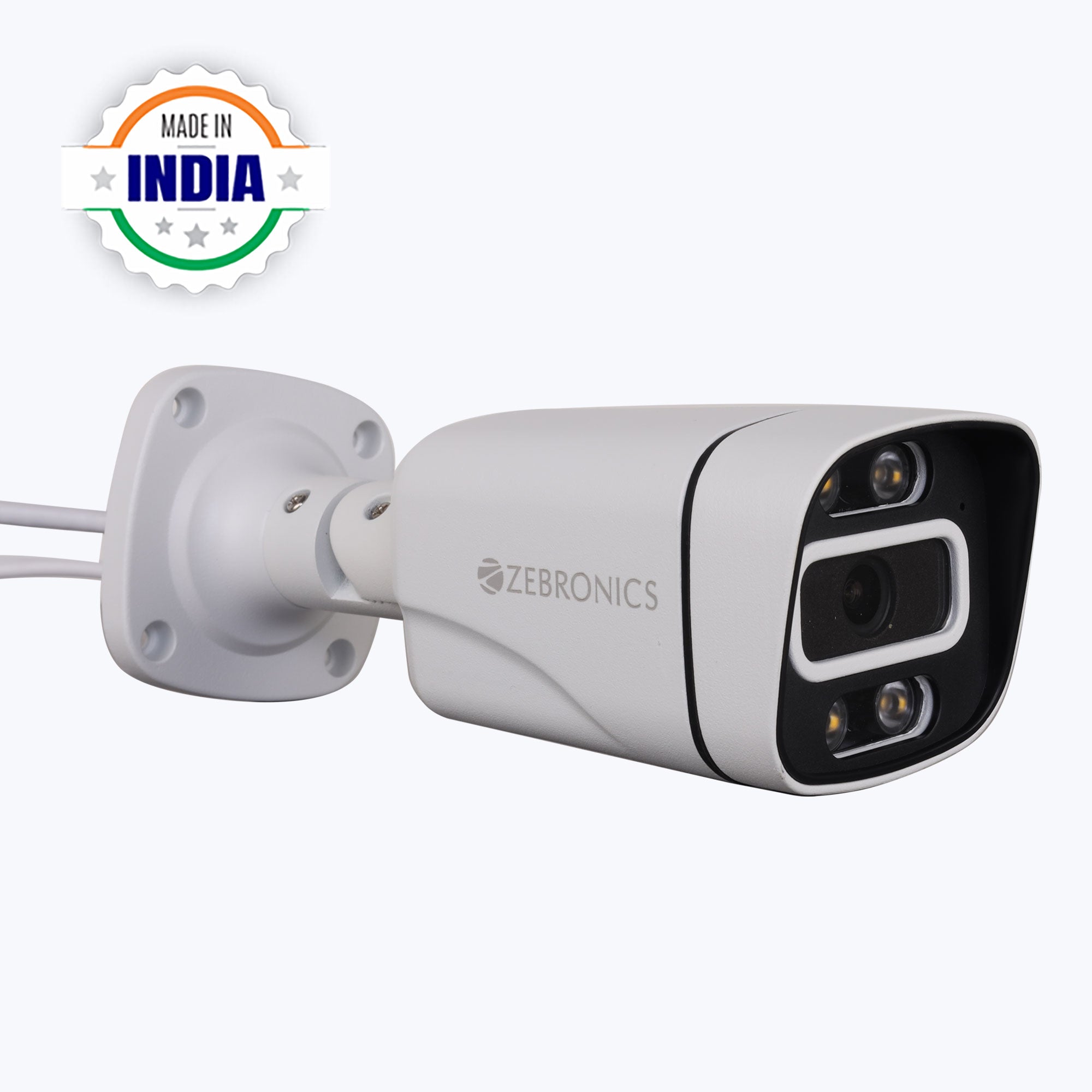

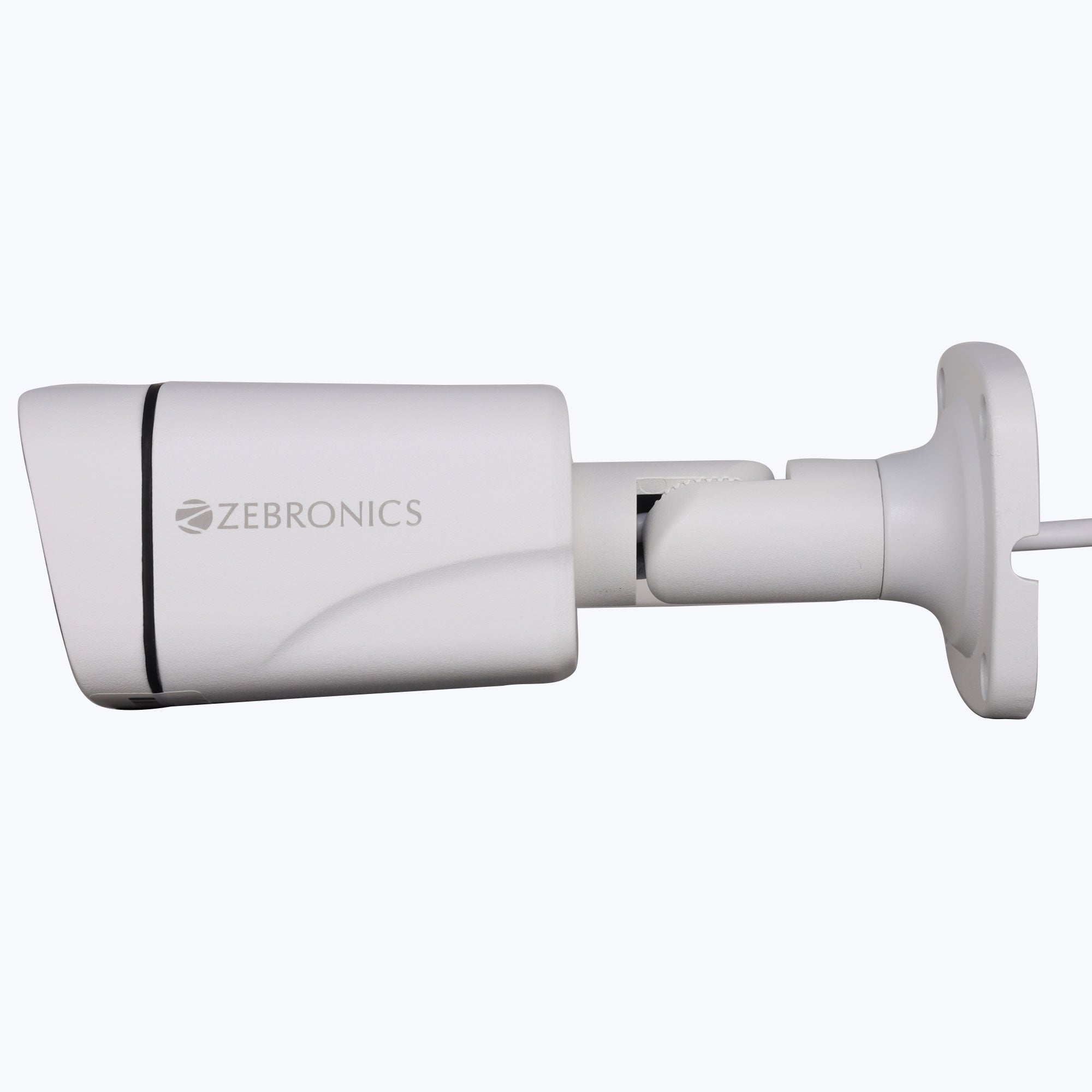

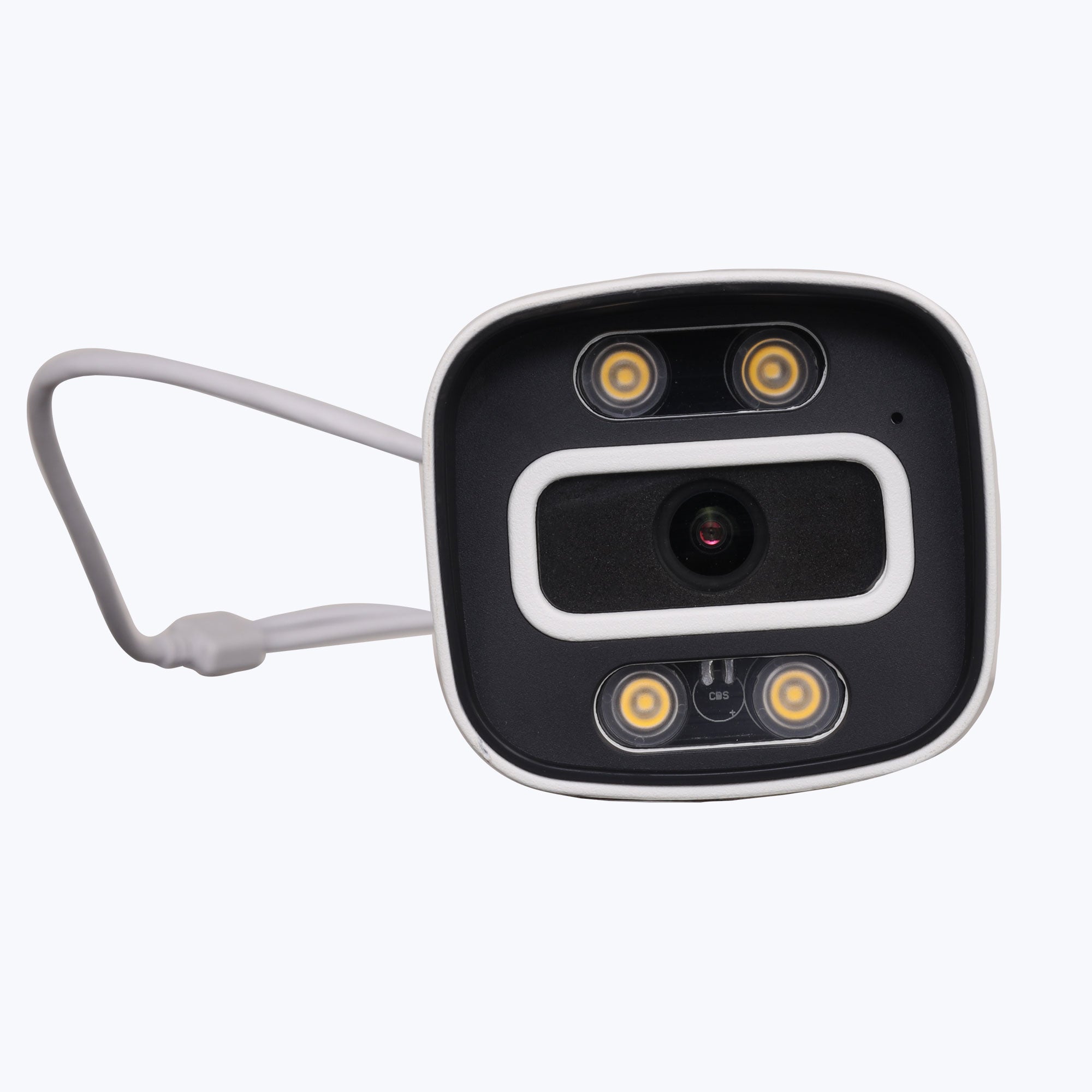

Zeb IPPBSL5
New
Inclusive of all taxes
- ICR / AGC / BLC / AWB / HLCUTC / WDR / DNR / DWDR
- 2 IR Array LED
- 5 Mega Pixels
- 20M IR Range (Max.)
- CMOS Image Sensor
- Low Illumination
Product Type: IP Bullet
Zeb IPPBSL5
Sale price₹ 5,599.00
Features
| ICR / AGC / BLC / AWB / HLC |
|
| UTC / WDR / DNR / DWDR |
|
| AHD / CVI / TVI / CVBS |
|
| 4 IR Array LED | |
| 5 Mega Pixels | |
| 20M IR Range (Max.) | |
| WeatherProof | |
| Progressive Image Sensor | |
| Low Illumination |
Specifications
| Camera | ||
| Image processor |
1/2.7" cmos sensor | |
| Minimum illumination |
0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (IR on) |
|
| Image Sensor |
1/2.9" cmos sensor | |
| Shutter speed |
1/50(1/60) to 1/100,000 seconds | |
| Angle of view |
3.6mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109° |
|
| Scanning system |
Progressive Scan |
|
| Lens | ||
| Focus Length |
3.6 mm (Fixed) | |
| Mount Type / Lens | M12 | |
| Focus Control | Fixed | |
| Lens Type | Removable | |
| Auto Iris |
Support |
|
| Lens | 3.6mm | |
| Max. Aperture | F2,0 | |
| Night Vision | ||
| IR Cut filter | Yes | |
| IR Range | 20-25M |
|
| IR Power On | Auto Control | |
|
Camera Features |
||
| OSD Support | No | |
| No of IR LEDs | 4 array IR LED |
|
| Day/Night | Support | |
| Picture Adjustment | Yes | |
| WDR | Yes | |
| White Balance | Automatic | |
| AGC (Gain Control) | Auto / Manual | |
| ICR (Infrared Cut Removable Filter) | Auto(ICR)/Color/B/W | |
| Back Light Compensation | BLC / HLC / DWDR | |
|
Video output |
||
| Main stream |
2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) |
|
| Sub stream | 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity." | ||
| Video Compression | H.265 | |
| Weatherproof Standard |
IP66 Weather-Proof | |
| S/N Ratio | >120dB |
|
| Reset | Yes | |
| General | ||
| Power Consumption | DC12V±10%, 500mA to 1A / 7.5W to 10W POE | |
| Operating Temperature |
10°C ~ +60°C/ Less than 95%RH | |
| Weight | 200g | |
| Body type | ABS Plastic | |
| Dimension (W x D x H) | 7.5 x 17.88 x 6.9 cm |
|
| Country of Origin | India |
|
| Package Contents | ||
| CCTV Camera | 1 U | |
| Mounting Kit | 1 U | |
| QR Code User Manual | 1 U | |
