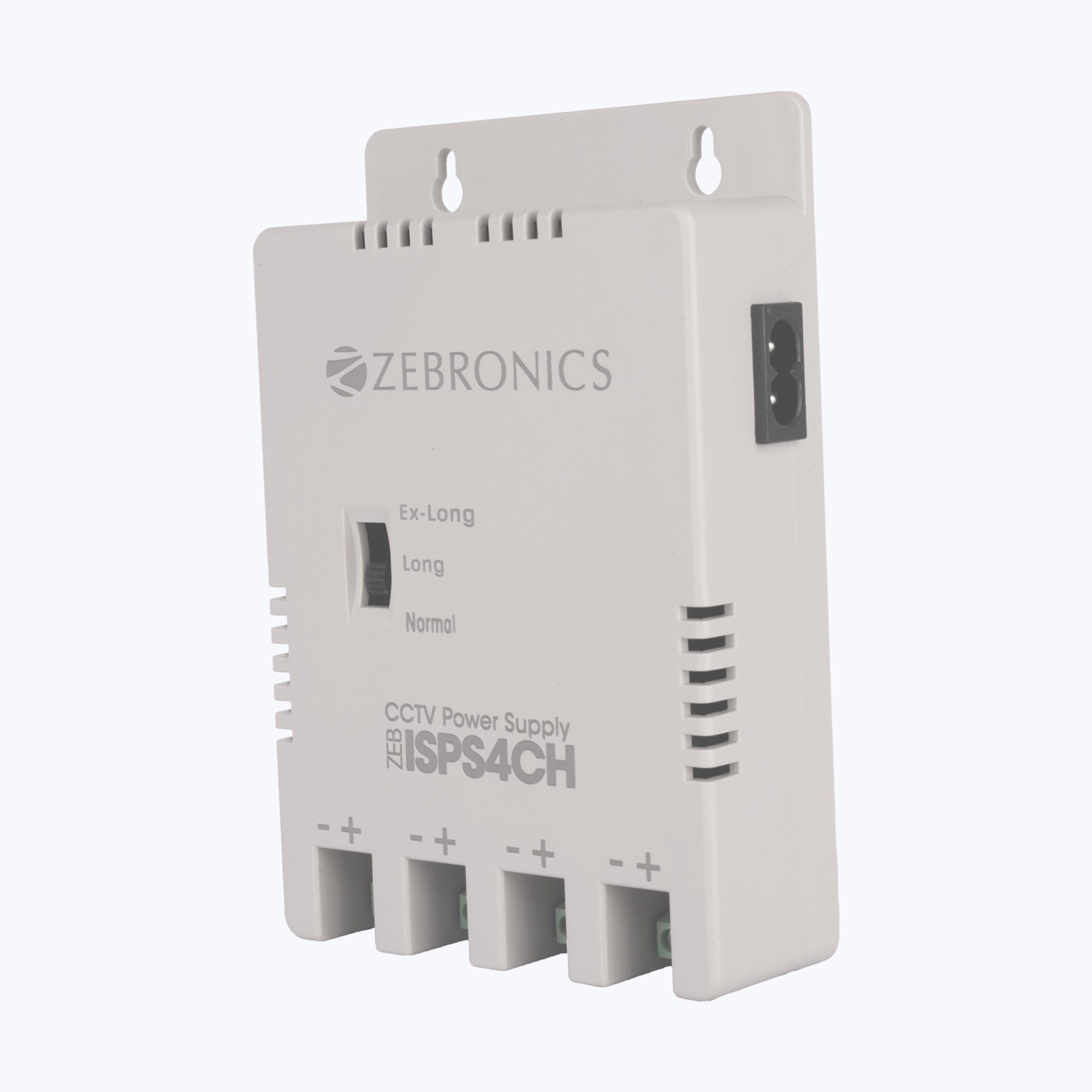

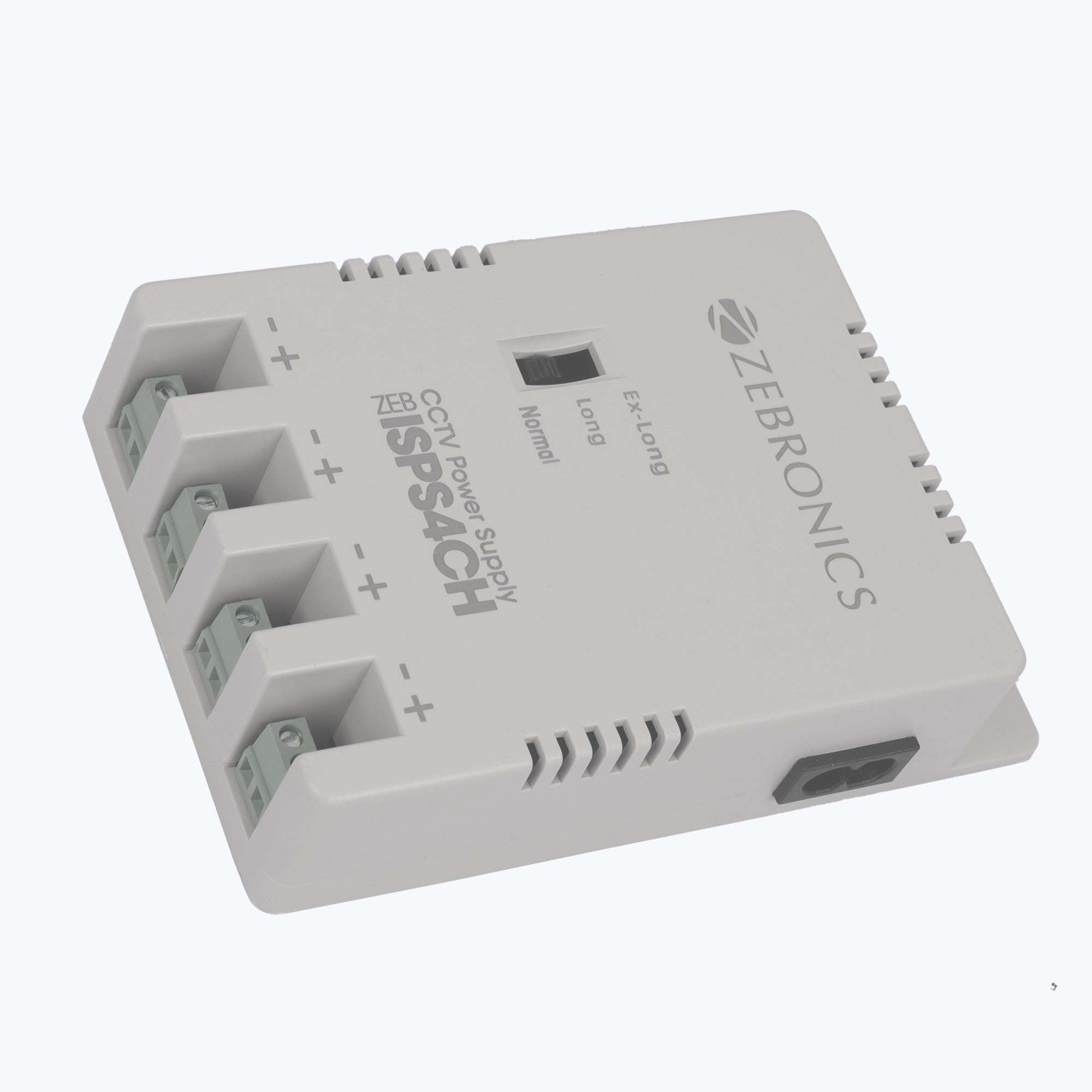

ZEB-ISPS4CH

Sale price₹ 790

Product Type: Indoor Power Supply

Specifications


Input Voltage range AC100V-240V

Input Frequency 50HZ/60HZ

Input Current 0.5A

Output Voltage DC12V

Output Current 2.5A

Output Power (W) 30W

Ripple 100mV

Hold up Time 16

Turn-on Delay time 2 seconds

Rise & Fall time 20 msec

Output Voltage range

Normal 11.60-12.60V

Medium 12.40-13.40V

High 13.40-14.40V

Over Load Protection Yes

Over Voltage Protection Yes

Short circuit Protection Yes

Over Temperature Protection Yes

Operation Temperature 0° to 40° C

Storage Temperature -10° to 50° C

Operation Humidity 10% -- 90% non condensing

Storage Humidity   10% -- 90% non condensing

Input Terminals 8-tail socket

Output Terminals European terminal

LED Indicators Red

Enclosure Material Plastic

Weight with power cord 300gm

Dimensions (W x D x H) 14.32 x 9.68 x 3.42cm

Country of Origin People's Republic of China

Package Contents

Power Supply 1 Unit

Power Cord Included (1 Meter)
