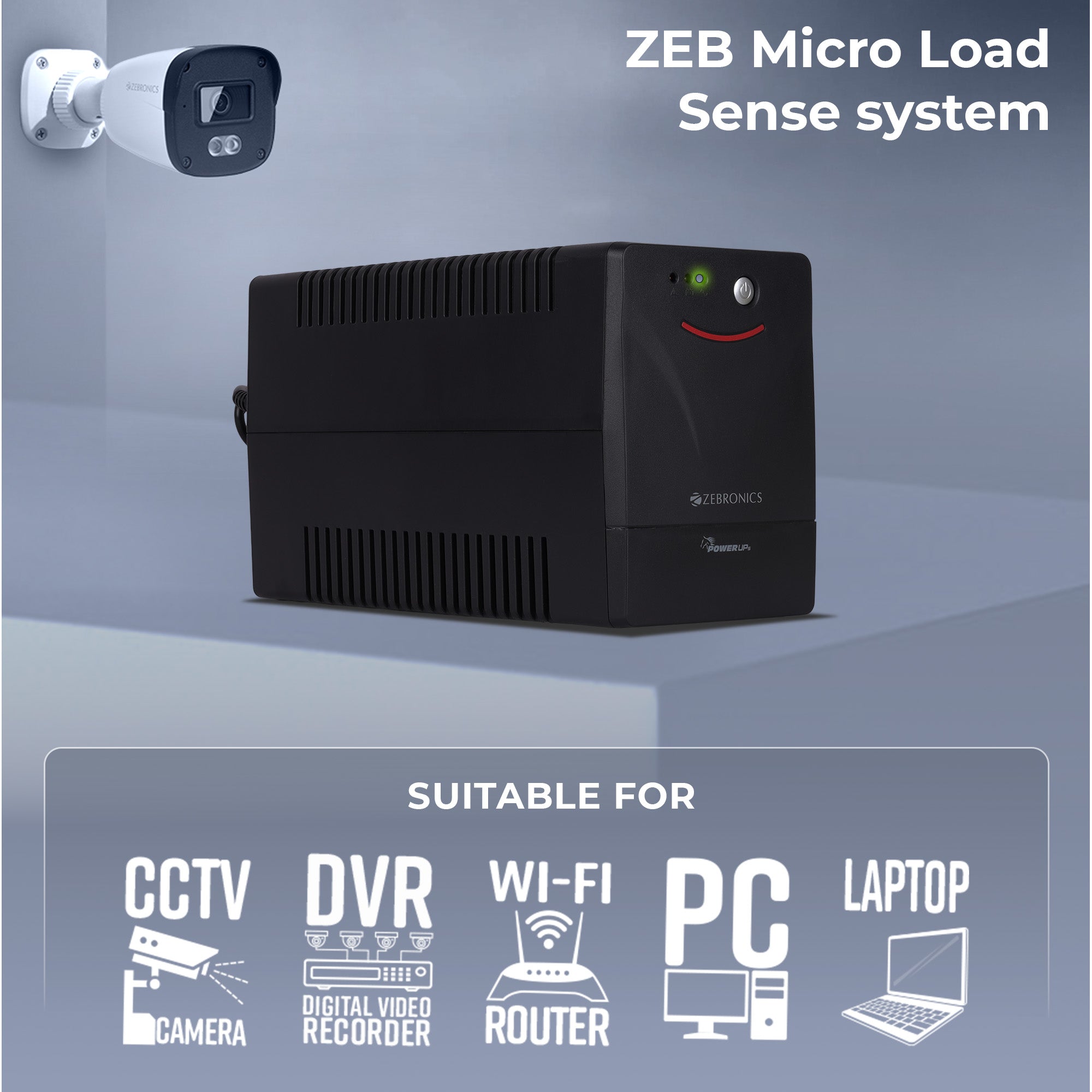

Zeb MLS1255
New
Tax included.
- Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipments
- Wide Input Range
- ZEB Micro Load Sense system, Microprocessor based output load sensing feature,
to sense micro power consumption devices - Backup of upto 6h 30mins* for micro power consumption devices
- Excellent microprocessor control guarantees high reliability
- Advanced 3 Tier battery management system, prolongs battery life by more than 30%.
- Made for extreme Indian Conditions.
- Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output.
- LED & Audible alarms for instant alert signals.
- Line interactive UPS
- Auto restart while AC is recovering
- Double Boost
- Automatic Voltage Regulation (AVR)
Product Type: Micro Load UPS
Zeb MLS1255
Sale price₹ 13,999.00
Features
| Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipments | |
| Wide Input Range | |
| ZEB Micro Load Sense system, Microprocessor based output load sensing feature, to sense micro power consumption devices | |

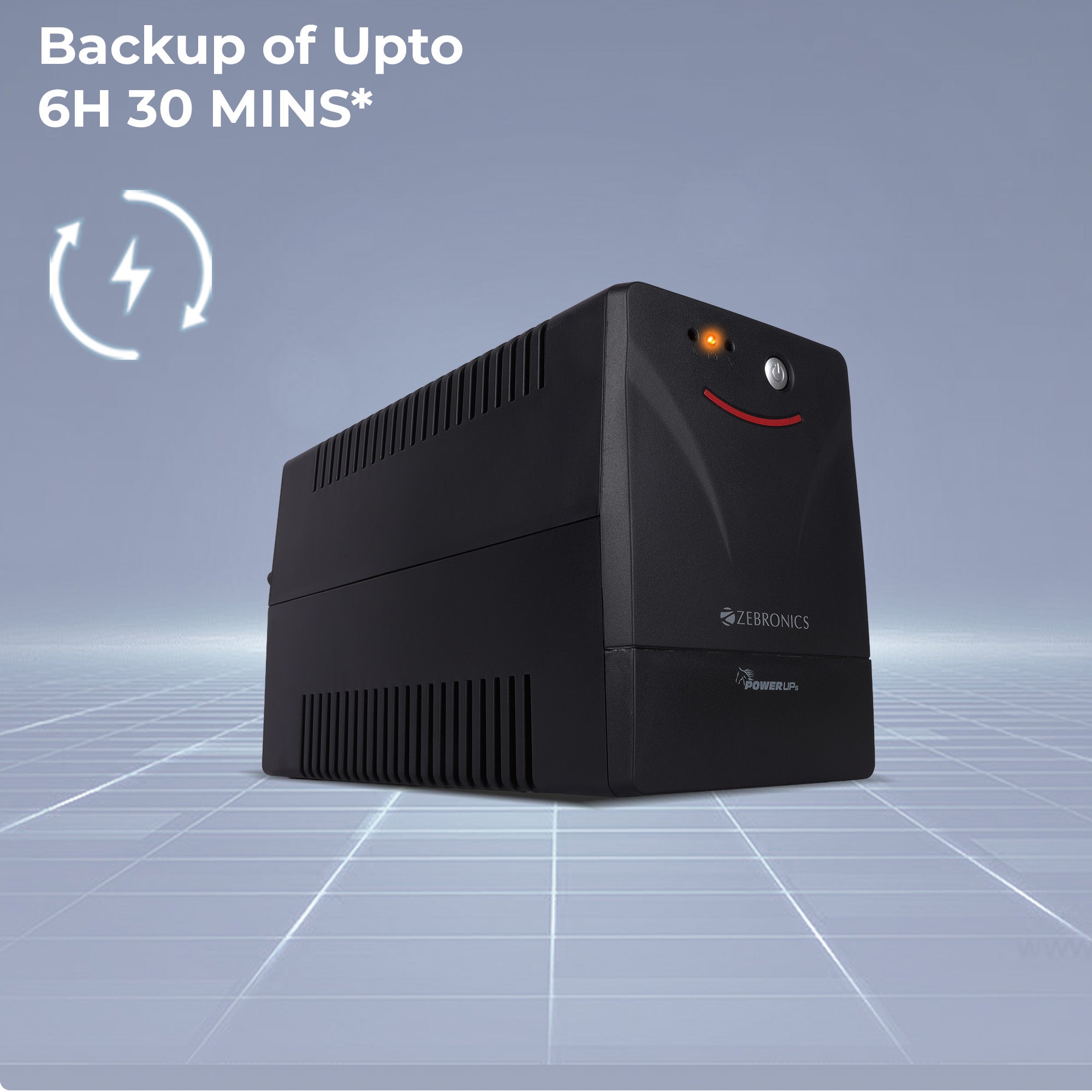

| Backup of upto 6h 30mins* for micro power consumption devices | |

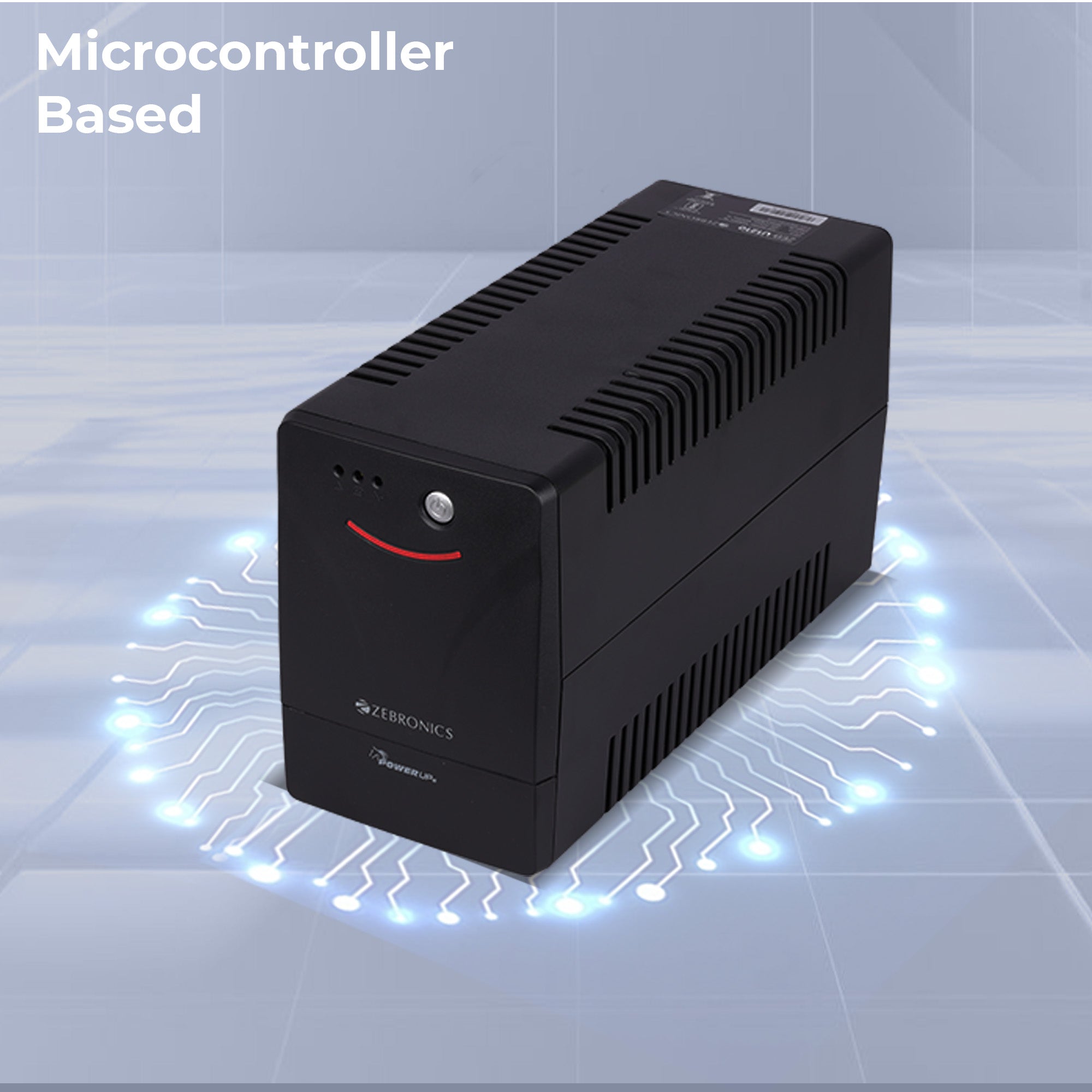

| Excellent microprocessor control guarantees high reliability | |
| Advanced 3 Tier battery management system, prolongs battery life by more than 30%. | |
| Made for extreme Indian Conditions. | |

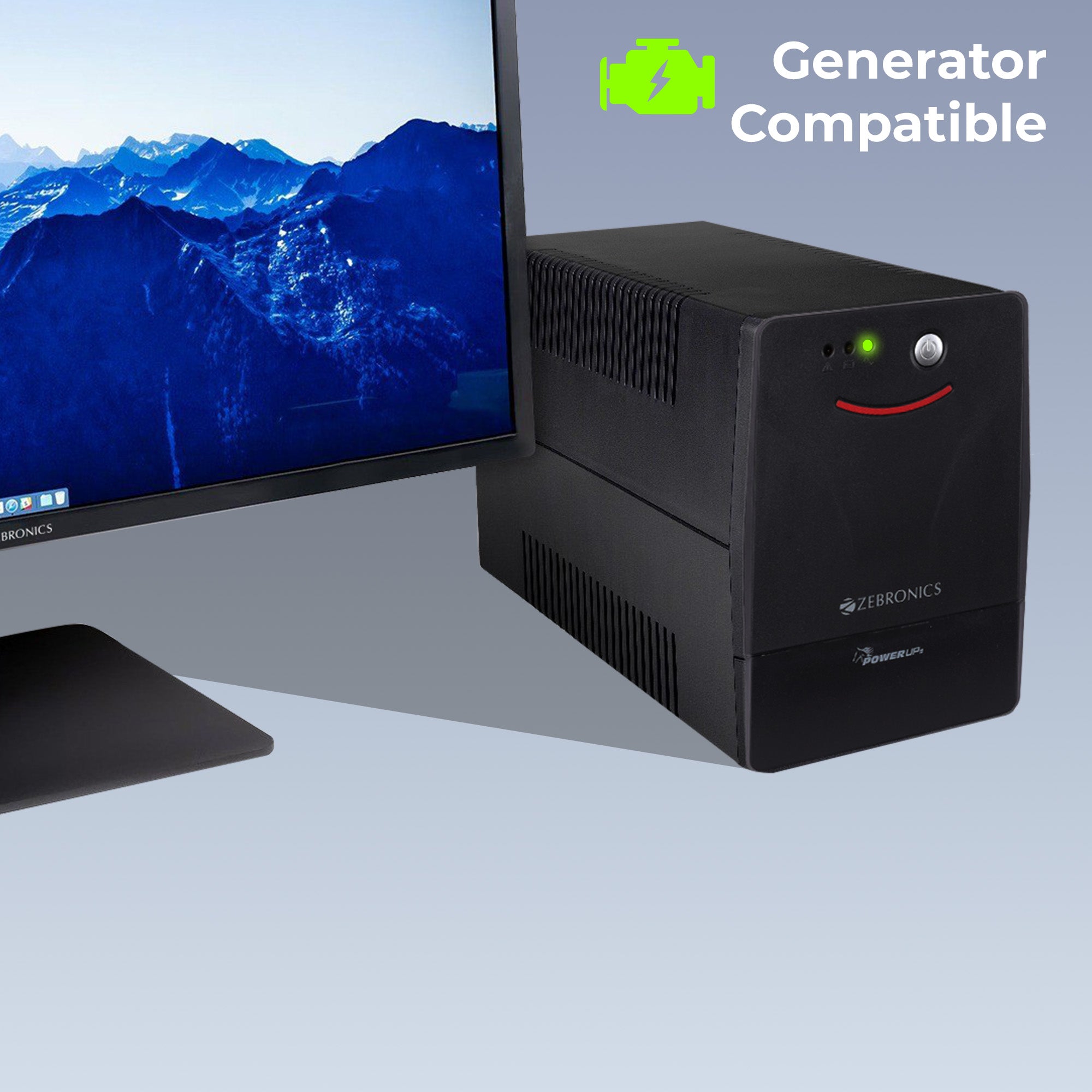

| Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output. | |

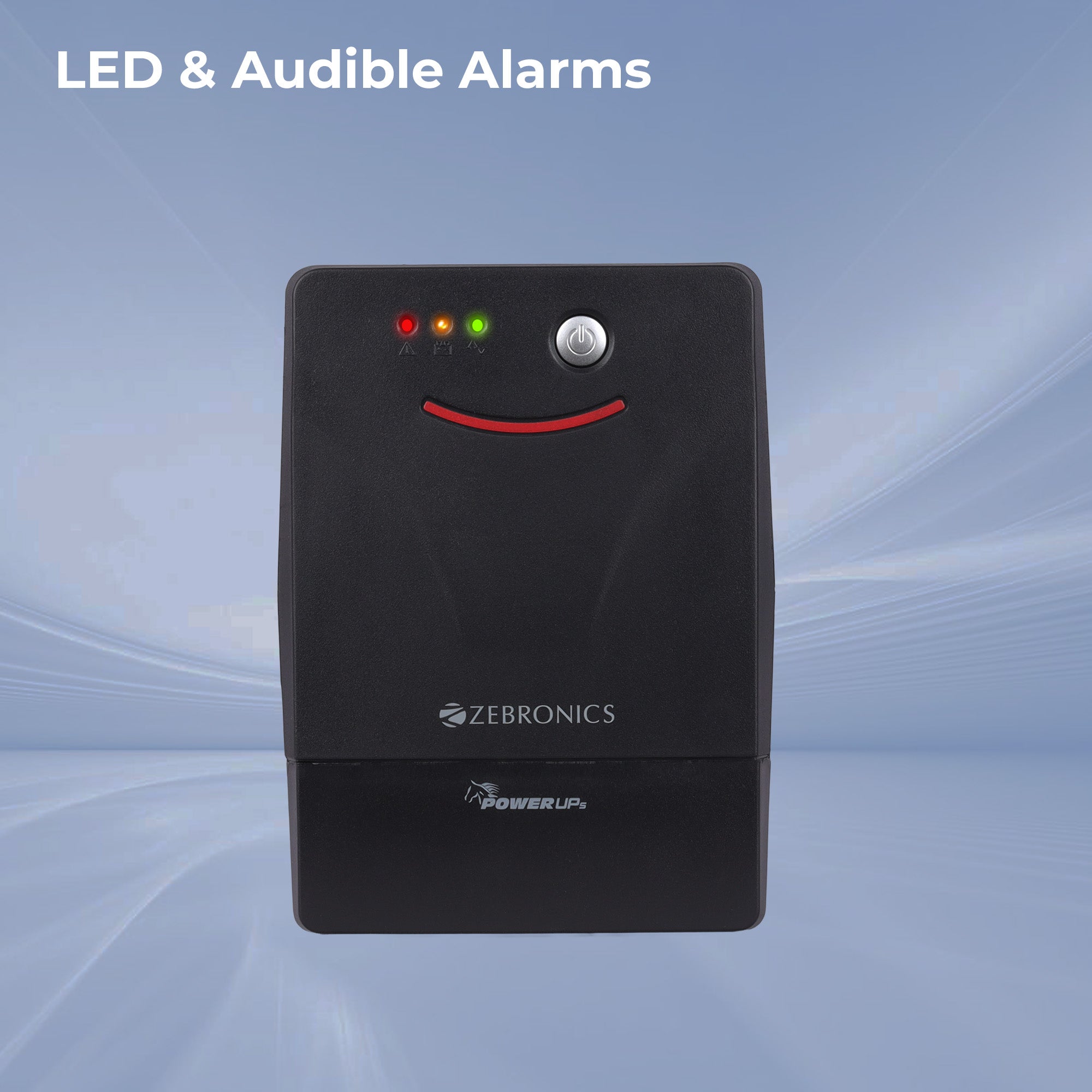

| LED & Audible alarms for instant alert signals. | |
| Line interactive UPS | |
| Auto restart while AC is recovering | |

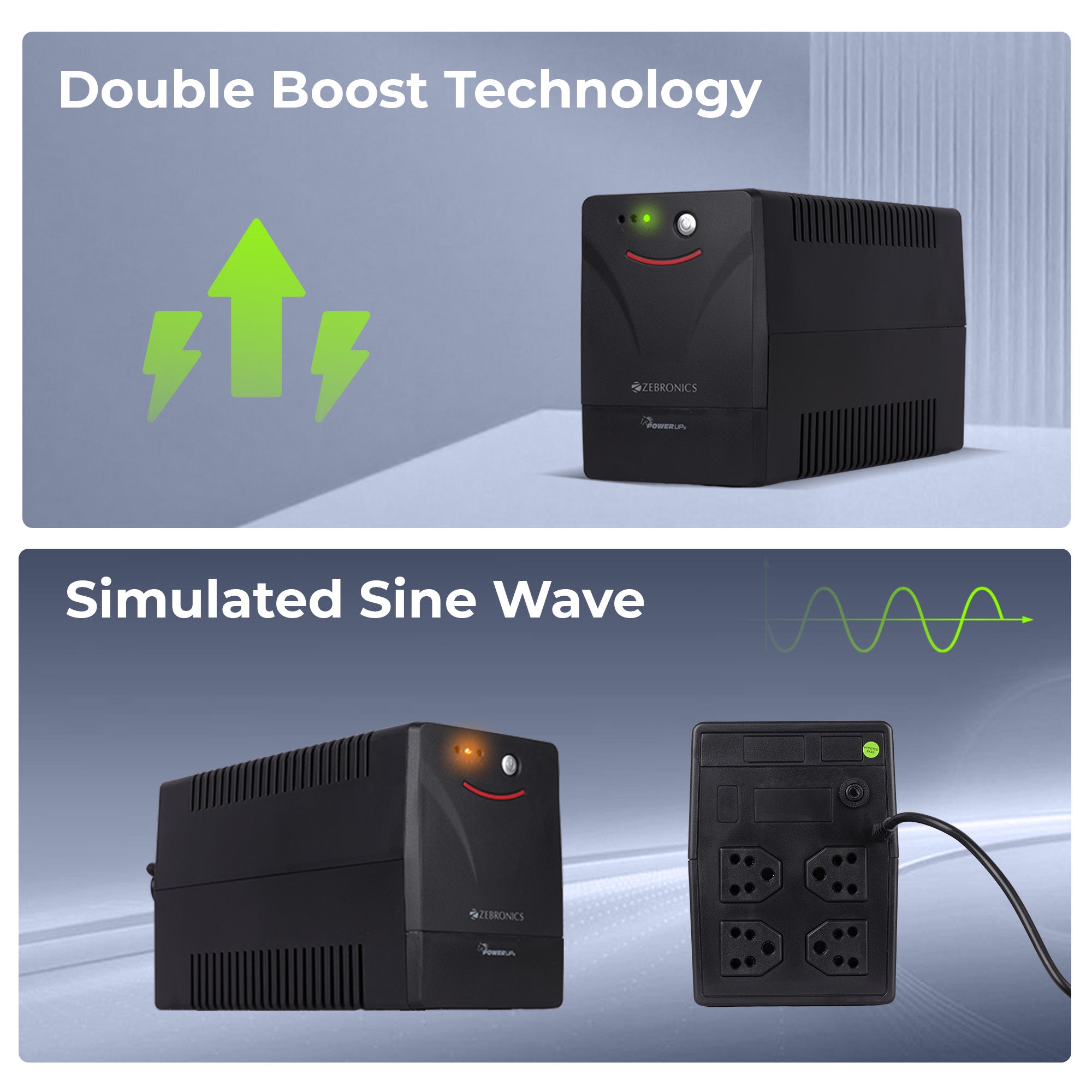

| Double Boost |
|

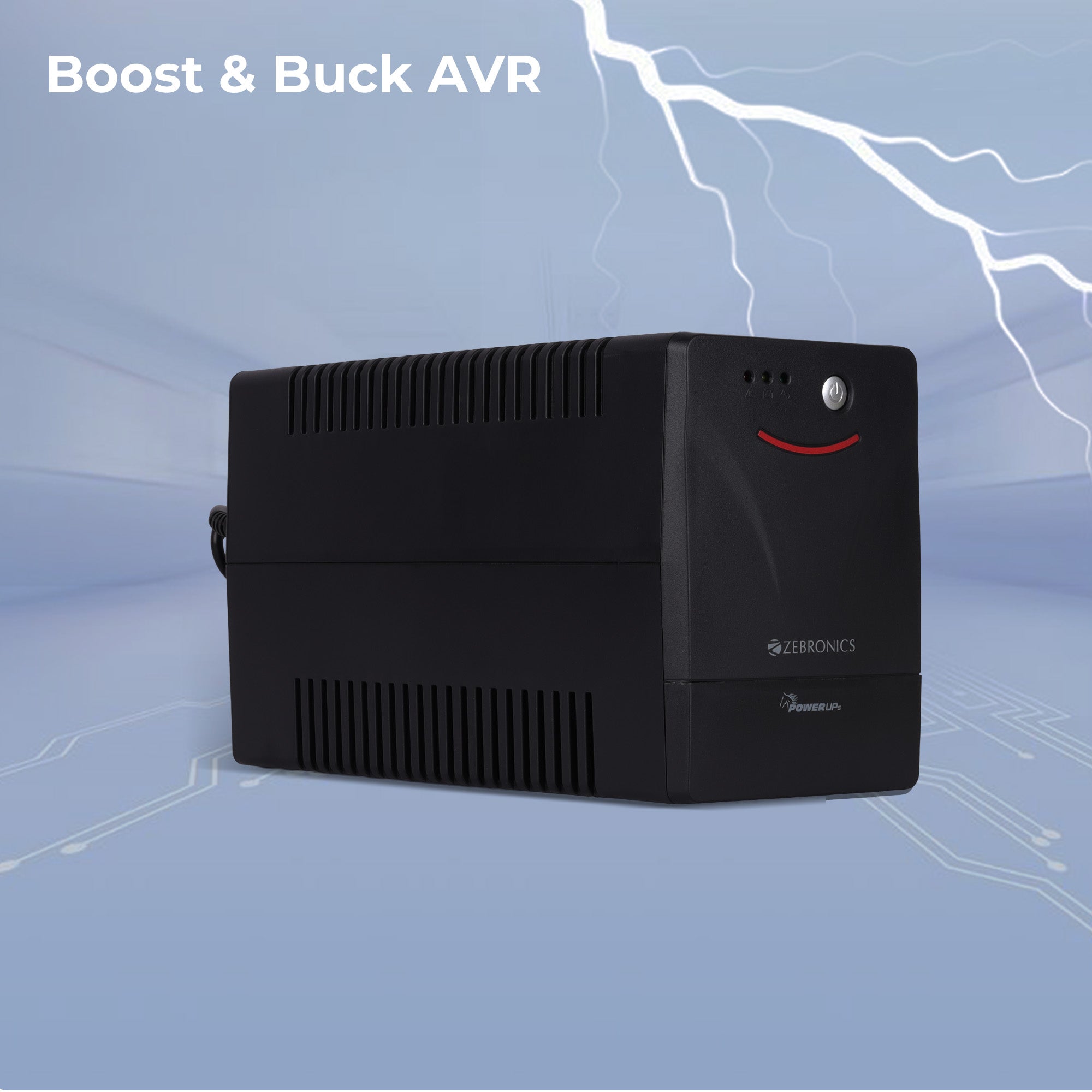

| Automatic Voltage Regulation (AVR) | |
| * Under testing conditions with 1 DVR without HDD and 3 cameras without IR enabled |
Specifications
| Capacity | ||
| (VA/W) |
1000VA / 600W | |
| Input | ||
| Nominal Voltage |
220-240 VAC | |
| Voltage range | 140-300 VAC | |
| Frequency |
50/60 Hz | |
| Plug Type |
3 Pin Plug |
|
| Input Protection |
Internal Fuse | |
| Output | ||
| Voltage Range (AC mode) |
230VAC ± 15 % | |
| Voltage Range (Batt. Mode) |
230VAC ± 10 % | |
| Frequency Range (Batt. Mode) |
50/60Hz ±1% | |
| Transfer Time |
4-8ms | |
| Waveform |
Simulated Sine Wave | |
| No. of Output Sockets |
4 | |
| Protections |

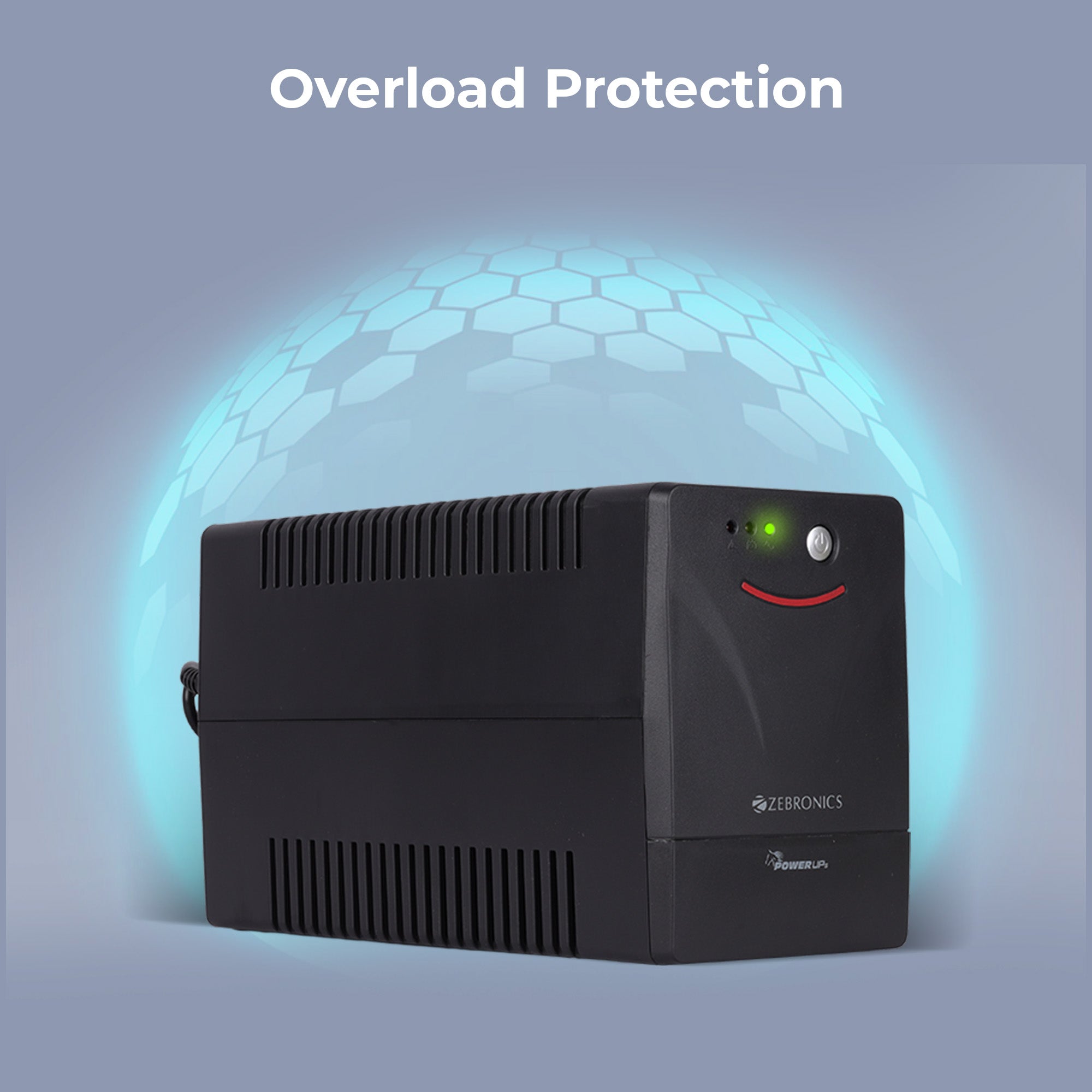

Overload, Short Circuit, Over Discharge & Over Charge | |
| Battery | ||
| Battery type |
12V 7Ah x 2 nos | |
| Charging Current |
1.2A(Max.) | |
| Recharge Time |
6-8h to charge 90% (after complete discharge) | |
| Indicators | ||
| No. Of LEDs |
3 LEDs | |
| AC Mode | Green LED Glows | |
| Battery mode | Orange LED blinks | |
| Fault Mode |
Red LED Glows | |
| Alarm | ||
| Battery mode | Beeping every 10 Seconds | |
| Low battery | Beeping every 1 Second | |
| Overload | Beeping every 0.5 second | |
| Fault | Continuous Beeping |
|
| Physical | ||
| Dimension (W x D x H) |
13 x 31.4 x 17.5 cm | |
| Net Weight |
7.26kg |
|
| Package Dimension (W x D x H) |
36.8 x 17.3 x 24.8 cm | |
| Environmental Factors | ||
| Operational Temperature | 0-40⁰C | |
| Noise Level |
< 45dB | |
| Country of Origin |
China | |
|
Package Contents |
||
| UPS | 1 U | |
| QR Code Guide |
1 U | |
