Zeb-MLS755
New
Inclusive of all taxes
- Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipment
- Wide Input Range
- ZEB Micro Load Sense system, Microprocessor based output load sensing feature,
to sense micro power consumption devices - Backup of upto 3h 45min* for micro power consumption devices
- Excellent microprocessor control guarantees high reliability
- Advanced 3 Tier battery management system, prolongs battery life by more than 30%.
- Made for extreme Indian Conditions.
- Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output.
- LED & Audible alarms for instant alert signals.
- Line interactive UPS

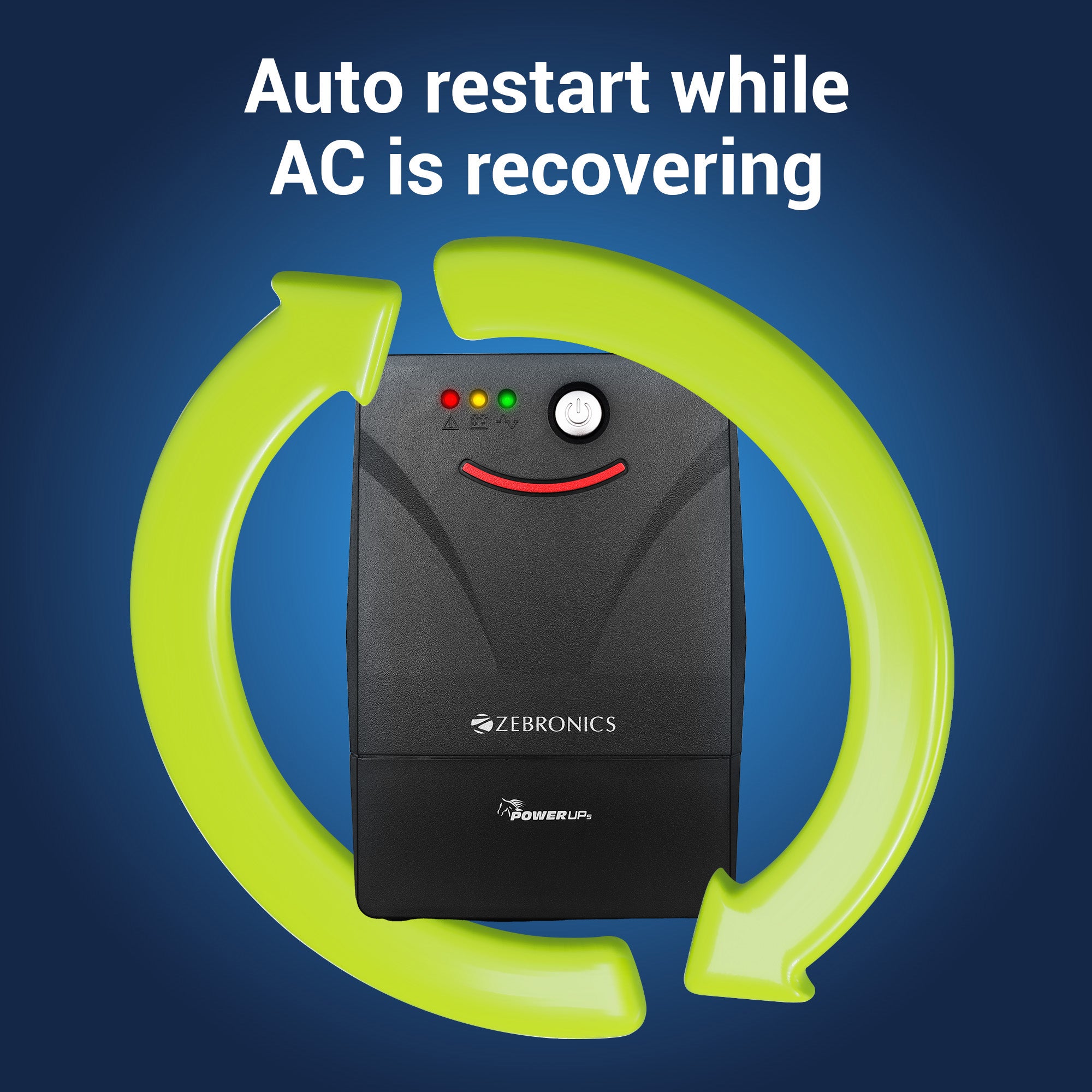

- Auto restart while AC is recovering
- Double Boost

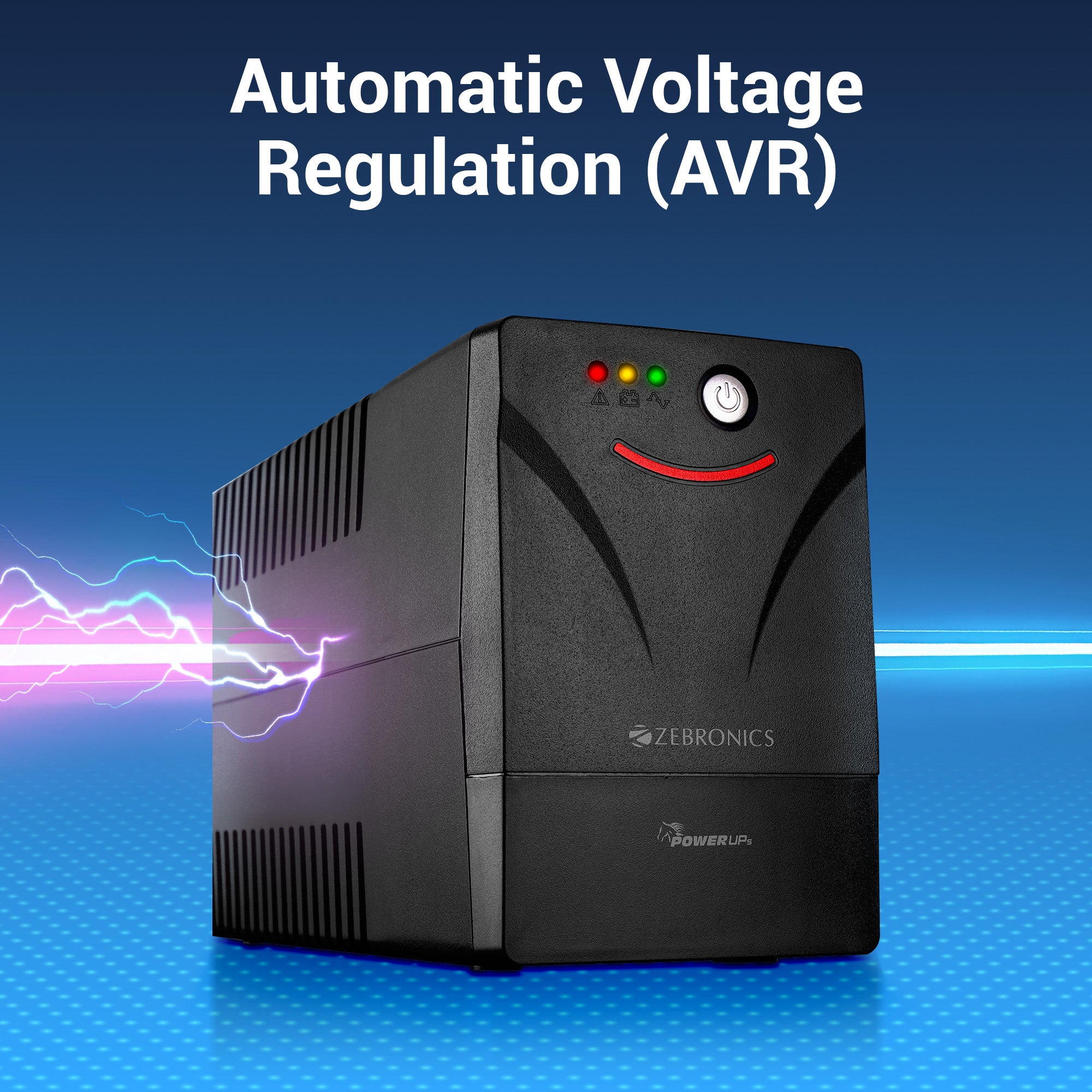

- Automatic Voltage Regulation (AVR)
Product Type: Micro Load UPS
Zeb-MLS755
Sale price₹ 3,399.00
Features
| Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio Medical equipment | |
| Wide Input Range | |
| ZEB Micro Load Sense system, Microprocessor based output load sensing feature, to sense micro power consumption devices | |

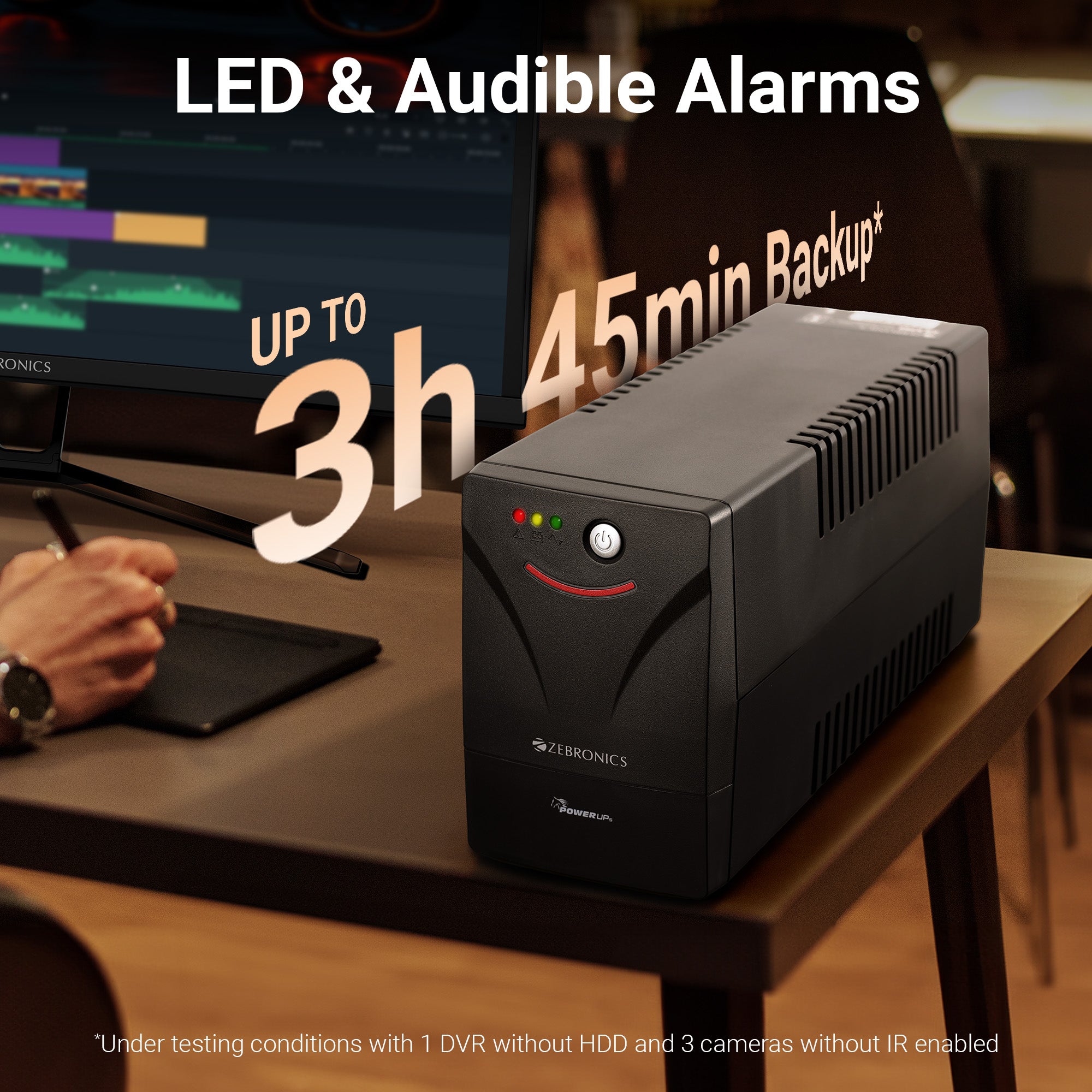

| Backup of upto 3h 45min* for micro power consumption devices | |
| Excellent microprocessor control guarantees high reliability | |
| Advanced 3 Tier battery management system, prolongs battery life by more than 30%. | |
| Made for extreme Indian Conditions. | |
| Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output. | |
| LED & Audible alarms for instant alert signals. | |
| Line interactive UPS | |
| Auto restart while AC is recovering | |
| Double Boost |
|
| Automatic Voltage Regulation (AVR) | |
| * Under testing conditions with 1 DVR without HDD and 3 cameras without IR enabled |
Specifications
| Capacity | ||
| (VA/W) |
600VA/360W | |

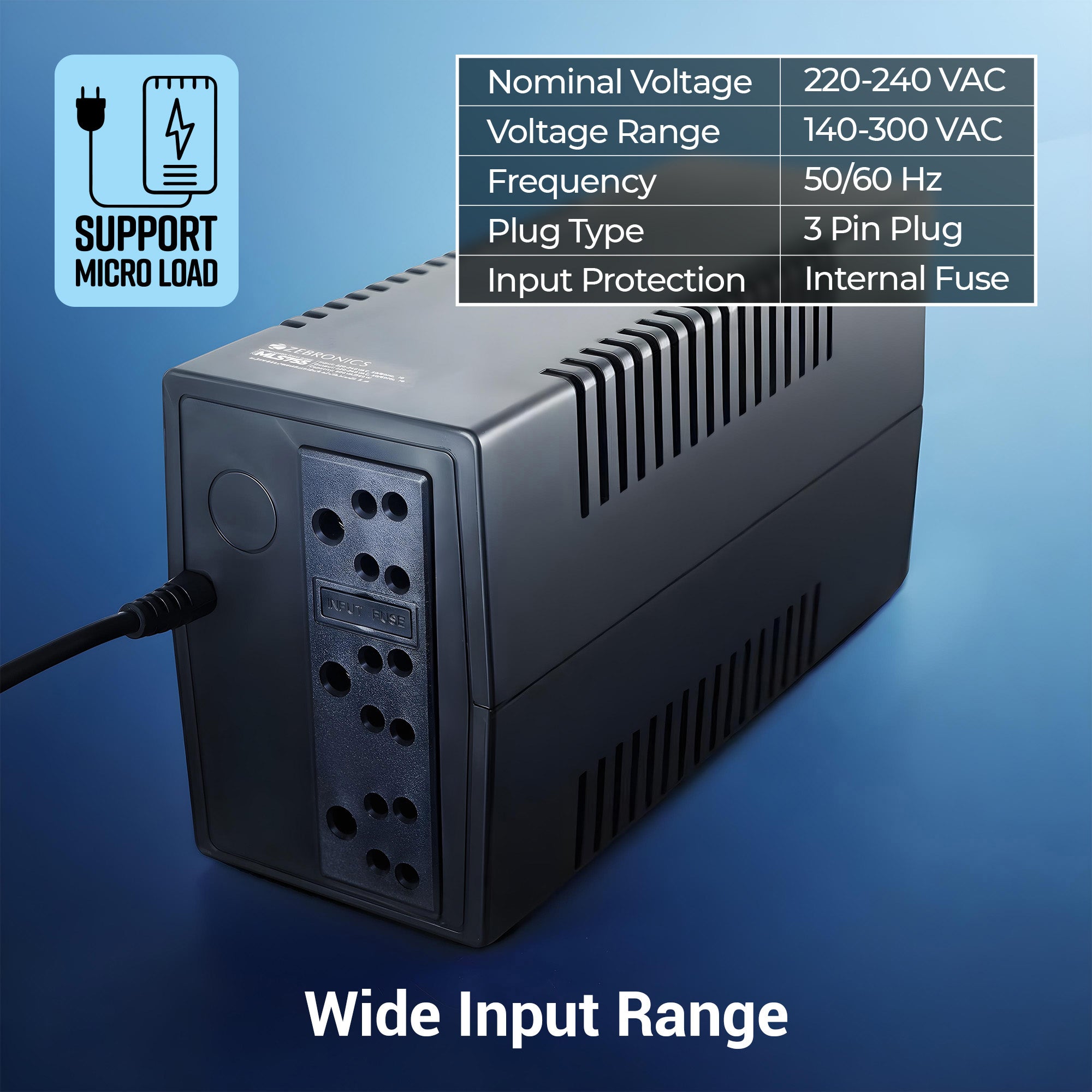

| Input | ||
| Nominal Voltage |
220-240 VAC | |
| Voltage range | 140-300 VAC | |
| Frequency |
50/60 Hz | |
| Plug Type |
3 Pin Plug |
|
| Input Protection |
Internal Fuse | |
| Output | ||
| Voltage Range (AC mode) |
230VAC ± 10 % | |
| Voltage Range (Batt. Mode) |
230VAC ± 10 % | |
| Frequency Range (Batt. Mode) |
50/60Hz ±1% | |
| Transfer Time |
4-8ms | |
| Waveform |
Simulated Sine Wave | |
| No. of Output Sockets |
3 | |
| Protections |
Overload, Short Circuit, Over Discharge & Over Charge | |
| Battery | ||
| Battery type |
12V 7Ah x 1 nos | |
| Charging Current |
1A | |
| Recharge Time |
6-8h to charge 90% (after complete discharge) | |
| Indicators | ||
| No. Of LEDs |
3 LED | |
| AC Mode | Green LED Glows | |
| Battery mode | Orange LED blinks | |
| Fault Mode |
Red LED Glow | |
| Alarm | ||
| Battery mode | Beeping every 10 Seconds | |
| Low battery | Beeping every 1 Second | |
| Overload | Beeping every 0.5 second | |
| Fault | Continuous Beeping |
|
| Physical | ||

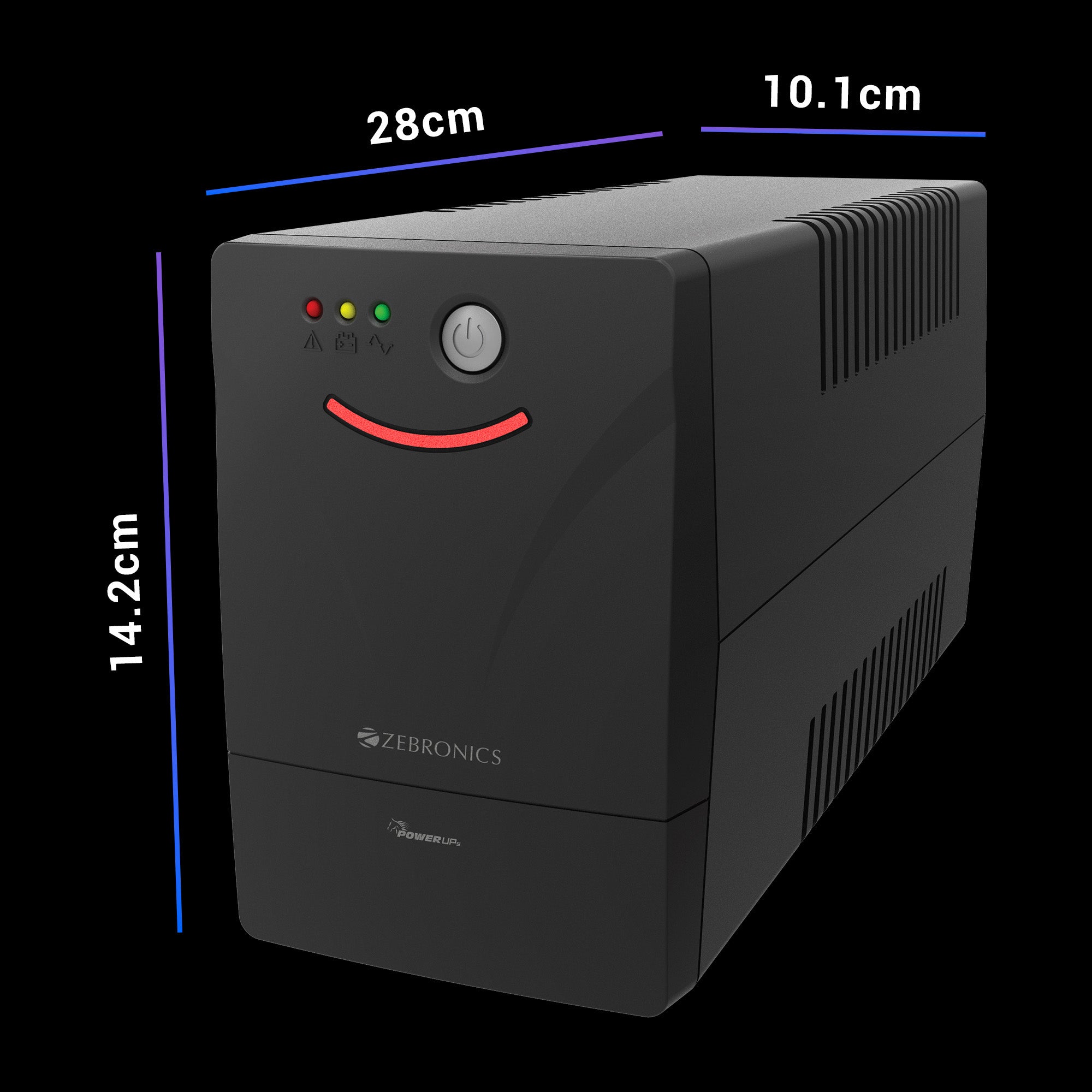

| Dimension (W x D x H) |
10.5 x 27.6 x 14.4 cm | |
| Net Weight |
3.9 kg |
|
| Package Dimension (W x D x H) |
32.6 x 14.2 x 21.3 cm | |
| Environmental Factors | ||
| Operational Temperature | 0-40⁰C | |
| Noise Level |
< 45dB | |
| Country of Origin |
China | |
|
Package Contents |
||
| UPS | 1 U | |
| QR Code Guide |
1 U | |
| Fuse |
1 U | |
* Load conditions apply. CCTV surveillance system is built up with a DVR , Multi point Power supply, and the Camera array along with the distribution cable ,
all the above contribute to the main power load on the UPS , hence the Backup time varies according to system setup , make and efficiency of each
component in the system. Also the advanced Battery management system protects the full system which has an effect on the back up time.
Our results are based on lab test on system having DVR & 3 IR cameras
