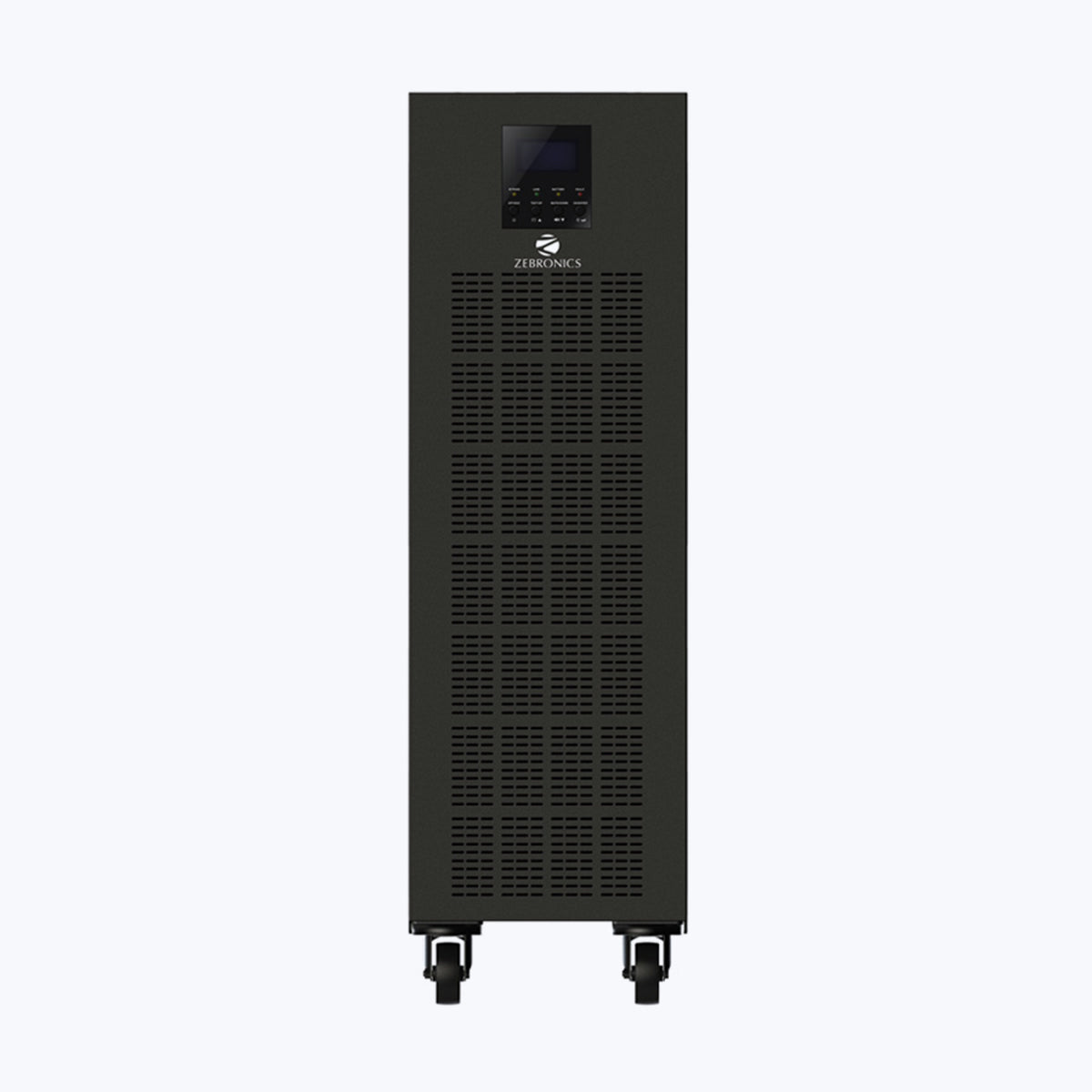

Zeb-OU10KETX16

Rs. 98,900.00
ZEBRONICS Online UPS embedded with isolation transformer, will eliminate common mode noise and the need to install expensive dedicated circuits, it provides reliable galvanically isolated power to critical equipment. Fully coated PCBAs to withstand harsh environments.
DESCRIPTION

Features


Galvanic isolation design to withstand all kinds of load

Fully coating PCBAs to withstand harsh environment

Unique ventilation design for effective heat dissipation

Wide input voltage and frequency range to withstand robust environment

High short-circuit and overload capabilities

Built-in Maintenance bypass switch
Country of Origin :  China


Specifications


MODEL ZEB-OU10KETX16

PHASE Single phase with ground

CAPACITY 10KVA / 8KW

INPUT

Nominal Voltage 208VAC/220VAC/230VAC

Voltage Range 165VAC ~ 285VAC @ 16 pcs of batteries ; 185VAC ~ 285VAC @ 18 pcs of batteries

Frequency 40 Hz ~ 55 Hz @ 50Hz system ; 56 Hz ~ 64 Hz @ 60Hz system

OUTPUT

Output Voltage 208VAC/220VAC/230VAC

Voltage Regulation ± 1%

Frequency Range (Synchronized Range) 45Hz ~ 55 Hz or 56 Hz ~ 64 Hz

Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz

Current Crest Ratio 3:1

Harmonic Distortion ≦ 3 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)

Transfer Time
\
AC to DC : Zero
\ Inverter to Bypass : Zero

Waveform (Batt. Mode) Pure Sinewave

EFFICIENCY

AC Mode 88.30%

Battery Mode 92%

BATTERY

Long-run Model

Battery Type Depending on the applications

Battery Numbers** 16 pcs, 18 pcs

Charging Current (max.) Default 8A, 2A/4A/8A (adjustable)

Charging Voltage 218.4 V ± 1%, 245.7 V ± 1%

INDICATORS

LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators

ALARM

Battery Mode Sounding every 4 seconds

Low Battery Sounding every second

Overload Sounding twice every second

Fault Continously sounding

PHYSICAL

Long-run Model

Dimensions, D x W x H (mm) 562 x 250 x 830

Net Weight (Kgs) 86

ENVIRONMENT

Operating Temperature 447

Operating Humidity < 95 % and non-condensing

Noise Level Less than 60dBA @ 1 Meter

MANAGEMENT

Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC

Dry Contact Five signals: AC failure, low battery, UPS alarm, bypass and UPS fault

Optional SNMP Power management from SNMP manager and web browser
\
\ \
