Zeb-OU1KE6
Zeb-OU1KE6
Zeb-OU1KE6
  • Availability: in stock In stock Out of stock Pre-order now, get it first on launch.

Zeb-OU1KE6

Rs. 17,999.00

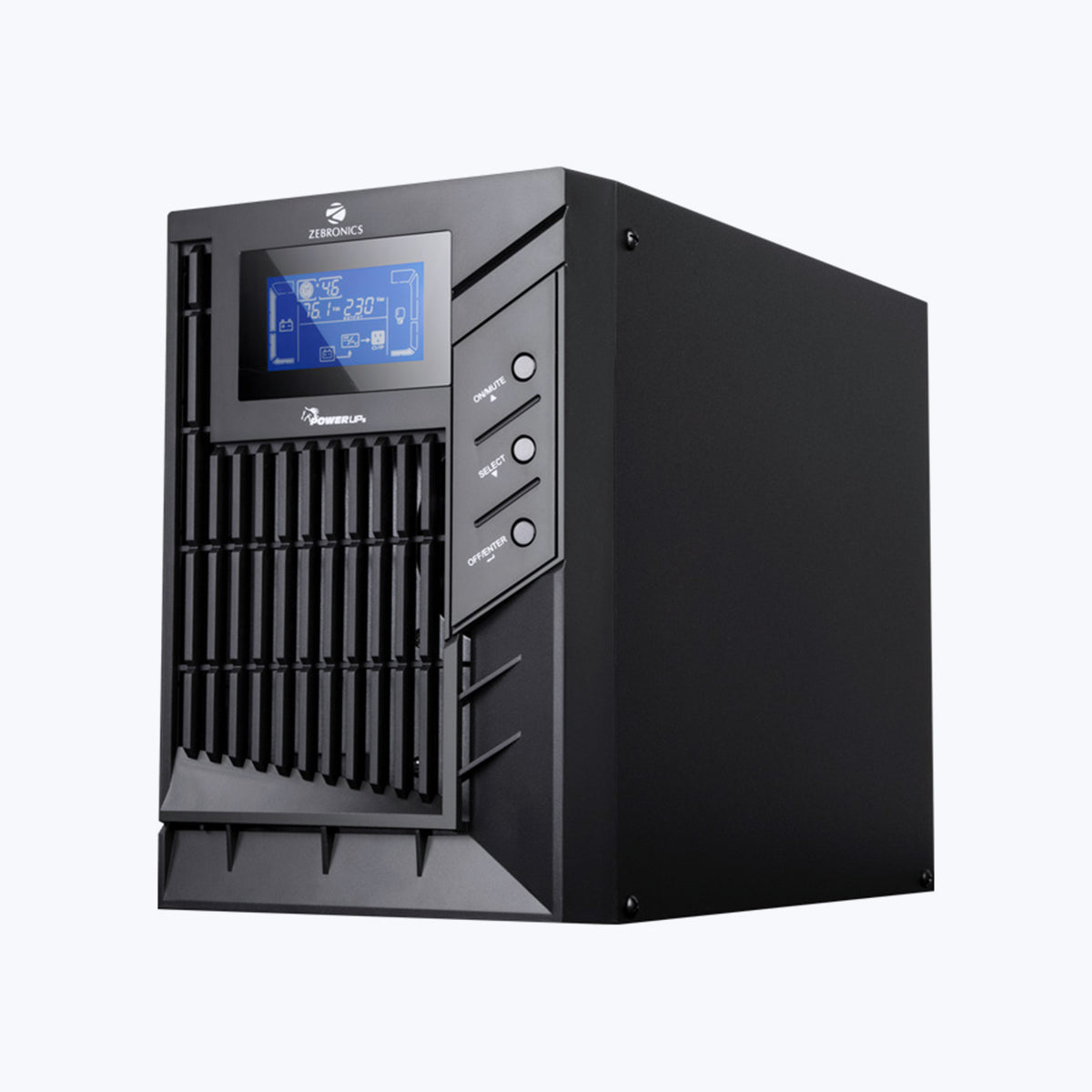

ZEBRONICS Online UPS is specifically designed for operations in poor power areas. They provide high power density with long backup time in compact size. It’s ideal for ATMs, banking and other businesses with critical applications. Users could also adjust charging current from 1A to 6A according to different applications. Comprehensive display allows easy monitoring and access of UPS status,
    DESCRIPTION
    FEATURES
    Online Ups-1KVA
    Microprocessor Based Control
    LCD Display - Load Level, Battery Level, Ac Mode, Battery Mode, Bypass Mode & Fault Indicators
    Generator Compatible
    Wide Input Voltage Range
    External Battery*
    Eco Mode For Energy Saving
    User Selectable Output Voltage
    Zero Transfer Time
    Power Management Software

    SPECIFICATION
    CAPACITY 1000 VA / 800 W
    INPUT
    Voltage Range
    Low Line Transfer 160VAC/140VAC/120VAC/110VAC±5%
    \ (Ambient Temp.<35°C)
    \ (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
    Low Line comeback 175VAC/155VAC/135VAC/125VAC ± 5 %
    \ (Ambient Temp.<35°C)
    \ (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
    High Line Transfer 280 VAC ± 5 %
    High Line Comeback 270 VAC ± 5 %
    Frequency Range 40Hz ~ 70 Hz
    Phase Single phase with ground
    Power Factor ≥0.99 @ nominal voltage (input voltage)
    OUTPUT
    Output voltage 200/208/220/230/240VAC
    AC Voltage Regulation ±1% (Batt. Mode)
    Frequency Range 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
    Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
    Overload Ambient Temp <35°C)
    \ 105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal. 110%~130%: UPS shuts down after 1minute at battery mode or transfer to bypass when the utility is normal.
    \ >130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal.
    Current Crest Ratio 3:1
    Harmonic Distortion 3 % THD (linear load); = 6 % THD (non-linear load)
    Transfer Time AC Mode to Batt. Mode : Zero
    \ Inverter to Bypass : 4 ms (Typical)
    Waveform (Batt. Mode) Pure Sinewave
    EFFICIENCY
    AC Mode 88%
    Battery Mode 83%
    BATTERY
    Numbers 3*
    Recharge Time Depending On The Capacity Of External Batteries
    Charging Current 1.0A/2.0A/4.0A/6.0A
    Charging Voltage 41.0 VDC ±1%
    PHYSICAL
    Dimension 282 x 145 x 220mm (D x W x H )
    Net. Weight 4.1 kg
    ENVIRONMENT
    Operation Humidity 20-90 % RH @ 0- 40°C (non-condensing)
    Noise Level Less than 50dBA @ 1 Meter
    MANAGEMENT
    Smart RS-232 or USB Supports Windows® XP/Vista/7/8/10, Linux, Unix and MAC
    \
