Zeb-OU20KETX3P1P

Sale price₹ 290,500.00

Inclusive of all taxes

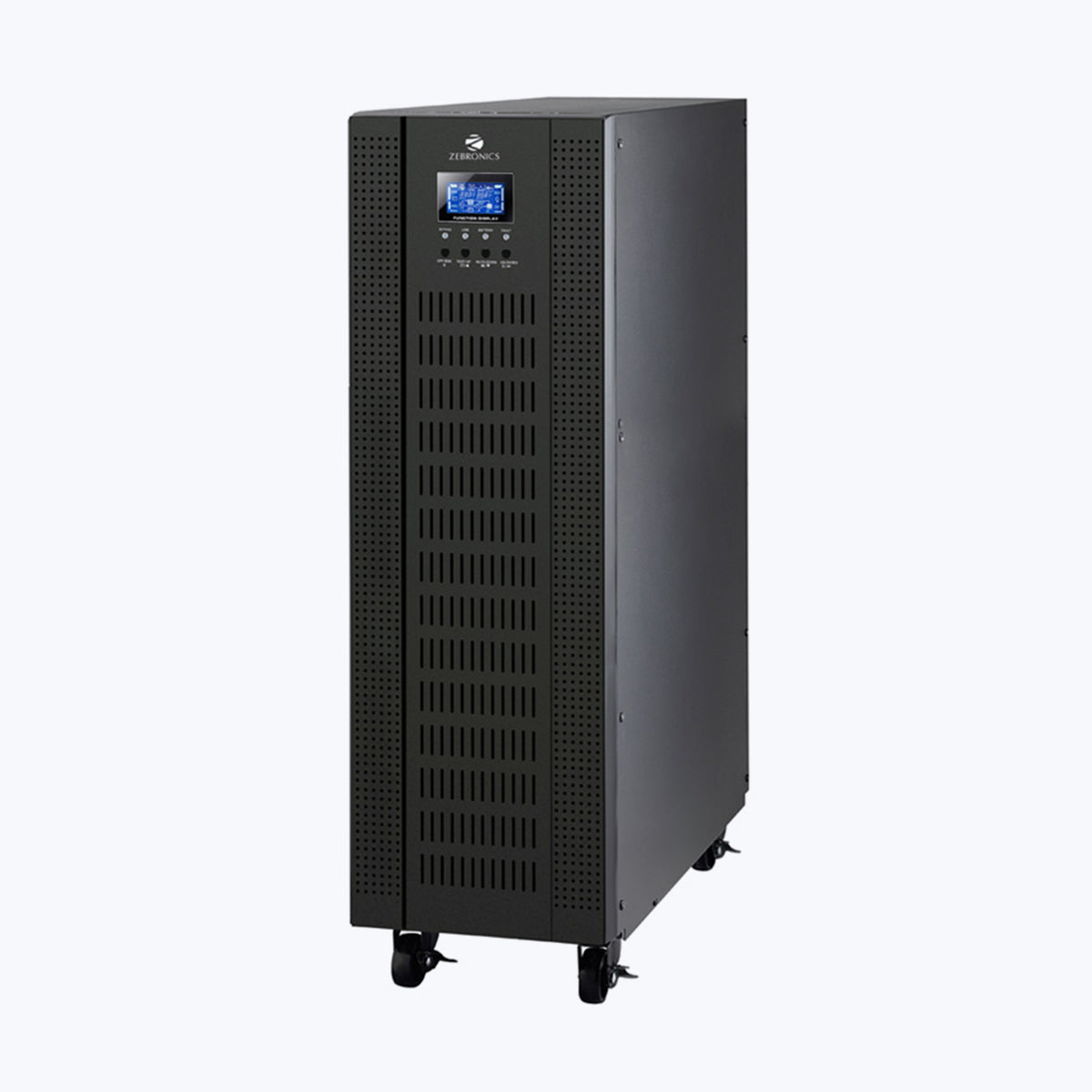

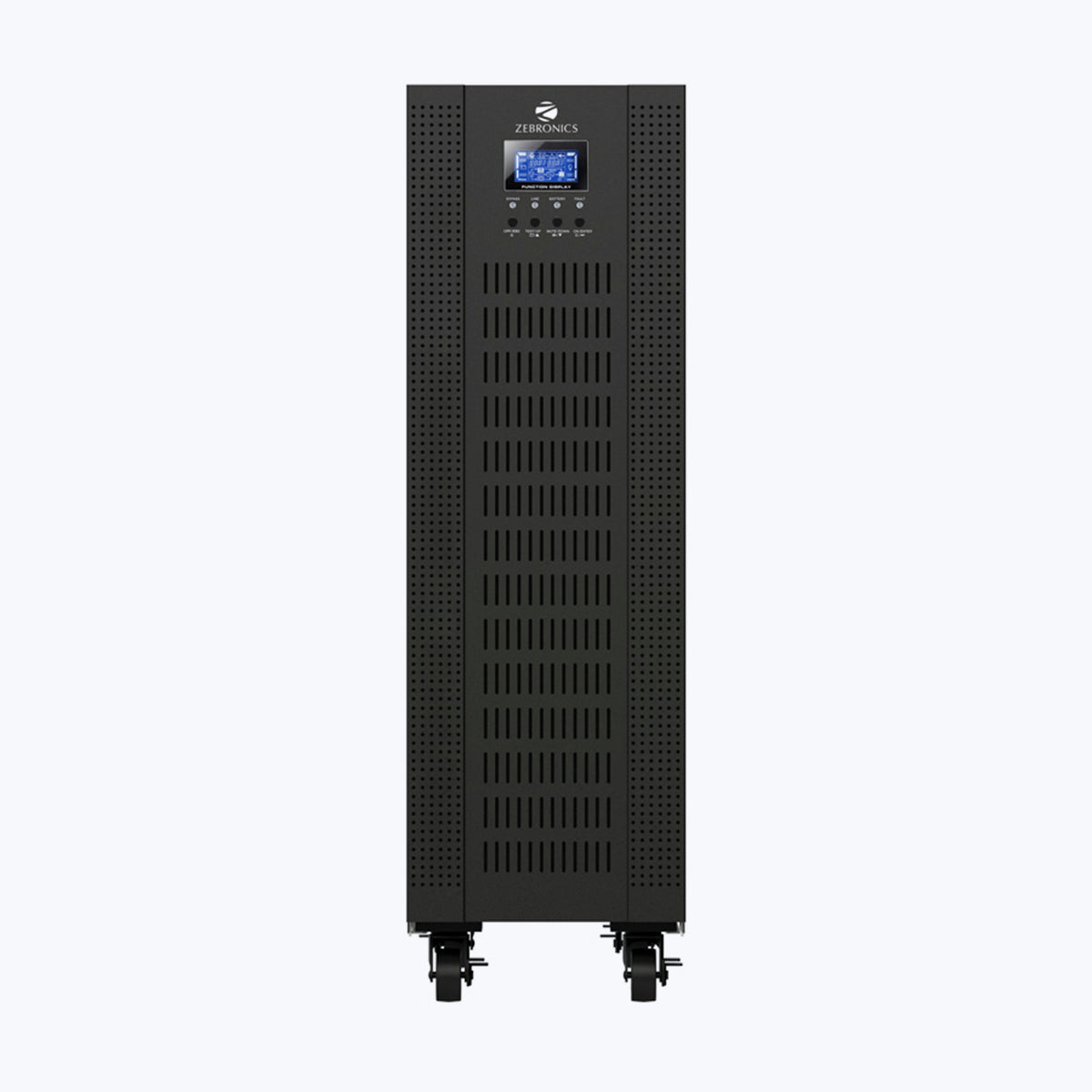

ZEBRONICS Online UPS comes with True double-conversion. Provides better output power factor of 1 with higher performance and efficiency for critical applications. Supports programmable power management outlets which can extend available battery time to critical devices by shutting down unnecessary devices. It's also suitable for laser printers and ultrasound load.
Product Type: Online UPS

Features


True double-converssion

DSP technology guarantees high reliability

Output power factor 1.0

Active power factor correction in all phases

ECO mode operation for energy saving

Emergency power off function (EPO)

Optional parallel operation

Smart battery charger design to optimize battery performance

Maintenance bypass avaliable

Adjustable battery design
Country of Origin :  China


Specifications


MODEL ZEB-OU20KETX3P1P***

PHASE 3-phase in / 1-phase out

CAPACITY 20KVA / 20KW

PARALLEL CAPABILITY up to 6 units in parallel

INPUT

Nominal Voltage 3 x 380/400/415 VAC (3Ph+N)

Voltage Range -30% ~ +20%

Frequency Range 40~70 Hz

Power Factor ≧ 0.99 @ 100% Load

Harmonic Distortion (THDi) < 3% at full linear load

OUTPUT

Output Voltage 1 x 220*/230/240 VAC (1Ph+N)

AC Voltage Regulation (Batt. Mode) ± 1%

Frequency Range (Synchronized Range) 46~54Hz or 56~64Hz

Frequency Range (Batt. Mode) 50/60 Hz ± 1%

Current Crest Ratio 3:1 (max.)

Harmonic Distortion ≦ 1 % THD (Linear Load) ; ≦ 3 % THD (Non-linear Load)

Transfer Time

AC Mode to Batt. Mode : Zero
\ Inverter to Bypass : Zero

Waveform (Batt. Mode) Pure Sine wave

Overload Capability 100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% or 400ms

BYPASS

Nominal Voltage 1 x 220*/230/240 VAC (1Ph+N)

Voltage Range -30% ~ +20% (Adjustable)

Frequency Range (Synchronized Range) 46~54Hz or 56~64Hz

Overload Capability


"> 130% 1 minute (default)
Continously working until breaker protection (optional)"

EFFICIENCY

AC Mode 0.96 %

ECO Mode 0.99 %

Battery Mode 0.96 %

BATTERY

Long-run Model

Battery Type Depending on the applications

Numbers +/-16 pcs ~ +/- 20 pcs (Adjustable)

Charging Current (max.) 1A ~ 12A (Adjustable)

Charging Voltage +/-13.65V x N (N=16~20)

PHYSICAL

Long-run Model

Dimension,DxWxH (mm) 630 x 250 x 826

Net Weight (kgs) 43

ENVIRONMENT

Operation Temperture 0-40°C

Operation Humidity < 95% and non-condersing

Altitude** 0 ~ 1500m at full load

Noise Level Less than 60dB @1 Meter

MANAGEMENT

Smart RS-232 / USB Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7/8/10, Linux and MAC

Optional SNMP Power management from SNMP manager and web browser




*If output voltage is set as 1 x 240VAC, the output power of the unit will be de-rated to 90%.

"**If the UPS is installed or used in a place where the altitude is higher than maximum height, the output power will be derated 1% per 100m.
\ Product specifications are subject to change without further notice."

*** Transformer weight not included
\
