Zeb-OU3KE6

Rs. 29,999.00
ZEBRONICS Online UPS is specifically designed for operations in poor power areas. They provide high power density with long backup time in compact size. It’s ideal for ATMs, banking and other businesses with critical applications. Users could also adjust charging current from 1A to 6A according to different applications. Comprehensive display allows easy monitoring and access of UPS status.
    DESCRIPTION

    Features


    Online Ups-3KVA

    Microprocessor Based Control

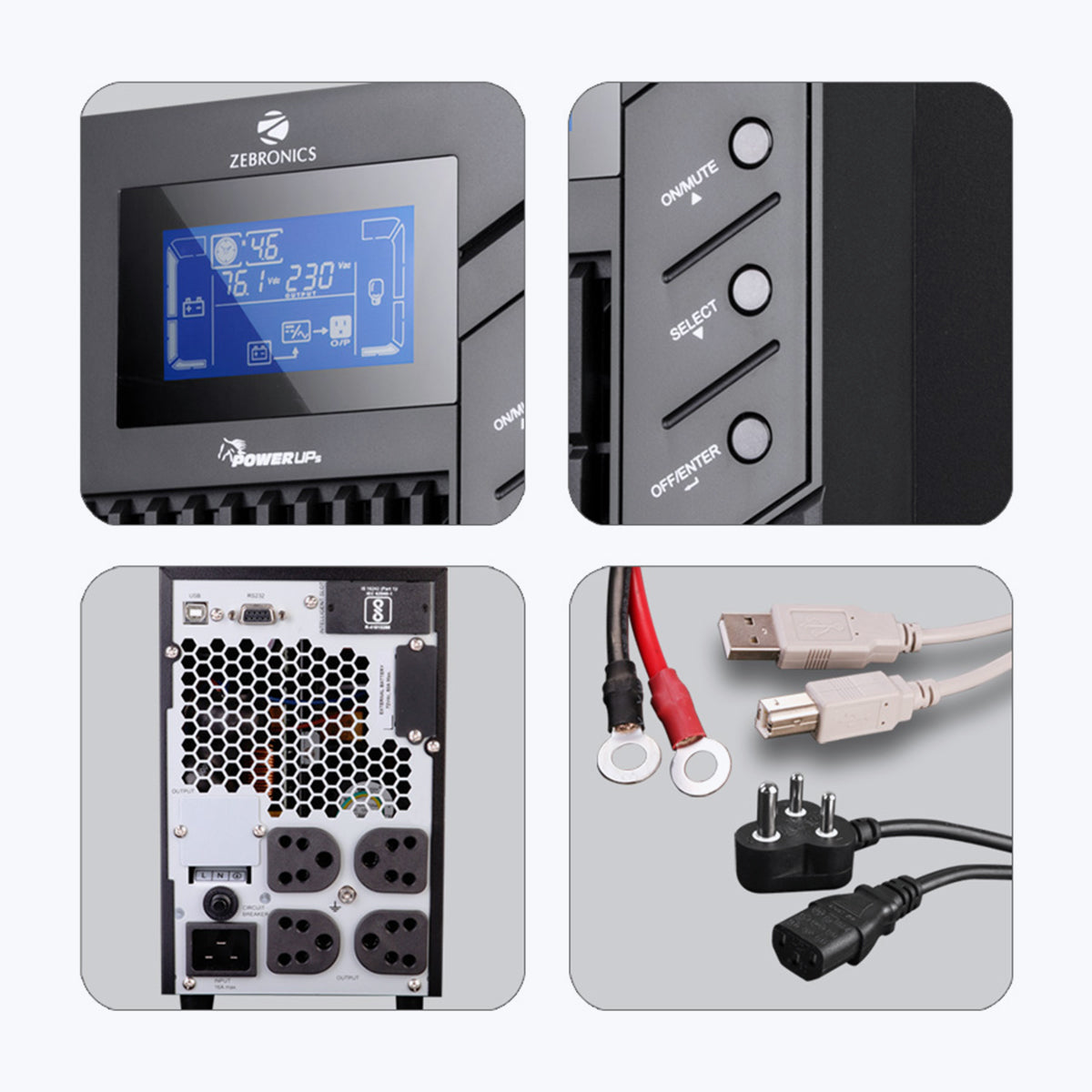

    LCD Display - Load Level, Battery Level, Ac Mode, Battery Mode, Bypass Mode & Fault Indicators

    Generator Compatible

    Wide Input Voltage Range

    External Battery*

    Eco Mode For Energy Saving

    Zero Transfer Time

    Power Management Software


    Specifications


    CAPACITY 3000 VA / 2400 W

    INPUT

    Voltage Range

    Low Line Transfer 160VAC/140VAC/120VAC/110VAC±5%
    \ (Ambient Temp.<35°C)
    \ ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)

    Low Line comeback 175VAC/155VAC/135VAC/125VAC ± 5 %
    \ (Ambient Temp.<35°C)
    \ ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)

    High Line Transfer 280 VAC ± 5 %

    High Line comeback 270 VAC ± 5 %

    Frequency Range 40Hz ~ 70 Hz

    Phase Single phase with ground

    Power Factor ≥ 0.99 @ nominal voltage (input voltage)

    OUTPUT

    Output voltage 200/208/220/230/240VAC

    AC Voltage Regulation ±1% (Batt. Mode)

    Frequency Range 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)

    Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz

    Overload Ambient Temp.<35°C
    \ 105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal.
    \ 110%~130%: UPS shuts down after 1minute at battery mode or transfer to bypass when the utility is normal.
    \ >130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal.

    Current Crest Ratio 3:1

    Harmonic Distortion ≤3 % THD (linear load); = 6 % THD (non-linear load)

    Transfer Time

    AC Mode to Batt.Mode Zero

    Inverter to Bypass 4 ms (Typical)

    Waveform (Batt. Mode) Pure Sinewave

    EFFICIENCY

    AC Mode 90%

    Battery Mode 88%

    BATTERY

    Numbers 6*

    Recharge Time Depending On The Capacity Of External Batteries

    Charging Current 1.0A/2.0A/4.0A/6.0A

    Charging Voltage 82.1 VDC ±1%

    PHYSICAL

    Dimension 397 x 145 x 220mm (D x W x H )

    Net. Weight 7.4 kg

    ENVIRONMENT

    Operation Humidity 20-90 % RH @ 0- 40°C (non-condensing)

    Noise Level Less than 50dBA @ 1 Meter

    MANAGEMENT

    Smart RS-232 or USB Supports Windows® XP/Vista/7/8/10, Linux, Unix and MAC
    \
