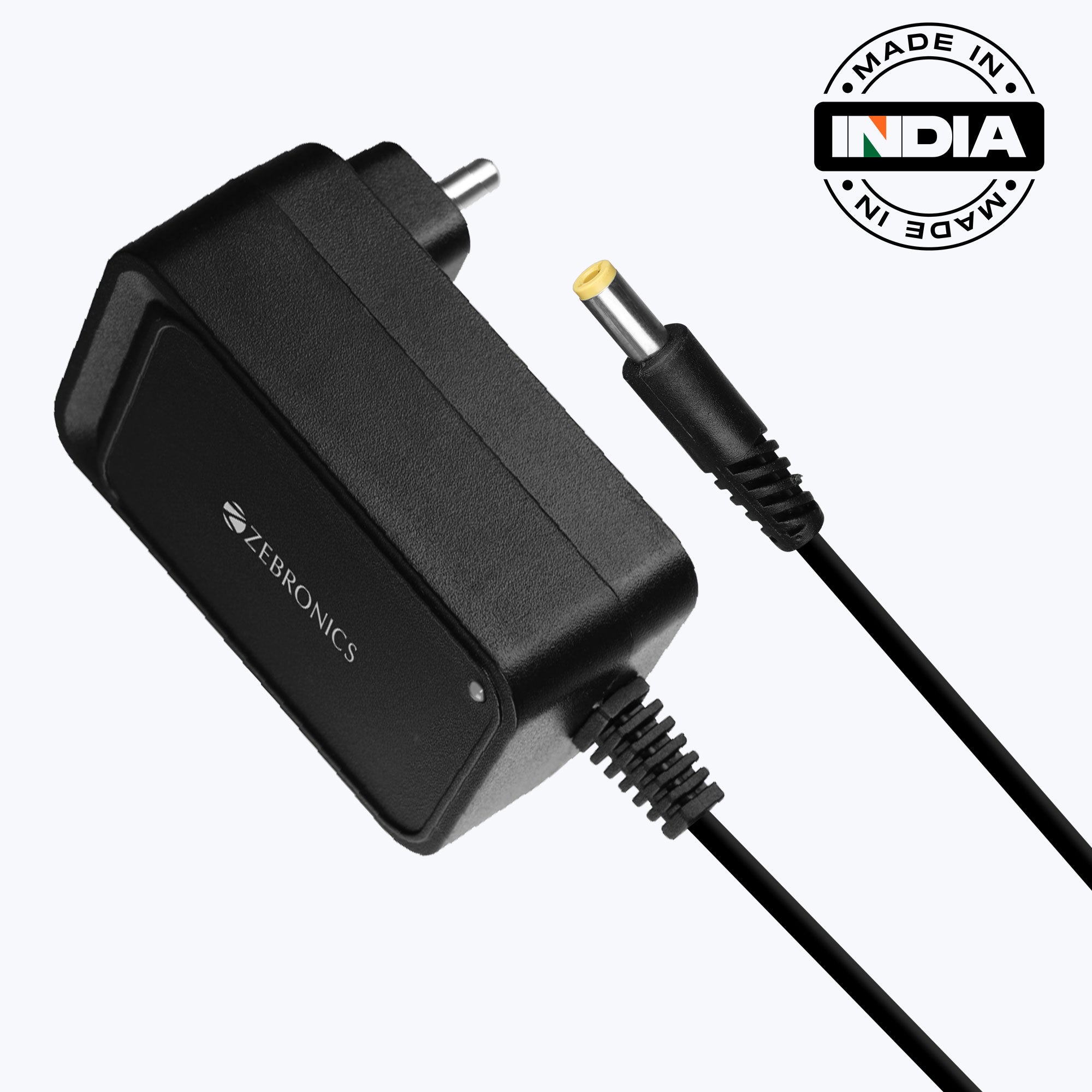

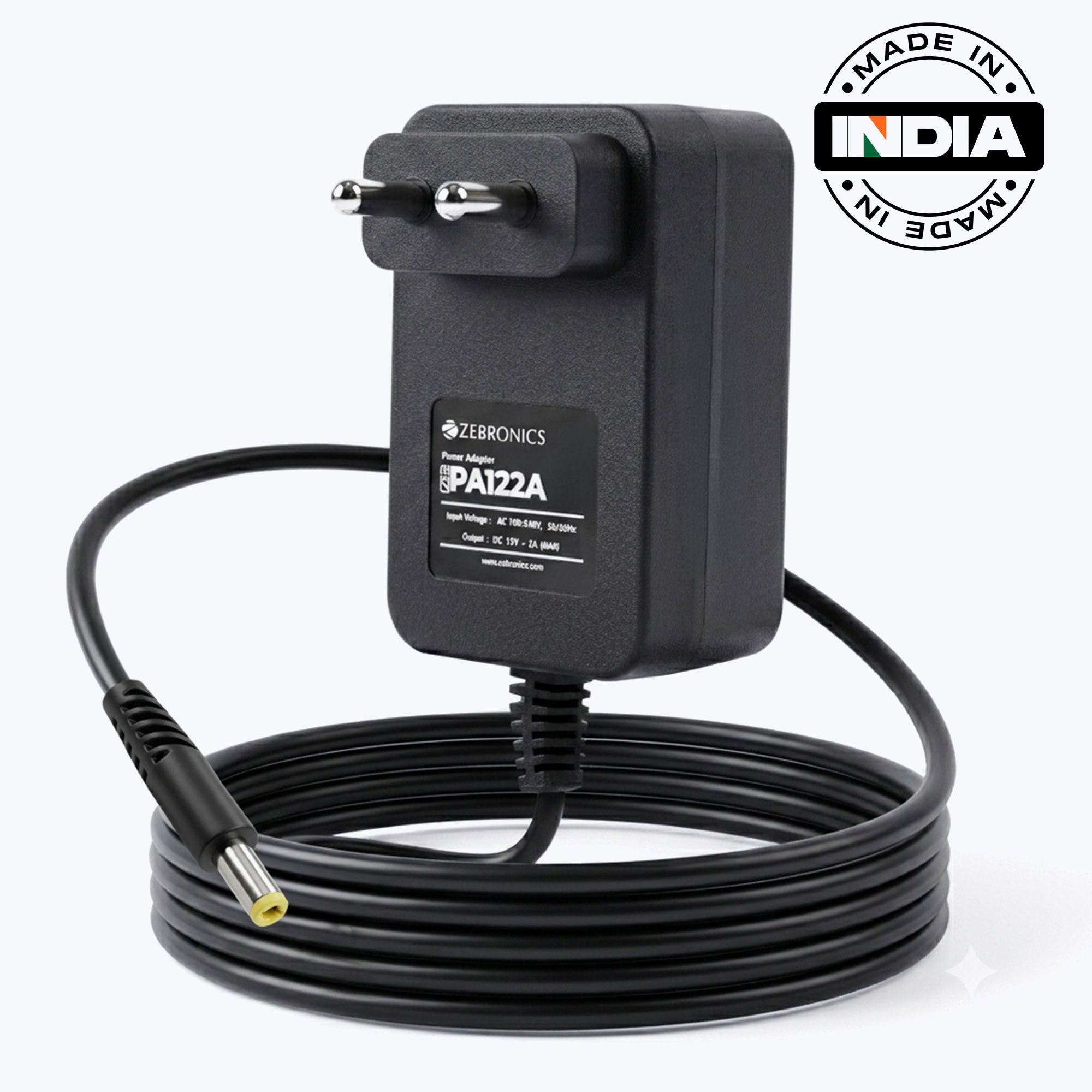

Zeb PA122A

New
Sale price₹ 699.00

Inclusive of all taxes

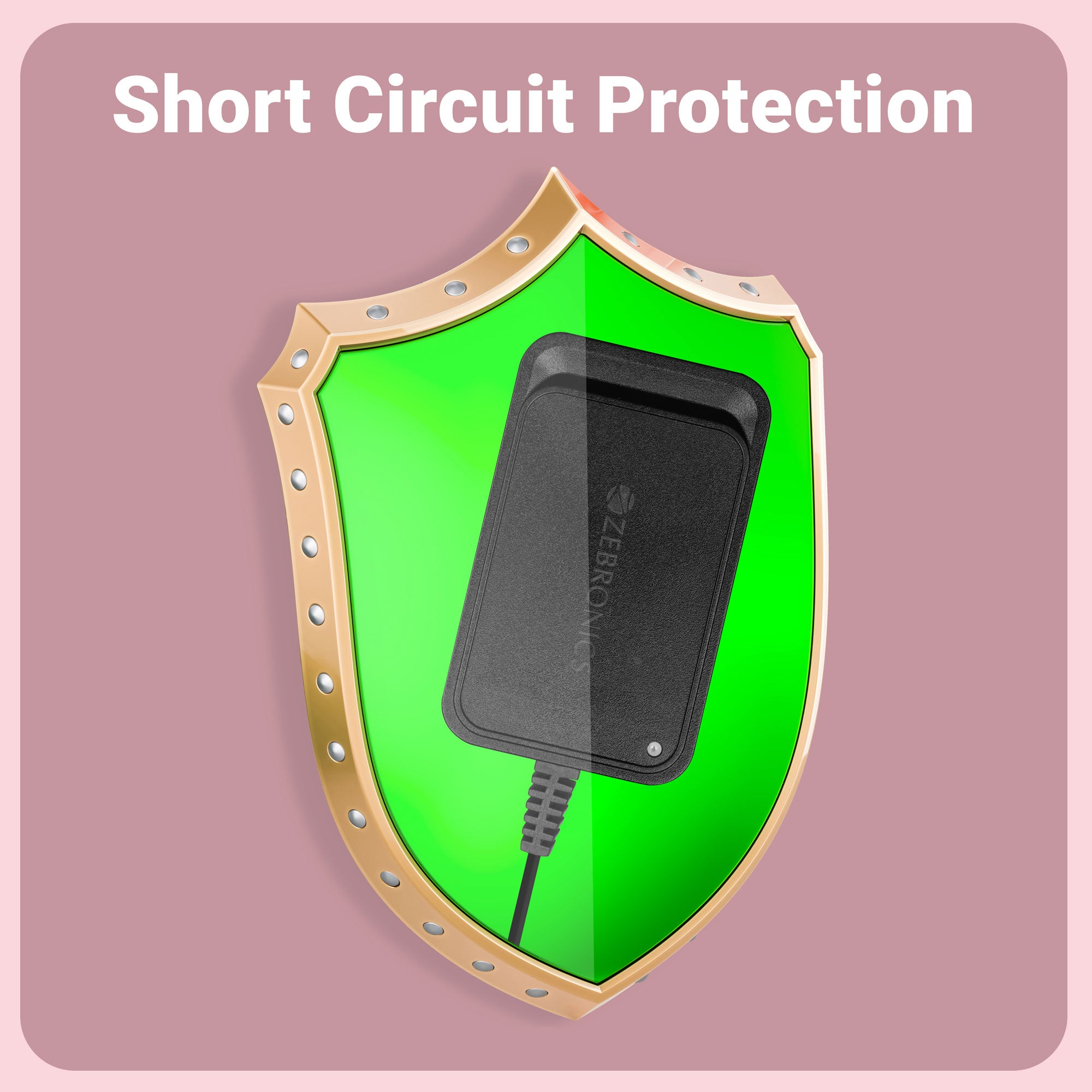

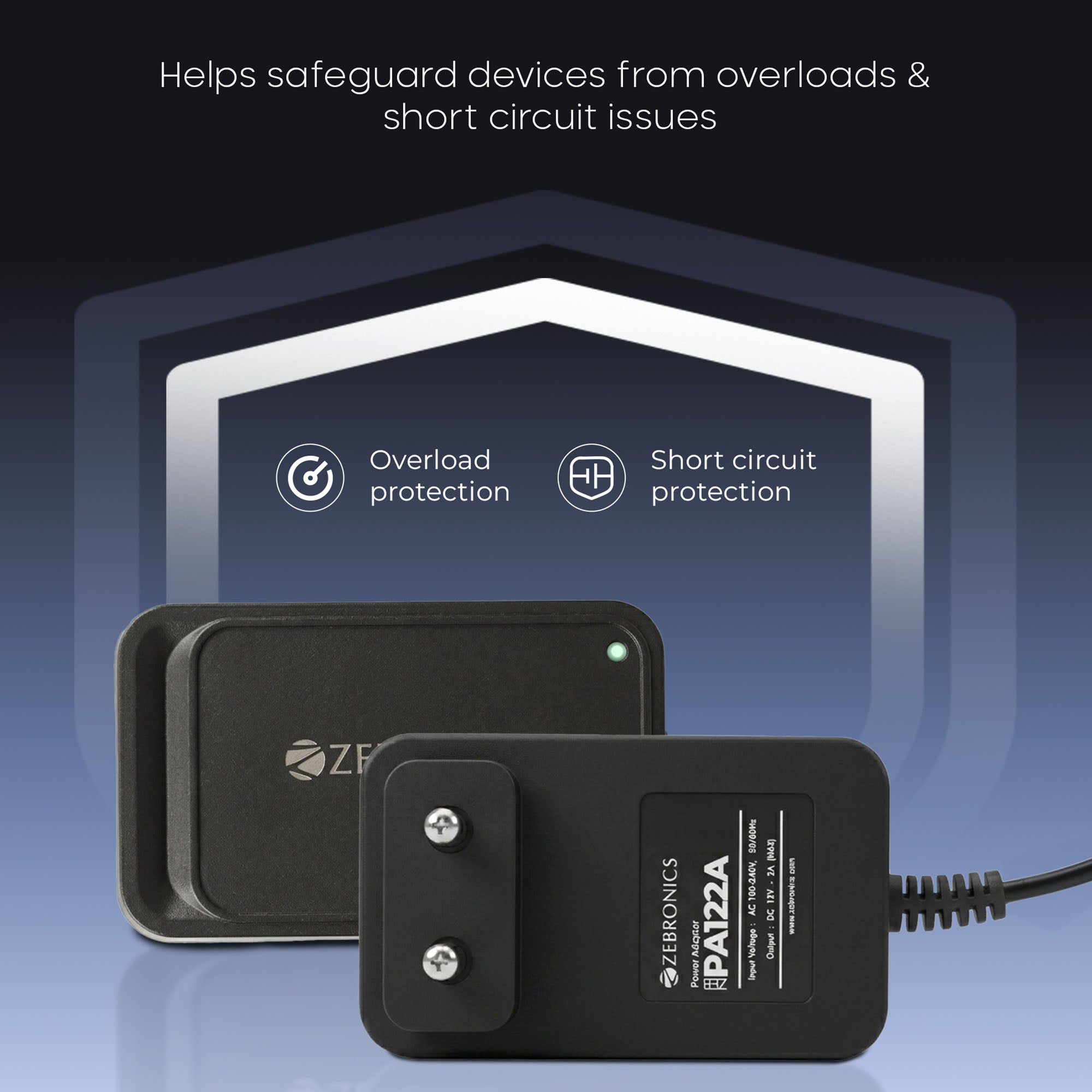

  • Short circuit protection

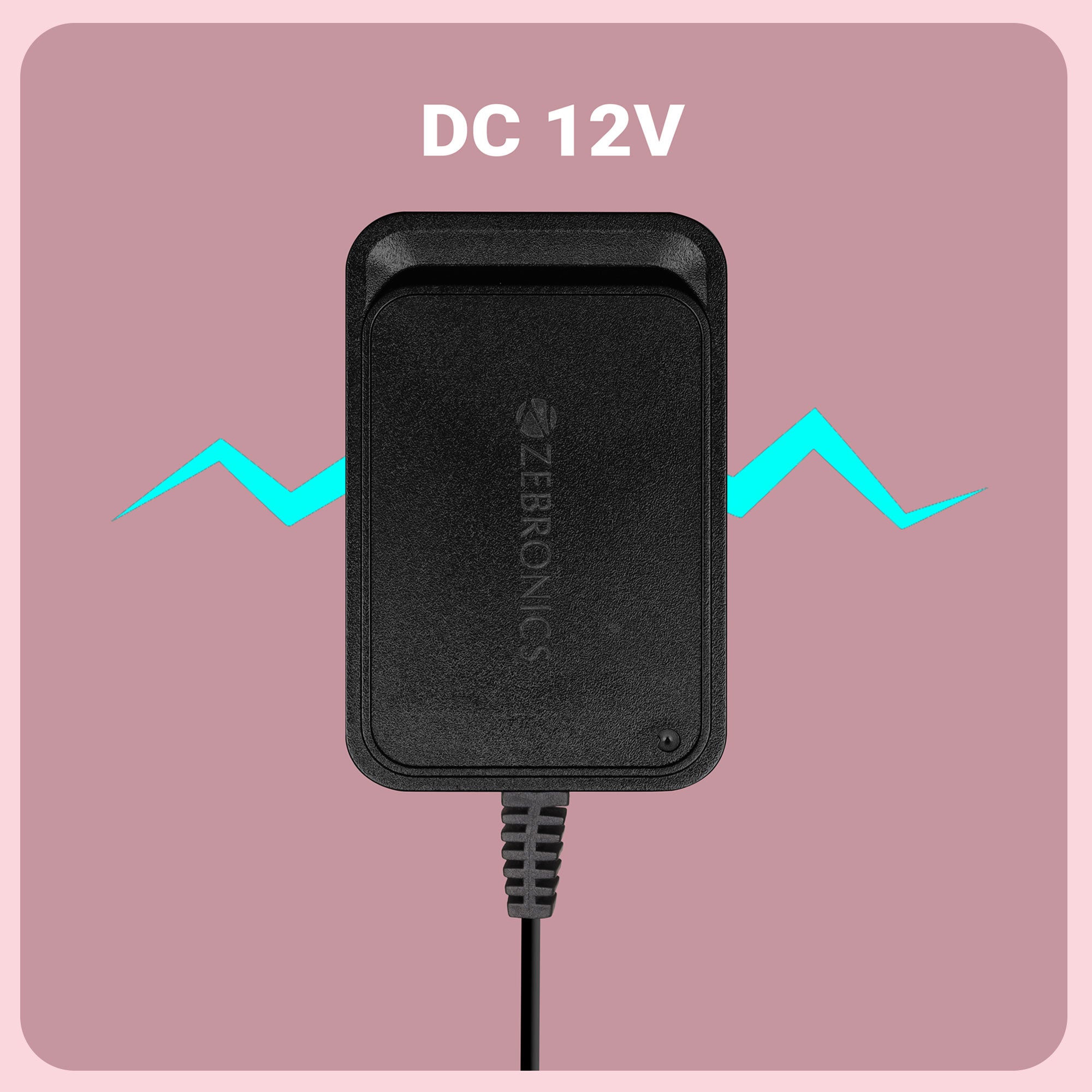

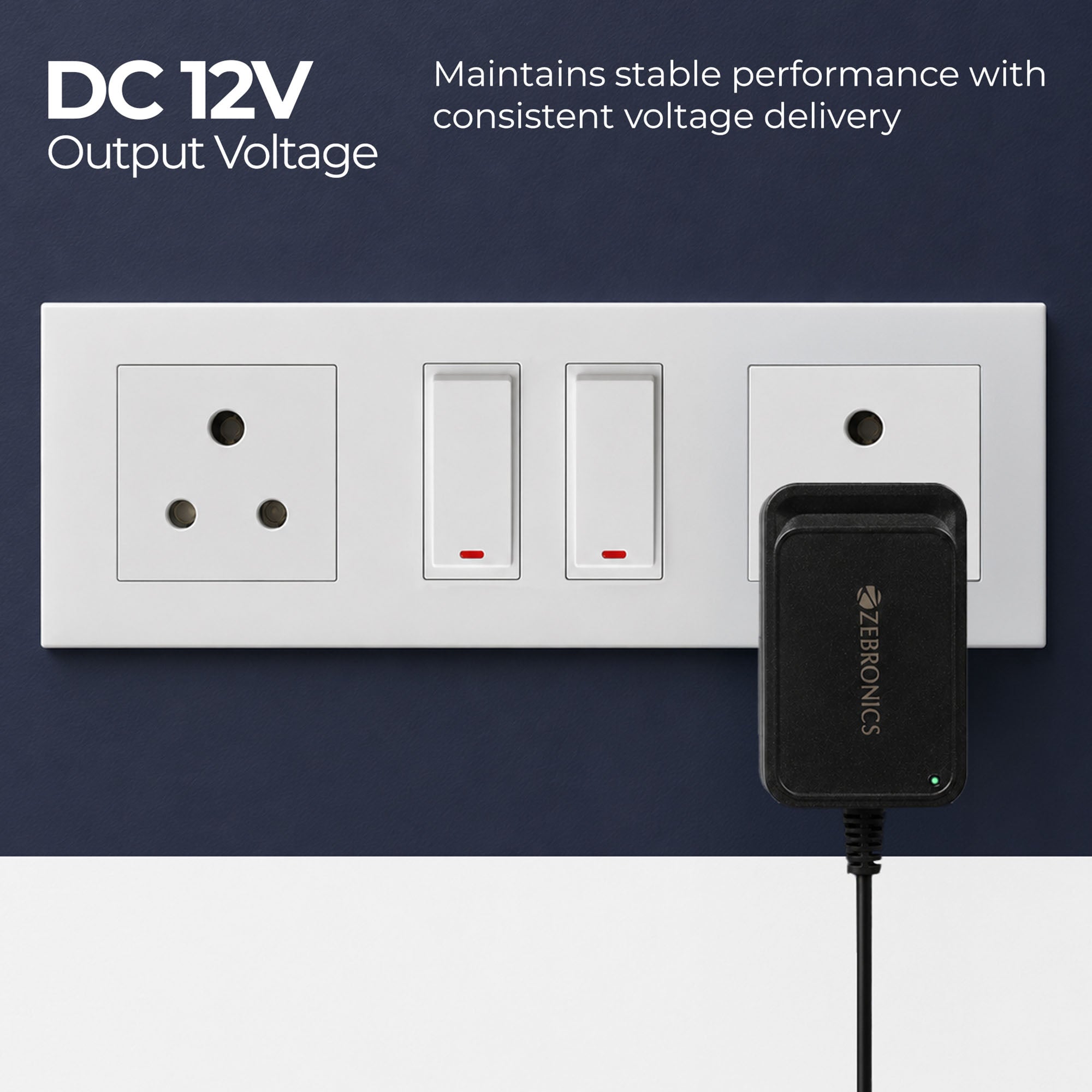

  • DC 12V

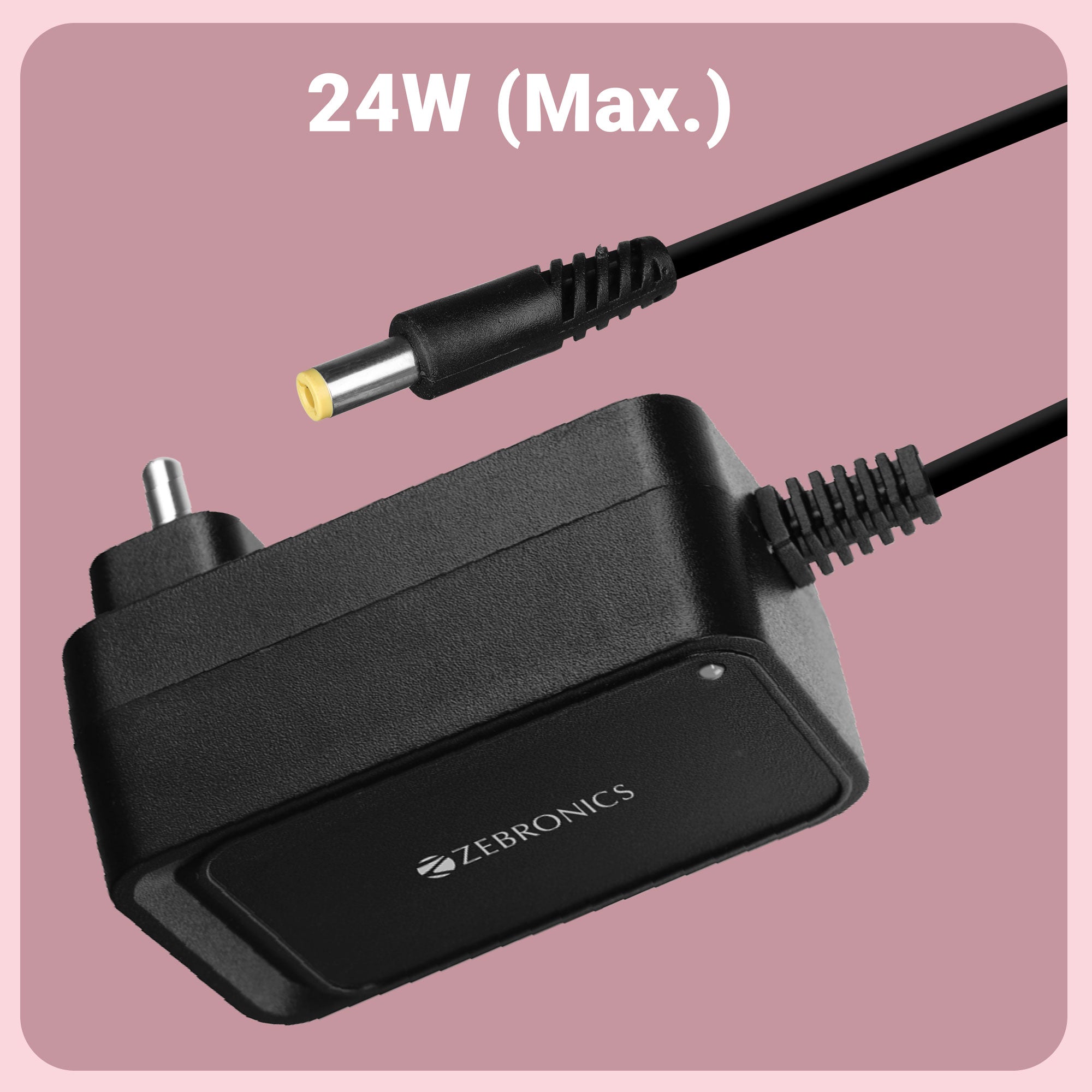

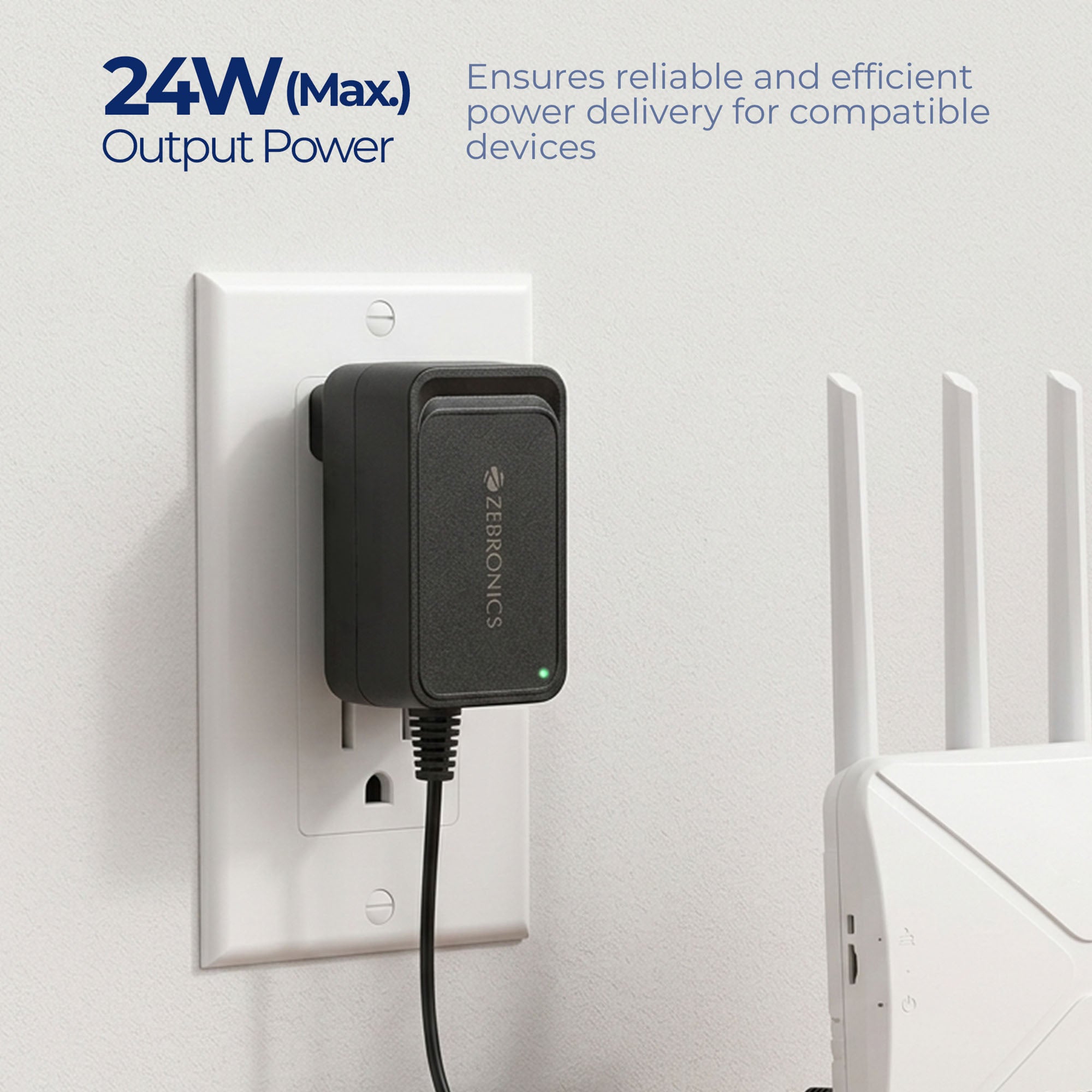

  • 24W (Max.)

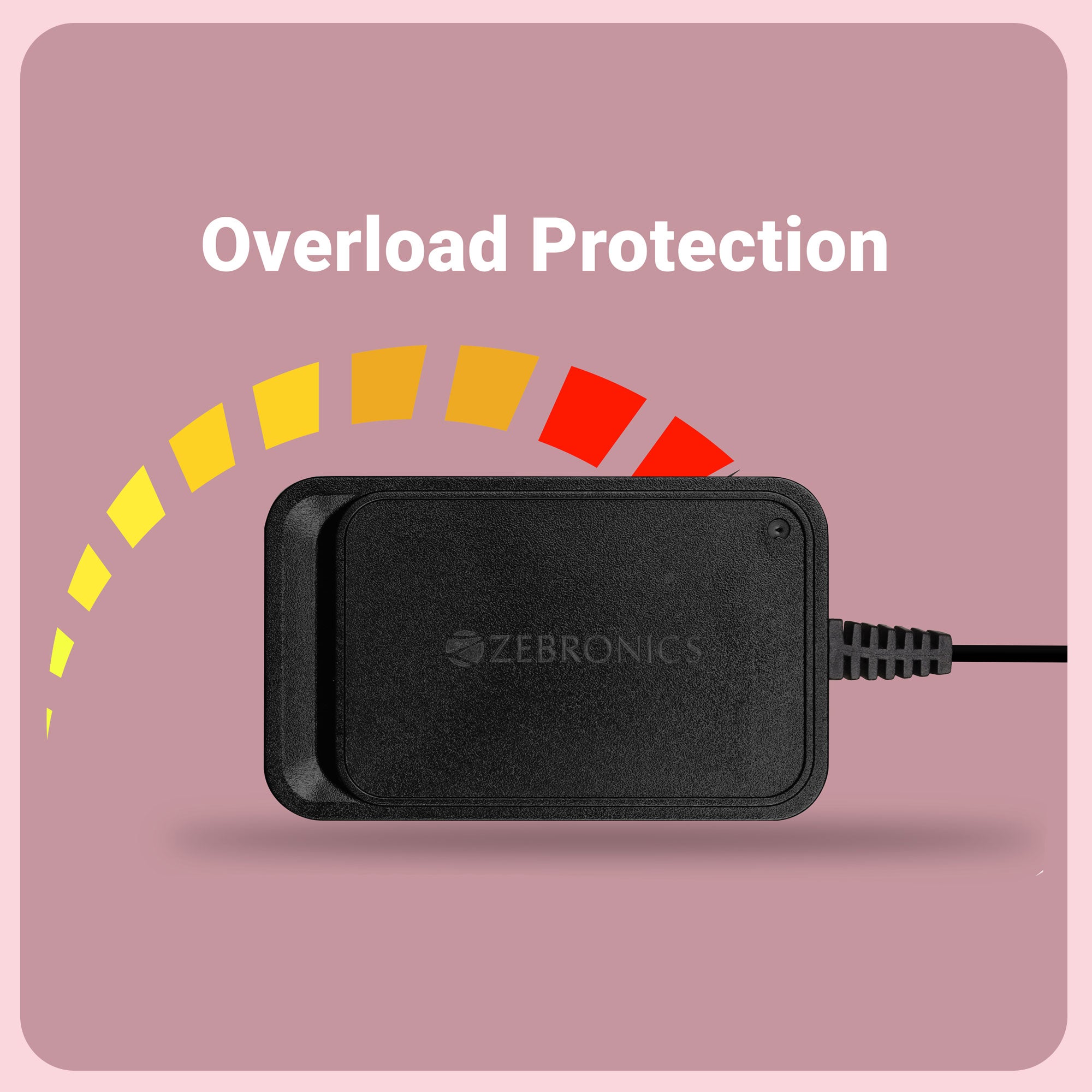

  • Overload protection

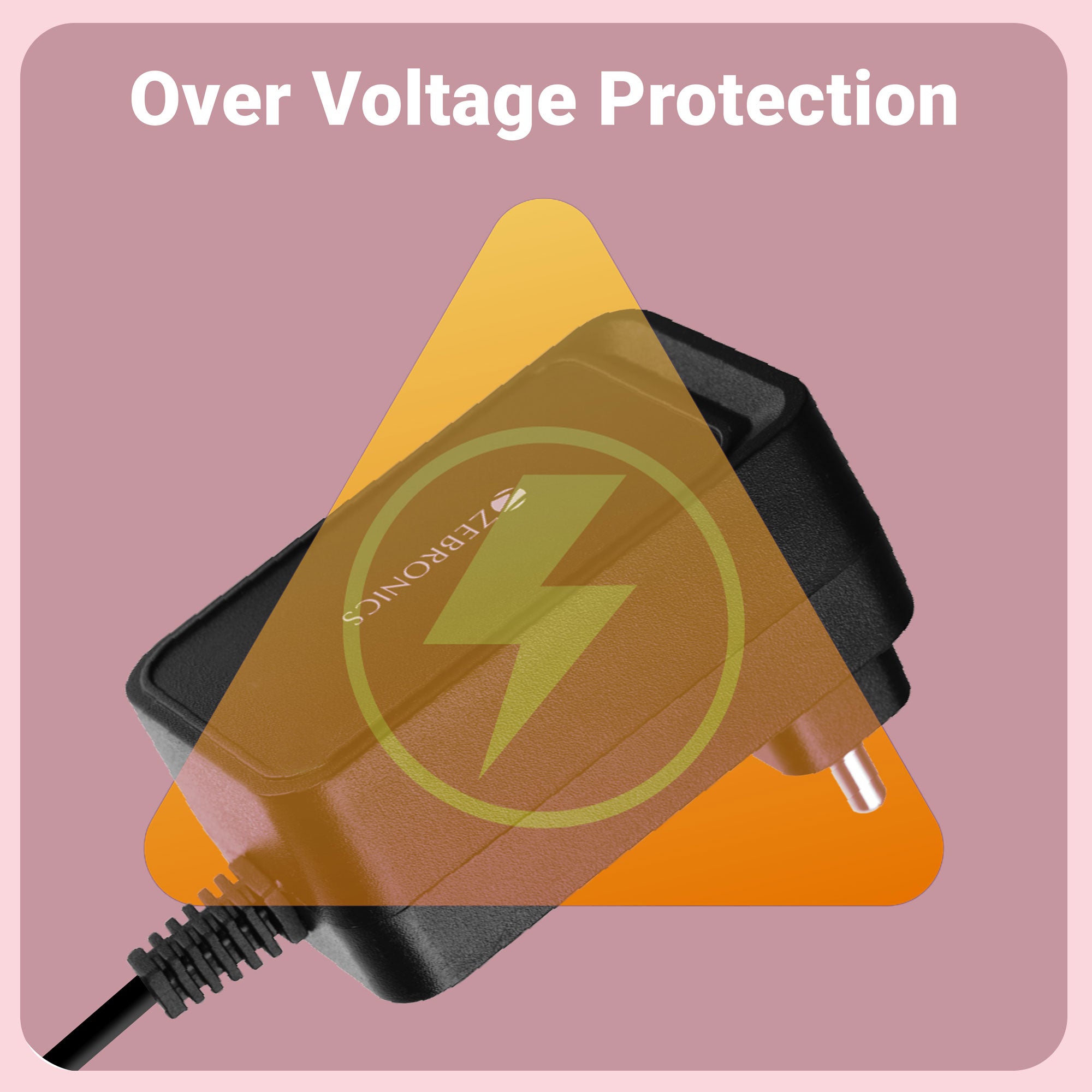

  • OverVoltage protection

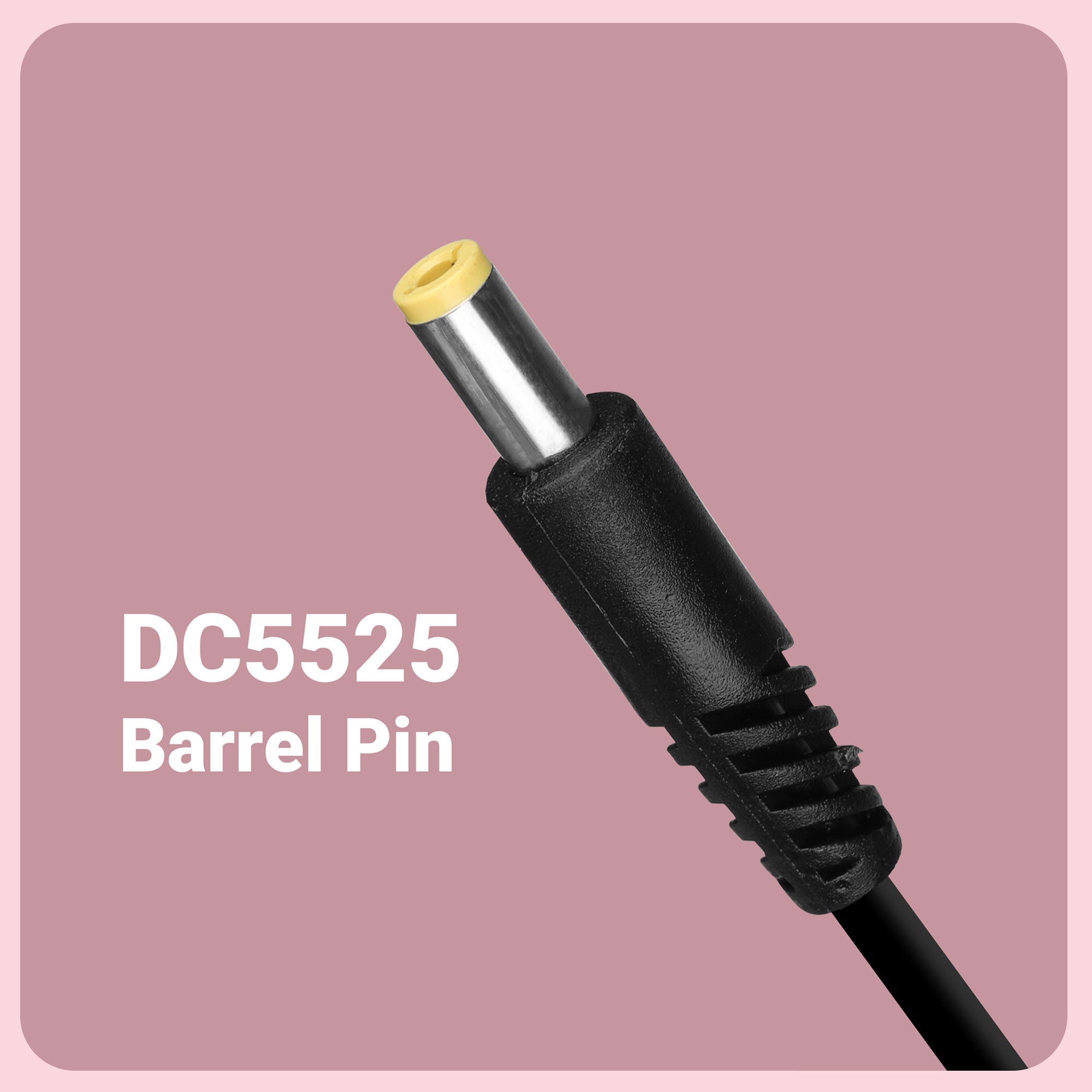

  • with DC5525 barrel pin

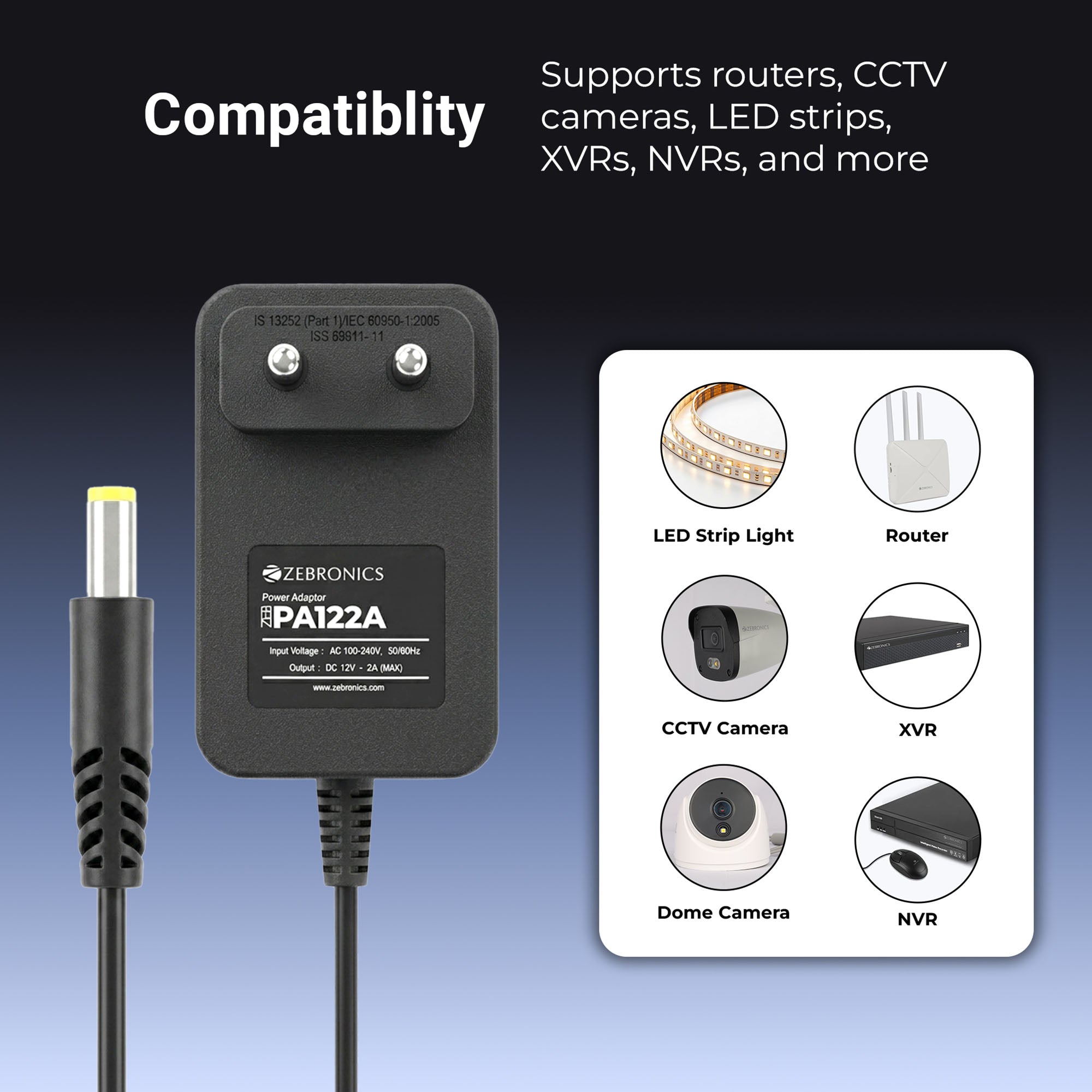

Product Type: CCTV Power Adapter

Specifications


Input Voltage range AC 120V~265V

Input Frequency 50/60 HZ

Input Current 0.25A

Output Voltage 12.2V

Output current
2A (Max.)

Output Power
24W

Ripple <500mv

Hold up Time 10 ms

Turn-on Delay time 30 ms

Rise & Fall time 30 ms

Over Load Protection Yes

Over Voltage Protection Yes

Short circuit Protection Yes

Over Temperature Protection Yes

Operation Temperature 0°C to 45°C

Storage Temperature 0°C to 55°C

Operation Humidity 10% -- 90% non condensing

Storage Humidity
10% -- 90% non condensing

Input of the power supply unit
Indian 2-Pin Plug

Output terminals of the power supply unit
Barrel Pin DC 5525

LED Indicators 1

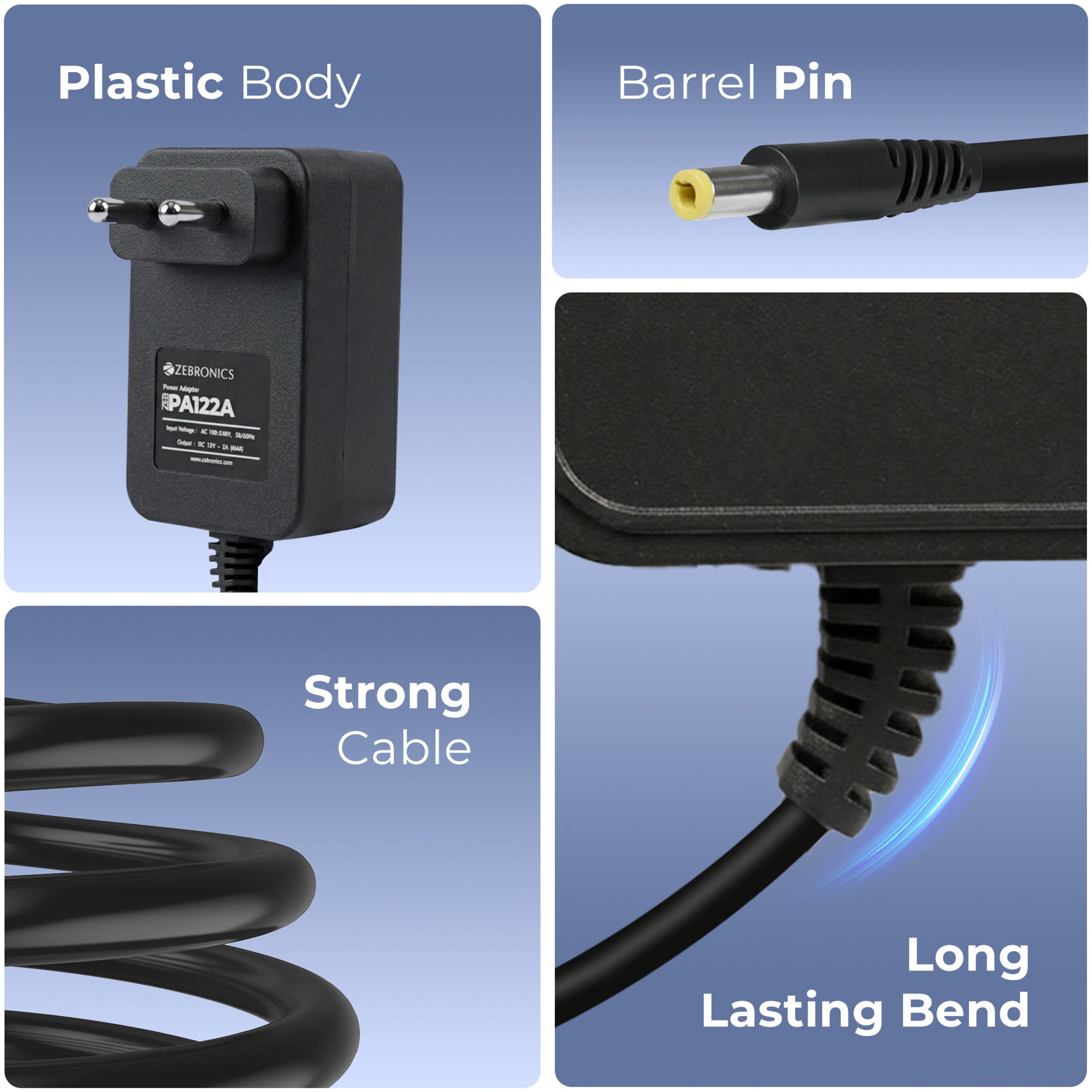

Enclosure Materials Plastic

Weight with power cord 104 g

Dimensions (W x D x H) 4.8 x 6.04 x 8.02 in cm

Country of Origin People's Republic of China

Package Contents

Power Adapter
1U
