Zeb-U1200
Inclusive of all taxes

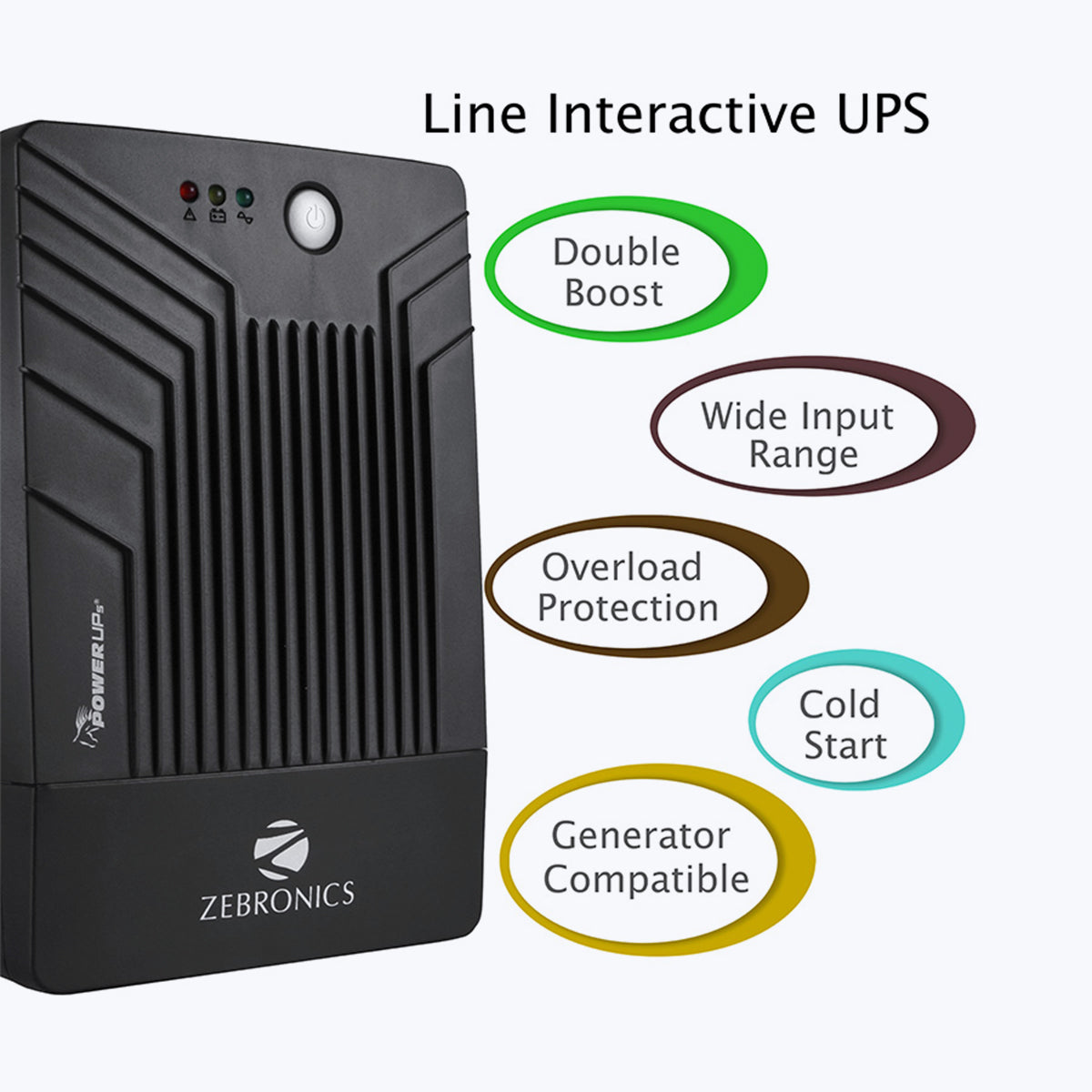

- Line interactive UPS
- Auto restart while AC is recovering
- Double Boost

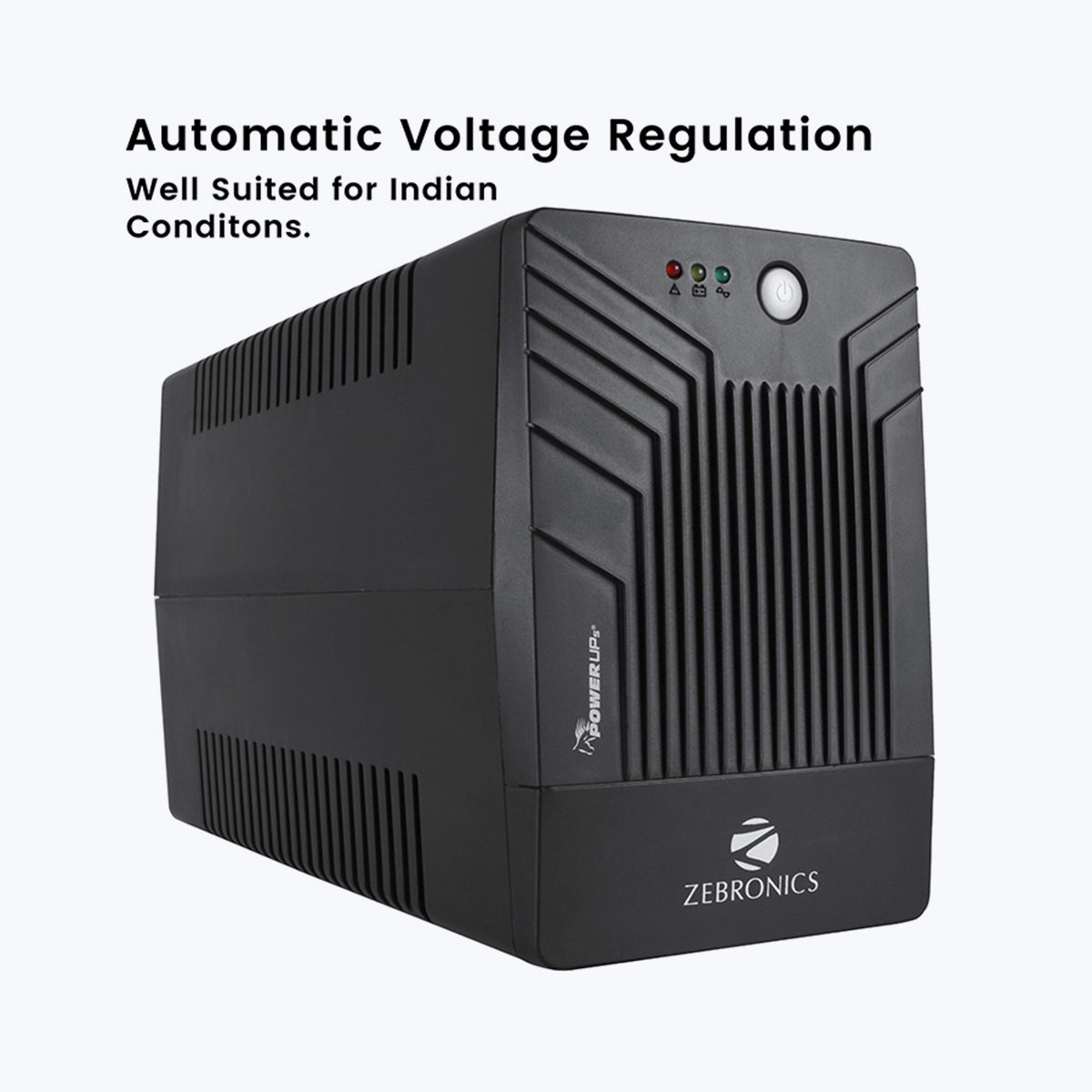

- Automatic Voltage Regulation (AVR)
- Wide Input Range
- Microcontroller Based
- Generator Compatible
Product Type: Line Interactive UPS
Zeb-U1200
Sale price₹ 7,499.00
Features
| Line interactive UPS | |
| Auto restart while AC is recovering |
|
| Double Boost |
|
| Automatic Voltage Regulation (AVR) |
|
| Wide Input Range |
|
| Microcontroller Based | |
| Generator Compatible |
Specifications
| Capacity | ||

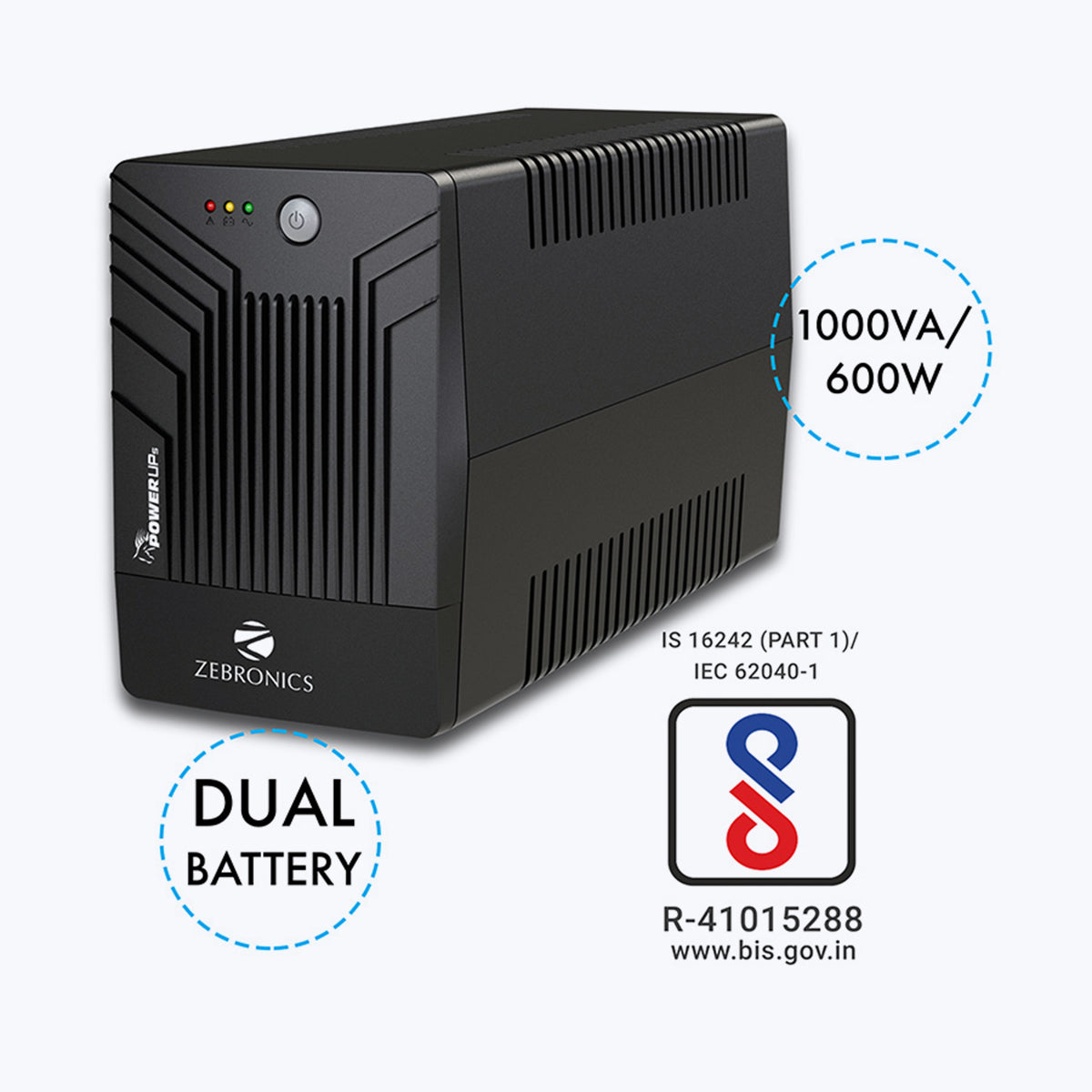

| (VA/W) | 1000VA/600W | |
| Input | ||
| Normal Voltage | 220-240 VAC | |
| Voltage range | 140 - 300VAC | |
| Frequency |
50/60 Hz (Auto Sensing) | |
| Plug Type |
3 Pin Plug | |
| Output | ||
| Voltage Range (AC mode) |
230VAC ± 10 % | |
| Voltage Range (Batt. Mode) |
230VAC ± 10 % | |
| Frequency Range (Batt. Mode) |
50/60Hz ±1% | |
| Transfer Time |
4-8ms | |
| Waveform |
Simulated Sine Wave | |

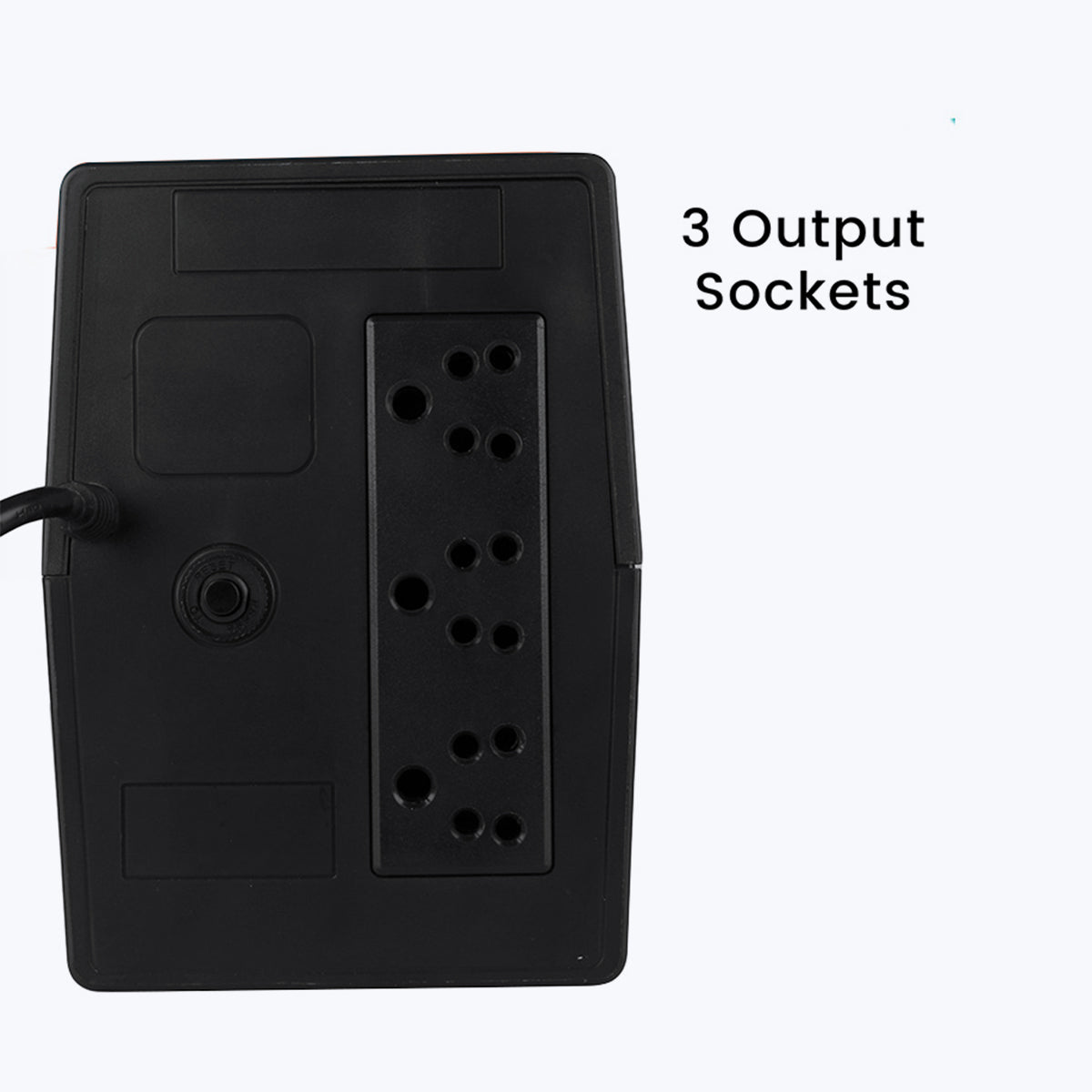

| No. of Output Sockets |
3 | |
| Protections |
Overload, Short Circuit, Over Discharge & Over Charge | |
| Battery | ||
| Battery Type |
12V 7Ah x 2 nos | |
| Charging Current |
1A | |
| Recharge Time |
4-6H to charge 90% (after complete discharge) | |
| Indicators | ||
| No. of LEDs |
3 LED | |
| AC Mode |
Green LED Glows | |
| Battery Mode |
Orange LED Blinks | |
| Fault |
Red LED Glows | |
| Alarm | ||
| Battery mode | Beeping every 10 Seconds | |
| Low battery | Beeping every seconds | |
| Over load | Beeping every 0.5 seconds | |
| Fault |
Continuous Beeping | |
| Physical Details | ||

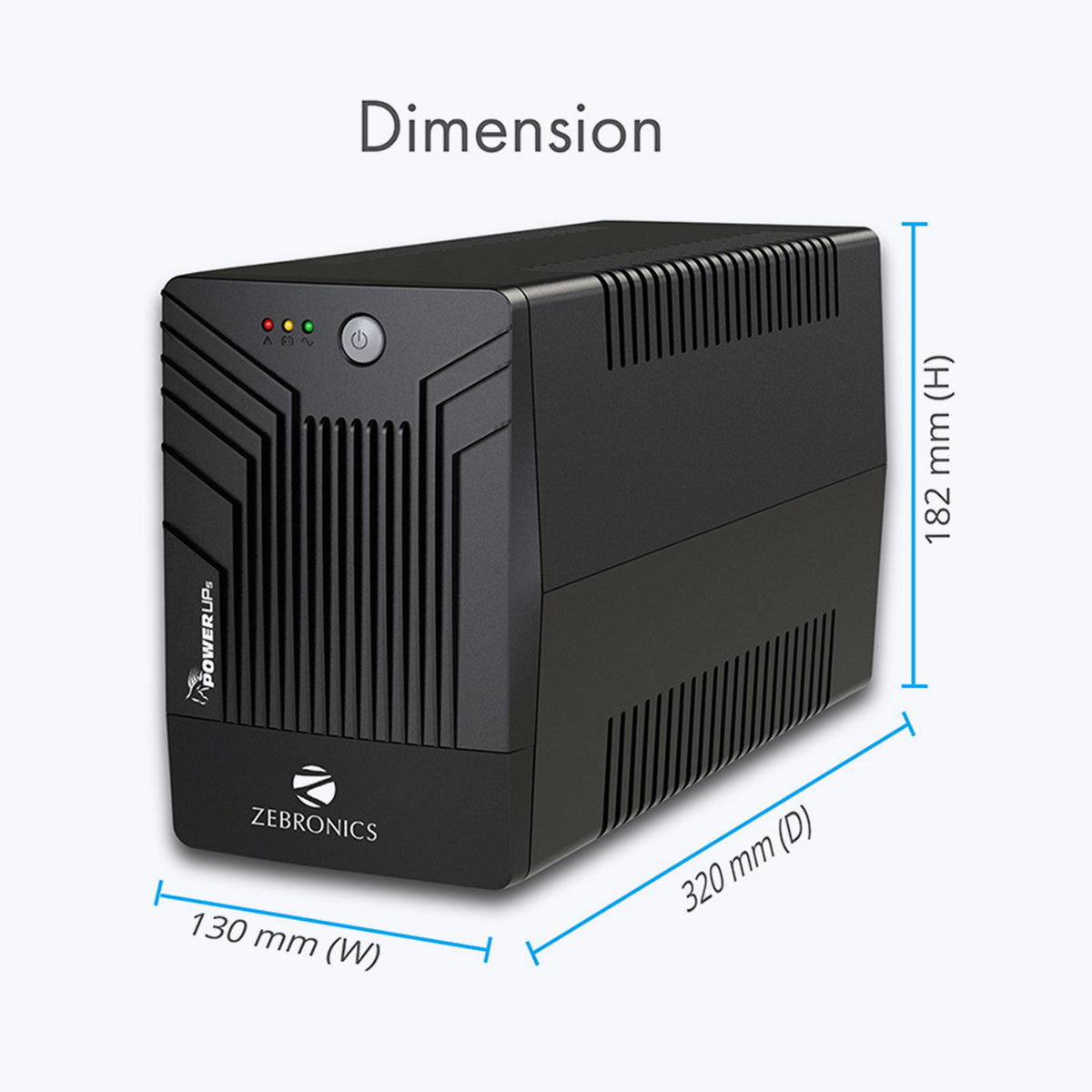

| Product Dimension (W x D x H) |
13 x 31.5 x 18.2 cm | |
| Package Dimension (W x D x H) | 39.5 x 19.5 x 28 cm | |
| Net Weight |
7.3kg | |
| Environmental Factors | ||
| Operational Temperature | 0-40⁰C | |
| Noise level |
< 40dB | |
| Country of Origin | China |
|
| Package Contents | ||
| UPS |
1 U | |
| QR code guide |
1 U |
