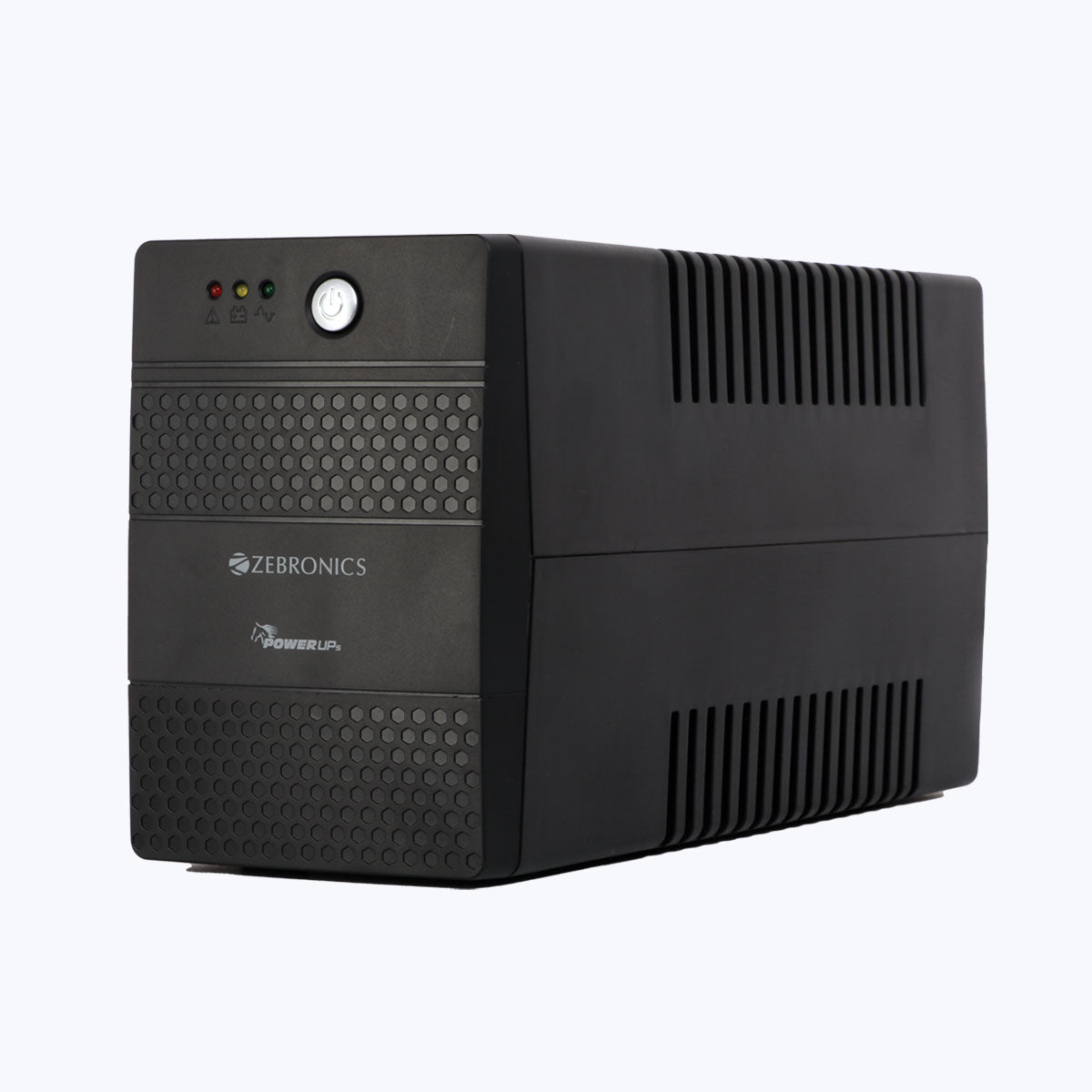

ZEB-U735

Sale price₹ 3,399

  • Line interactive UPS
  • Auto restart while AC is recovering
  • Double Boost
  • Automatic Voltage Regulation (AVR)
  • Wide Input Range

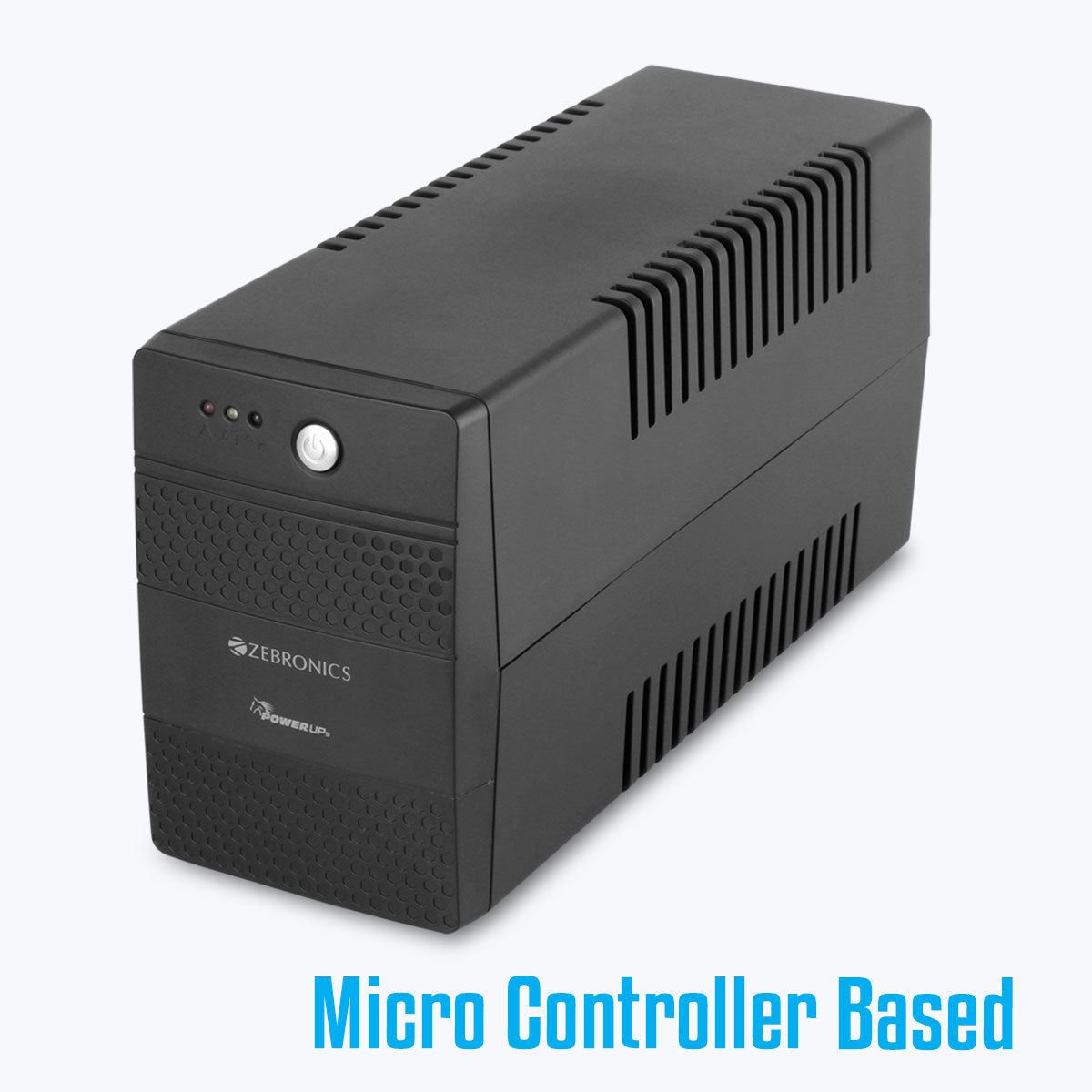

  • Microcontroller Based
  • Generator Compatible
  • No load Auto Shutdown at battery mode
Product Type: Line Interactive UPS

Features


Line interactive UPS

Auto restart while AC is recovering

Double Boost

Automatic Voltage Regulation (AVR)

Wide Input Range

Microcontroller Based

Generator Compatible

No load Auto Shutdown at battery mode

Specifications



Capacity



(VA/W) 600VA/360W


Input



Nominal voltage 220-240 VAC

Voltage range 140-300 VAC

Frequency 50/60 Hz

Plug type 3 Pin plug
Input Protection Internal Fuse


Output



Voltage range (AC mode) 230VAC ± 10 %

Voltage range (Batt. mode) 230VAC ± 10 %

Frequency range (Batt. mode) 50/60Hz ±1%

Transfer time 4-8ms

Waveform Simulated Sine Wave

No. of output sockets 3

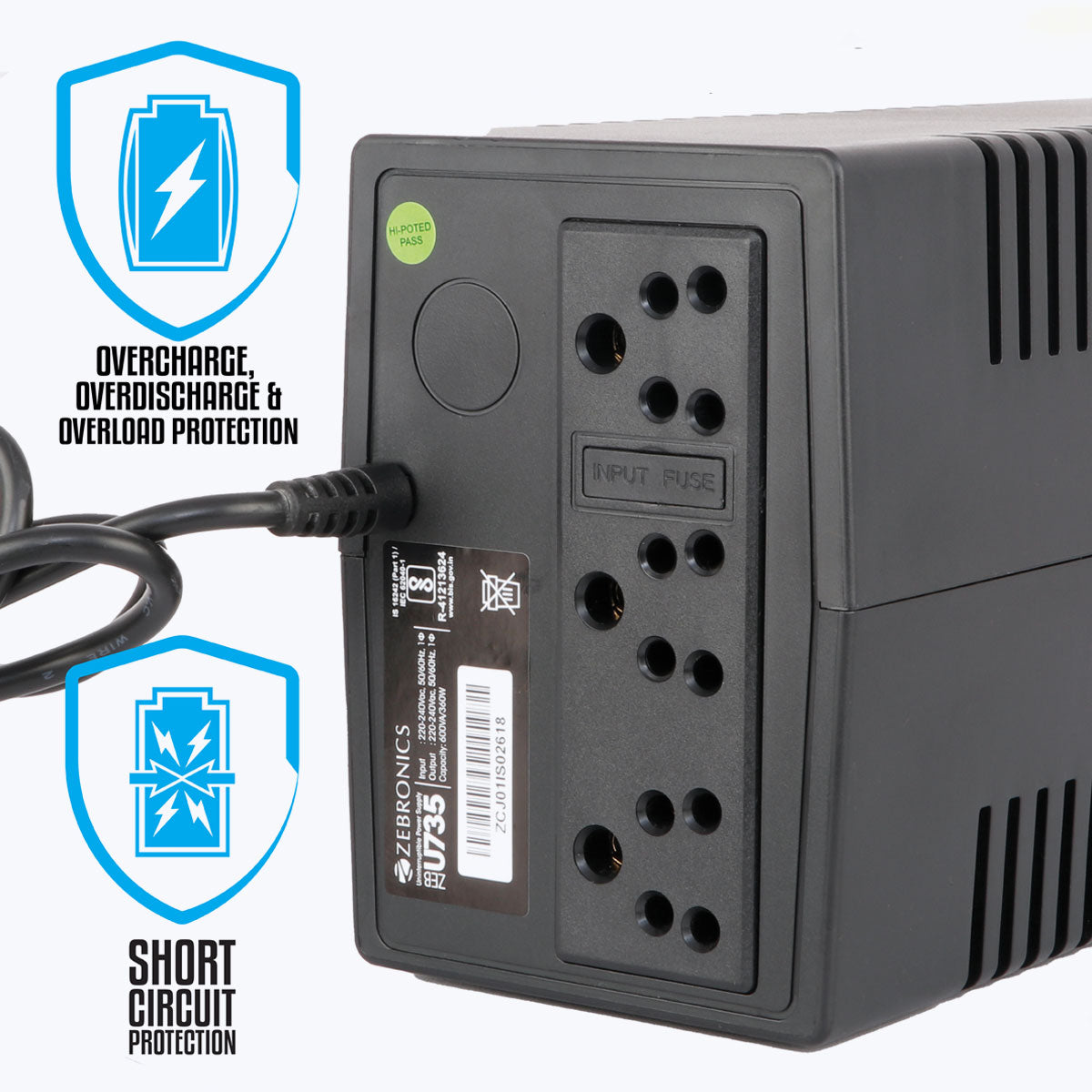

Protections Overload, Short Circuit, Over Discharge & Over Charge


Battery



Battery type 12V 7Ah x 1 nos

Charging current 1A

Recharge time 6-8h to charge 90% (after complete discharge)

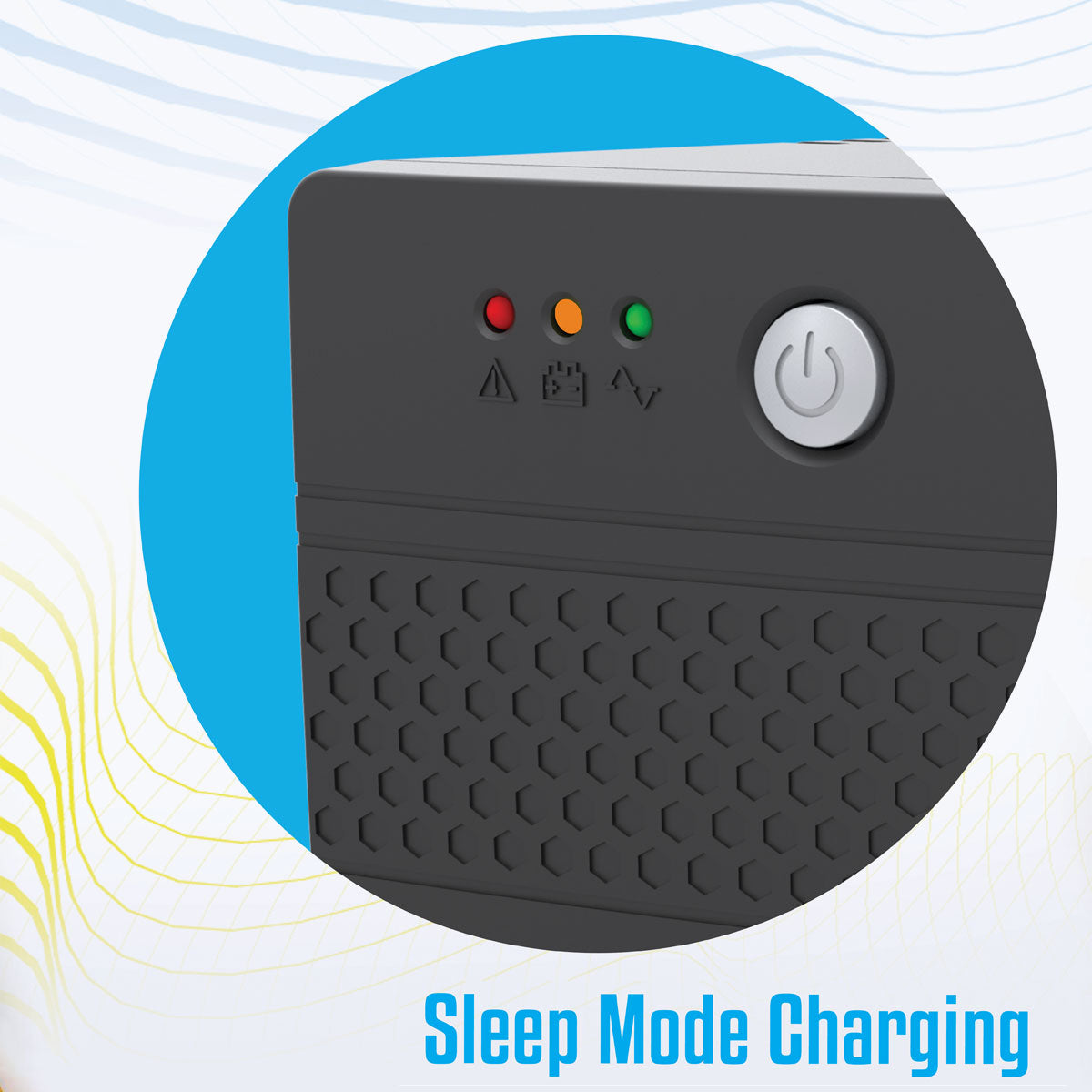

Indicators




No. of LEDs 3 LED

AC mode Green LED Glows

Battery mode Orange LED blinks
Fault mode Red LED Glow


Alarm



Battery mode Beeping every 10 Seconds

Low battery Beeping every 1 Second

Overload Beeping every 0.5 second

Fault Continuous beeping


Physical details


Product dimension (W x D x H) 101 x 280 x 142 mm

Net. weight 3.82 kg

Package dimension (WxDxH 326 x 142 x 213 mm


Environmental factors


Operational temperature 0-40⁰C

Noise level < 45dB




Country of Origin
People's Republic of China
