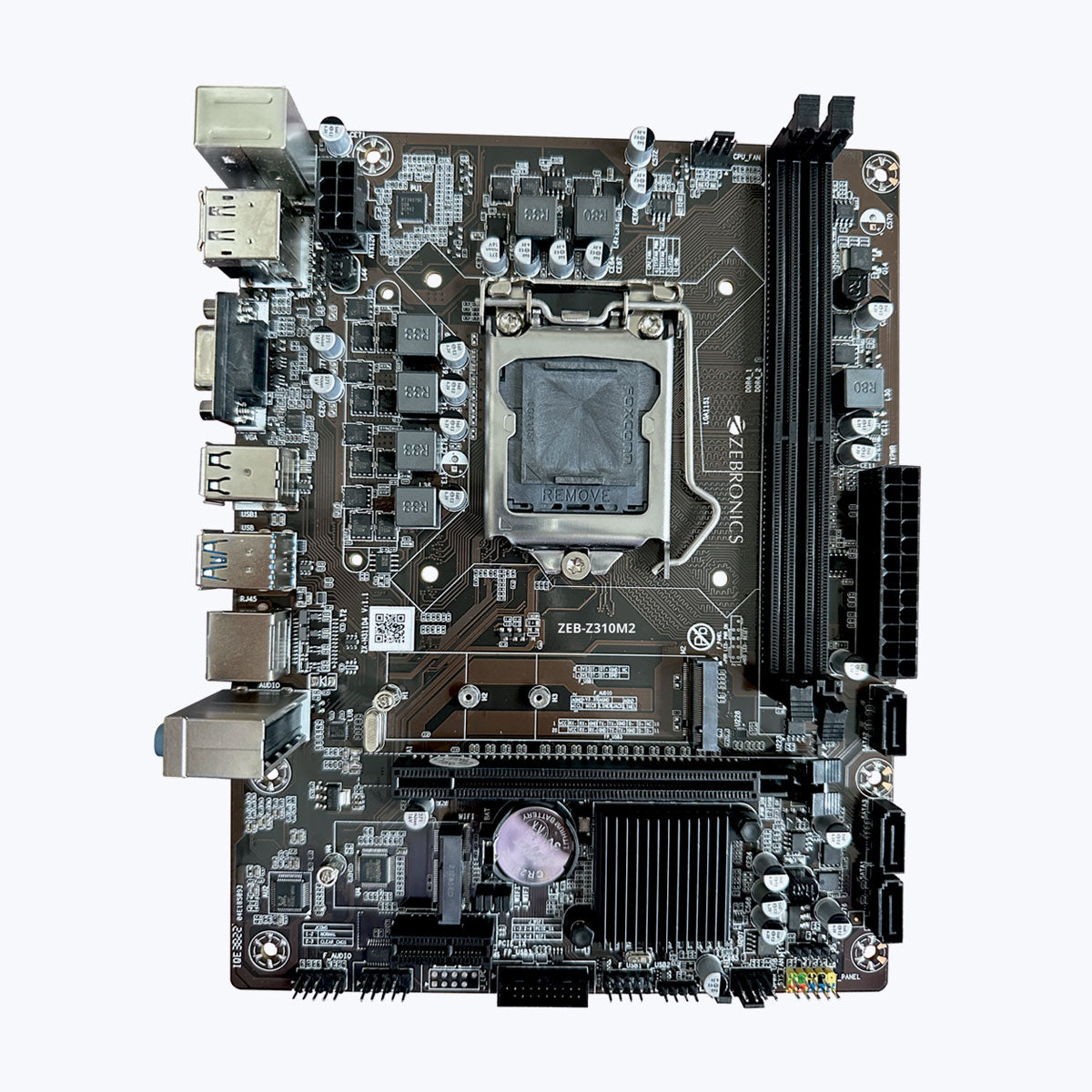

ZEB-Z310M2 - LGA 1151 SOCKET
Product Type: Motherboards
ZEB-Z310M2 - LGA 1151 SOCKET
Sale priceRs. 9,499.00
Regular price (/)
Specifications
| Supported CPU |
Intel i3/i5/i7/Celeron/Pentium 6th,7th,8th & 9th generation series processor in LGA 1151 | |
| Chipset | Intel H110 | |
| Memory Supported | 2 No.s DDR4 DIMM Memory Slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory |
|
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x Display Port , 1 x PS/2 for Keyboard & Mouse |
|
| Onboard Interface |
1 x 24 Pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,1 x Front Panel Connector, 1x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors, 1 x 4 Pin USB 2.0 Connector, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 1x SYS Fan Connector, 3 x SATA 3.0 |
|
| Integrated LAN |
Supports RTL8106E 10/100Mbps Ethernet LAN | |
| Expansion Slot |
1 x PCI Express x16 Slot, 1 x PCI Express x1 Slot, 1 x M.2 Slot, 1 x M.2 for WIFI module | |
| Form Factor |
Micro-ATX | |
| Country of Origin | People's Republic of China | |
|
||
| ZEB-Z310M2 Motherboard |
1U | |
| SATA Cable |
1U | |
| I/O Backplate |
1U | |
| Driver Disc |
1U | |
| User Manual |
1U |
